The CANAMEK Dual Smart Professional Complete Package is designed for operators who need more than a basic laser control system. This package brings together the CANAMEK Dual Smart dual-receiver laser control system, Nedo PRIMUS 3 H2N dual slope laser transmitter, CANAMEK 4 m / 158 in aluminum tripod, PM400 power mast, and double acting hydraulic valve into one professional machine-control solution.

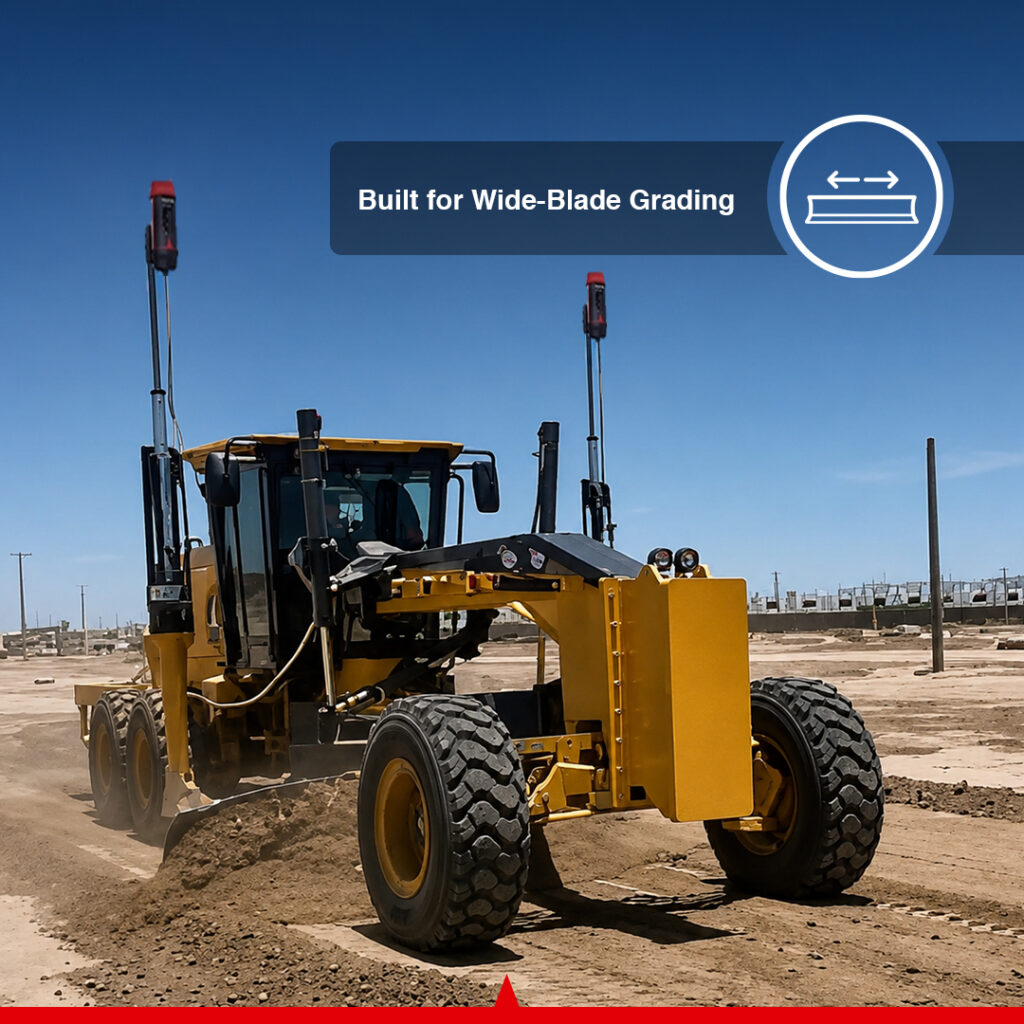

Built for agricultural land leveling, scraper work, drainage grading, trenching, contouring, and construction grading, this dual receiver laser land leveling package gives operators the ability to monitor or control both sides of a blade independently. One MD305-CAN receiver can be mounted on each side of the blade, allowing the system to read left and right blade positions in real time.

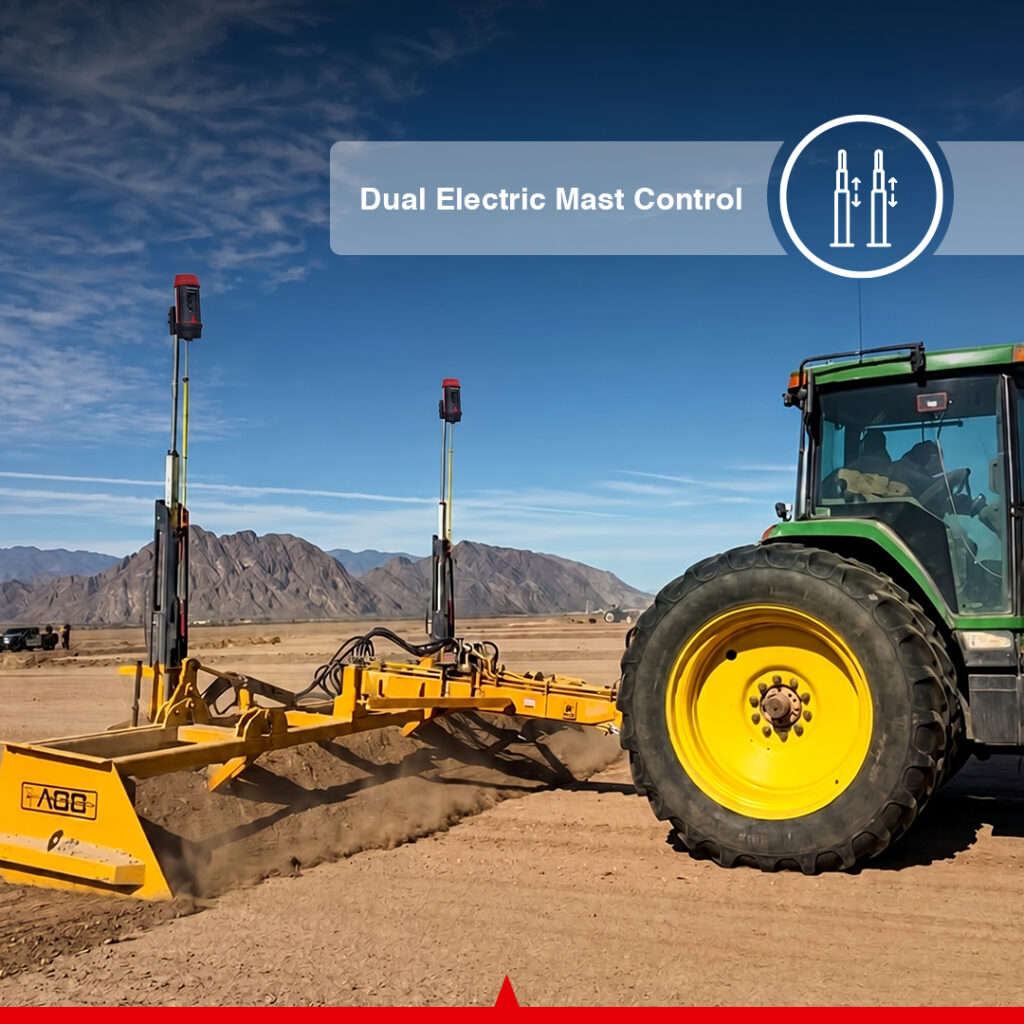

Unlike a single-receiver setup, the CANAMEK Dual Smart system can operate in left-side mode, right-side mode, or dual-side mode. This makes it especially useful for wide blades, land levelers, scrapers, drainage machines, grading attachments, and equipment with separate left and right hydraulic cylinders.
At the center of the package is the CANAMEK Dual Smart laser control system. The system uses two MD305-CAN laser receivers, a DS100-CAN control panel, a JB100-CAN junction box, and an RS100 wired handheld remote. The system communicates through a CAN-based architecture and provides real-time grade indication for both sides of the blade.
The DS100-CAN control panel displays whether each side of the blade is above grade, on grade, or below grade. In Manual Mode, the operator uses the display and receiver indicators for visual guidance. In Automatic Mode, the system can send correction commands to compatible hydraulic valves or machine interfaces to raise or lower the blade automatically.
Selectable accuracy settings allow the operator to match the system to the job. Fine grading can use a tighter ±3 mm / ±0.12 in accuracy band, while rough grading or faster field work can use wider ±9 mm / ±0.35 in or ±14 mm / ±0.55 in settings.
This professional package includes the Nedo PRIMUS 3 H2N Dual Slope Rotary Laser Transmitter. The transmitter creates the laser reference plane used by the Dual Smart receivers. With slope setting across the X and Y axes, the PRIMUS 3 H2N supports professional grading and drainage work where consistent level, single-slope, or dual-slope control is required.
The Nedo PRIMUS 3 H2N provides a working range of 800 m / 2,700 ft diameter with CANAMEK receivers, levelling accuracy of ±0.5 mm at 10 m, and slope function setting of ±15% across the X and Y axes. It also includes IP67 protection, Li-ion rechargeable battery power, up to 40 hours of operation, and a 5/8 in connecting thread.
The PM400 Power Mast adds receiver-height control to the package. It includes the MA400 shaft, MB400 control box, and shock mount for the PM400-CAN power mast. With a 1000 mm / 39.37 in stroke and ±1 mm / ±0.04 in accuracy, the PM400 allows controlled receiver positioning for grading, elevation adjustment, and survey-related operation.
The PM400 is built with a steel body and aluminum parts, uses a digital measurement system, and operates on a 10–24 V DC power range.
The package includes a double acting hydraulic valve assembly for compatible machine-control applications. The valve package includes two CS-G02-C6-D1-N directional valves, a double manifold D03, a plated steel manifold mounting bracket kit, and a bolt kit for two G02 valves.
The valve assembly supports machine integration where automatic hydraulic blade correction is required. It is suitable for compatible land levelers, scrapers, grading blades, and hydraulic implements that need controlled raise and lower functions.
The CANAMEK Dual Smart Professional Complete Package is suitable for contractors, growers, drainage professionals, and earthmoving operators who need accurate dual-point grade control. It is especially useful where one side of the blade cannot represent the full working width of the implement.
Common applications include agricultural land leveling, farm drainage, scraper control, roadbed grading, building pad preparation, trenching, irrigation channel construction, drainage ditch construction, contouring, and relative elevation surveying.
Yes. When connected to compatible hydraulic valves or machine-control interfaces, the CANAMEK Dual Smart system can automatically raise and lower the blade based on the laser receiver positions. It can also be used in Manual Mode as a visual grade guidance system.

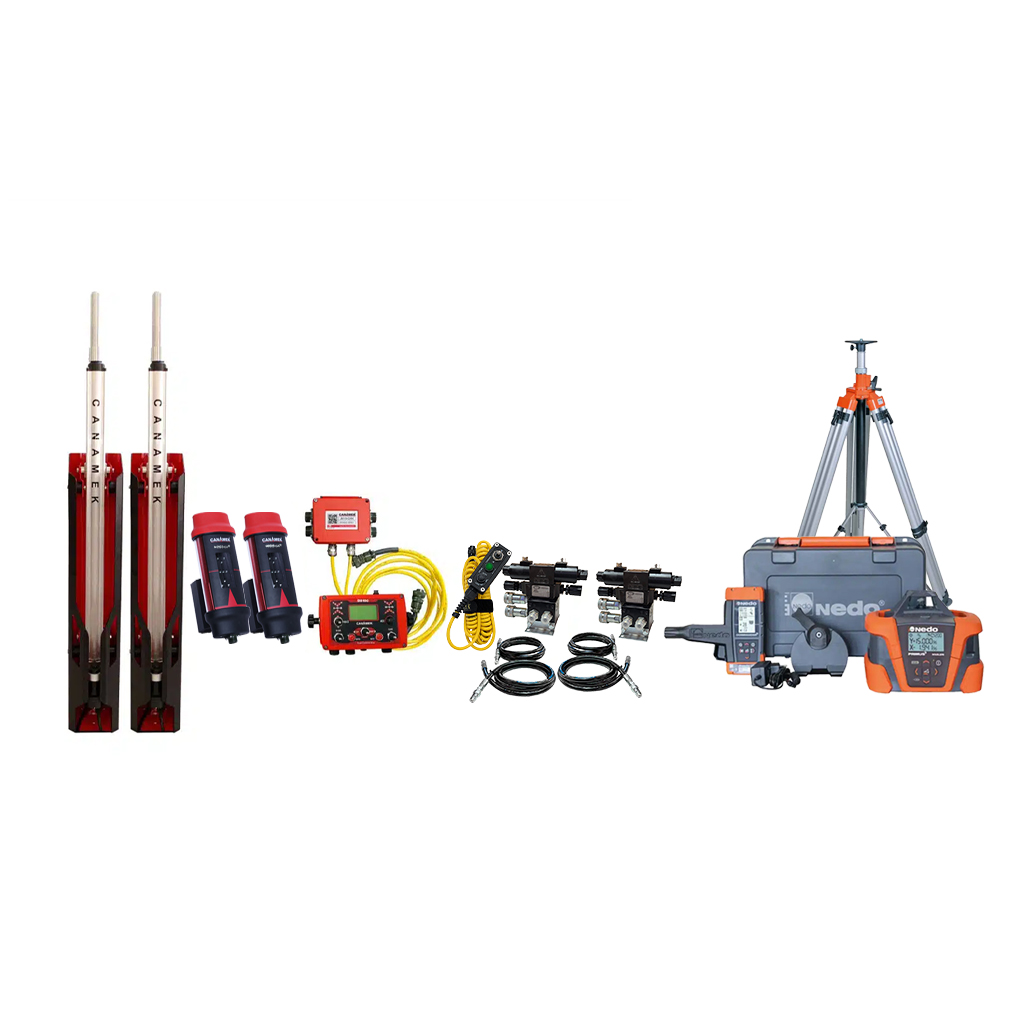

The package includes the CANAMEK Dual Smart laser control system, two MD305-CAN receivers, DS100-CAN control panel, JB100-CAN junction box, RS100 wired handheld remote, Nedo PRIMUS 3 H2N dual slope laser transmitter, CANAMEK 4 m / 158 in aluminum tripod, PM400 power mast, and double acting hydraulic valve.
Two laser receivers allow the system to monitor or control two blade points at the same time. This is important for wide blades, land levelers, scrapers, and machines with separate left and right hydraulic cylinders.
Yes. The operator can select left-side operation, right-side operation, or simultaneous dual-side operation.
The CANAMEK Dual Smart system provides selectable accuracy settings of ±3 mm / ±0.12 in, ±9 mm / ±0.35 in, and ±14 mm / ±0.55 in.
Yes. This package includes the Nedo PRIMUS 3 H2N Dual Slope Rotary Laser Transmitter.
The listed working range diameter is 800 m / 2,700 ft with CANAMEK receivers.
Yes. The included PM400 power mast allows controlled receiver-height adjustment. The PM400 has a 1000 mm / 39.37 in stroke and ±1 mm / ±0.04 in accuracy.
The system can be configured for agricultural land levelers, scrapers, drainage machines, tile plows, trenchers, grading attachments, and compatible earthmoving machines.
Yes. The Dual Smart control system supports 9–36 V DC machine power input, making it suitable for common 12 V and 24 V agricultural and construction machines. The PM400 power mast uses a 10–24 V DC voltage range.
Yes. The Nedo PRIMUS 3 H2N supports slope setting of ±15% across the X and Y axes, making the package suitable for level, single-slope, and dual-slope grading applications.
Yes. The package includes a double acting hydraulic valve assembly with two CS-G02-C6-D1-N directional valves, a D03 double manifold, mounting bracket kit, and bolt kit.
| Choose | Core System | Professional Package + Power Mast |
| Component | Included Item |
|---|---|
| Laser Control System | CANAMEK Dual Smart Laser Land Leveling Control System |
| Laser Receivers | 2 × MD305-CAN laser receivers |
| Control Panel | 1 × DS100-CAN control panel |
| Junction Box | 1 × JB100-CAN junction box |
| Handheld Remote | RS100 wired handheld remote |
| Laser Transmitter | Nedo PRIMUS 3 H2N Dual Slope Rotary Laser Transmitter |
| Tripod | CANAMEK 4 m / 158 in Aluminum Tripod |
| Power Mast | Power Mast PM400 |
| Hydraulic Valve | Double Acting Hydraulic Valve |
| Valve Components | 2 × CS-G02-C6-D1-N directional valves, D03 double manifold, mounting bracket kit, bolt kit |
| Package Warranty | 2-Year Free Warranty |
| Support | After-Sales Support, 7 Days a Week |
| Country of Manufacture | Made in Canada for CANAMEK system components |
| Specification | Technical Details |
|---|---|
| Product Name | CANAMEK Dual Smart - Laser Land Leveling Control System |
| System Type | Dual-receiver laser machine control and automatic grade control system |
| Primary Applications | Land leveling, grading, drainage, contouring, earthmoving, and surveying |
| Control Architecture | CAN-based modular architecture |
| Laser Receivers | 2 × MD305-CAN |
| Control Panel | 1 × DS100-CAN |
| Junction Box | 1 × JB100-CAN |
| Handheld Remote | RS100 wired handheld remote |
| Active-Side Selection | Left, Right, or Dual |
| Operating Modes | Manual, Automatic, and Survey |
| Laser Reference | Level, single-slope, or dual-slope depending on transmitter |
| Laser Wavelength Compatibility | Red, infrared, and green rotary-laser beams |
| Selectable Accuracy | ±3 mm / ±0.12 in; ±9 mm / ±0.35 in; ±14 mm / ±0.55 in |
| Green-Band Shift | Approximately 4 mm / 0.16 in per adjustment increment |
| Grade Indication | Above Grade, On Grade, and Below Grade |
| Laser Reception | 360° |
| Receiver Detection Positions | 8 positions per receiver |
| Machine Power Input | 9–36 V DC |
| Operating Temperature | −20°C to +60°C / −4°F to +140°F |
| Display Units | Millimeters and inches |
| Mast Configurations | Manual, electric, or hydraulic |
| Electric Mast Capacity | Up to 2 compatible electric masts |
| Hydraulic Mast Capacity | Up to 2 compatible hydraulic mast interfaces |
| Supported Valve Types | On/Off, proportional, electric actuator, and compatible machine-specific interfaces |
| After-Sales Support | 7 days a week |
| Specification | Technical Details |
|---|---|
| Model | DS100-CAN |
| Component Type | Dual-channel laser machine control panel |
| Input Voltage | 9–36 V DC |
| Environmental Protection | IP65 |
| Display | Backlit LCD |
| Display Channels | Independent left and right receiver displays |
| Side Selection | Left, Right, or Dual |
| Operating Modes | Manual, Automatic, and Survey |
| Accuracy Settings | ±3 mm / ±0.12 in; ±9 mm / ±0.35 in; ±14 mm / ±0.55 in |
| Receiver Capacity | 2 MD305-CAN receivers |
| Electric Mast Capacity | Up to 2 compatible electric masts |
| Hydraulic Mast Capacity | Up to 2 compatible hydraulic interfaces |
| Blade Raise-Speed Adjustment | 20–100 |
| Blade Lower-Speed Adjustment | 20–100 |
| Adjustment Range | 80 increments |
| Hydraulic Response Profiles | Slow, Moderate, Fast, and Maximum |
| Measurement Units | Millimeters and inches |
| Reverse-Polarity Protection | Included |
| Short-Circuit Protection | Included |
| Receiver Connection Monitoring | Included |
| Communication Error Display | Included |
| Internal Buzzer | User-selectable On/Off |
| Software-Version Display | Included |
| Serial-Number Display | Included |
| Active-Time Counter | Included |
| Inactive-Time Counter | Included |
| Factory Reset | Included |
| Technical Menu | Six-digit password protection |
| Component Assignment | Left/right receiver and mast learning |
| Survey Control Channel | Right-side channel |
| Junction-Box Connection | Dedicated data and power links |
| RS100 Interface | Wired handheld remote connection |
| Specification | Technical Details |
|---|---|
| Model | MD305-CAN |
| Quantity | 2 |
| Component Type | Smart CAN laser machine receiver |
| Laser Reception | 360° |
| Laser Detection Positions | 8 |
| Selectable Accuracy | ±3 mm / ±0.12 in; ±9 mm / ±0.35 in; ±14 mm / ±0.55 in |
| Electronic Green-Band Shift | Approximately 4 mm / 0.16 in per increment |
| Above-Grade Indicator | Red LEDs |
| On-Grade Indicator | Green LEDs |
| Below-Grade Indicator | Yellow LEDs |
| Lost-Laser Indication | Flashing LEDs indicate the last detected position |
| Environmental Protection | IP68 |
| Communication | CAN data communication |
| Supported Operation | Manual and Automatic control |
| Mounting | Mechanical receiver clamp |
| Cable Connection | Dedicated coiled CAN data cable |
| Receiver Dimensions | Not specified in supplied product reference |
| Receiver Weight | Not specified in supplied product reference |
| Specification | Technical Details |
|---|---|
| Model | JB100-CAN |
| Component Type | CAN junction and distribution box |
| Primary Function | Distributes communication and connections between system components |
| Receiver Capacity | 2 receivers |
| Blade-Control Channels | Independent left and right channels |
| Mast Connections | Electric or hydraulic, depending on configuration |
| Control-Panel Links | Dedicated data and power connections |
| Receiver Connections | Dedicated left and right connections |
| Communication | CAN network |
| Environmental Protection | Not specified in supplied product reference |
| Input and Output Connector Types | Configuration-specific industrial connectors |
| Specification | Technical Details |
|---|---|
| Model | RS100 |
| Component Type | Wired handheld machine-control remote |
| Connection Type | Direct cable connection |
| Cable Type | Flexible coiled cable |
| Blade Raise Control | Included |
| Blade Lower Control | Included |
| Automatic Mode Control | Included |
| Manual Mode Control | Included |
| Wireless Communication | Not used |
| Separate Remote Battery | Not required |
| Housing | Industrial handheld enclosure |
| Primary Purpose | Convenient blade and operating-mode control |
| Specification | Technical Details |
|---|---|
| Manual Hydraulic Operation | Operator-controlled using visual grade guidance |
| Automatic Hydraulic Operation | Receiver-based correction through compatible valves |
| Independent Blade Control | Left and right channels |
| Dual-Side Operation | Simultaneous independent control |
| On/Off Valve Support | Supported |
| Proportional Valve Support | Configuration-dependent |
| Electric Actuator Support | Optional |
| Machine-Specific Valve Interfaces | Configuration-dependent |
| Blade Raise-Speed Range | 20–100 |
| Blade Lower-Speed Range | 20–100 |
| Speed Adjustment Range | 80 increments |
| Additional Response Profiles | Slow, Moderate, Fast, and Maximum |
| Valve-Control Voltage | Configuration-dependent |
| Hydraulic Pressure Range | Not specified in supplied product reference |
| Specification | Technical Details |
|---|---|
| Product Name | Nedo PRIMUS 3 H2N Dual Slope Rotary Laser Transmitter |
| Product Type | Fully automatic dual slope rotary laser transmitter |
| Laser Receiver / Remote | COMMANDER 3 multi-function module with mm display |
| Mounting Clamp | Heavy-duty aluminum rod clamp with MagFix magnetic fastener |
| Quick Release System | Quick-Fix 2 system |
| Power Supply | High-energy density Li-ion rechargeable battery and compatible charger |
| Storage | Rugged transport case |
| Levelling Accuracy | ±0.5 mm / 10 m |
| Self-Levelling Range | Approx. ±8.5°, motor-powered with automatic level control |
| Working Range Diameter | 800 m / 2,700 ft with CANAMEK receivers |
| Laser Output Options | <5 mW, laser class 3R, 635 nm OR <1 mW, laser class 2, 635 nm |
| Slope Function Setting | ±15% across X and Y axes |
| Slope Function Accuracy | Better than ±0.015% |
| Rotating Speed | Adjustable at 600 rpm, 900 rpm, or 1200 rpm |
| Radio Remote Working Range | Up to 150 m / 492 ft |
| AutoAlign Working Range | Up to 150 m / 492 ft |
| Protection Class | IP67 water and dust resistant |
| Operation Duration | Up to 40 hours continuous use |
| Connecting Thread | 5/8 in |
| Specification | Technical Details |
|---|---|
| Product Name | CANAMEK 4 m Aluminum Tripod |
| Material | Aluminum |
| Tripod Type | Elevating tripod |
| Construction | Heavy-duty with support strut leg |
| Retracted Length | 65.5 in / 166.4 cm |
| Maximum Extension Height | 157.5 in / 400.1 cm |
| Thread | 5/8 × 11 in |
| Dimensions | 67.7 × 9.8 × 9.8 in / 172 × 25 × 25 cm |
| Weight | 24.7 lb / 11.2 kg |
| Specification | Technical Details |
|---|---|
| Product Name | Power Mast PM400 |
| Package Components | MA400 shaft, MB400 control box, shock mount |
| Body Construction | Steel body with aluminum parts |
| Measurement System | Digital measurement system |
| Voltage Range | 10–24 V DC |
| Stroke | 1000 mm / 39.37 in |
| Accuracy | ±1 mm / ±0.04 in |
| Operating Temperature | −20°C to +60°C / −4°F to +140°F |
| Country of Manufacture | Made in Canada |
| Specification | Technical Details |
|---|---|
| Product Name | Double Acting Hydraulic Valve |
| Valve Package Components | 2 × CS-G02-C6-D1-N directional valves |
| Manifold | Double Manifold – D03 |
| Mounting Hardware | Manifold mounting bracket kit, plated steel |
| Bolt Kit | Bolt kit for G02 valve × 2 pcs |
| Hose Option | With Quick-Connect Hoses or Without Quick-Connect Hoses |
| Wet Tubes | Included |
| Quiet Surgeless Operation | Included |
| Manual Override | Included |
| Moisture-Proof Construction | Included |
| LED Indication | Included |
| Hydraulic Flow / Pressure | Not specified in supplied product reference |
| Electrical Voltage | Not specified in supplied product reference |
The CANAMEK Dual Smart Professional Complete Package is built for agricultural land leveling where consistent surface grade is required for better irrigation control, field drainage, and crop-zone uniformity.
Use the system to create controlled surface drainage grades across agricultural fields. The dual-receiver setup helps operators manage blade position across wider working widths.
This package is suitable for scrapers, ejector scrapers, box blades, and land levelers that require accurate grade control. The left, right, and dual-side operation modes allow better control on wide blades and dual-cylinder implements.
The package can support drainage tile installation, trenching, and ditch work where working depth and slope must be controlled using a rotary laser reference.
For irrigation channels and water-management work, the dual slope laser transmitter and automatic blade-control capability help operators maintain planned grade lines more consistently.
The system can be used for access roads, roadbeds, subgrades, building pads, and general earthmoving where a repeatable finished grade is required.
Selectable accuracy settings allow the operator to use tighter grade control for fine grading and a wider band for rougher conditions or faster machine movement.
With a compatible level, single-slope, or dual-slope laser reference, the package can be used for contouring, sloped fields, drainage channels, and grading work that requires controlled surface fall.
When used with the electric mast configuration, Survey Mode can help compare high and low points against a selected reference location.
Be the first to review this product.
Every unit ships with everything needed to put it to work in under an hour.
Get sizing help and tech answers from a real human, in <2 min.
Call +1 (855) CANAMEKTell us your acreage and crop, get a turnkey estimate in 24 hours.
Email sales →
Write a review
