15% OFF on this bundle

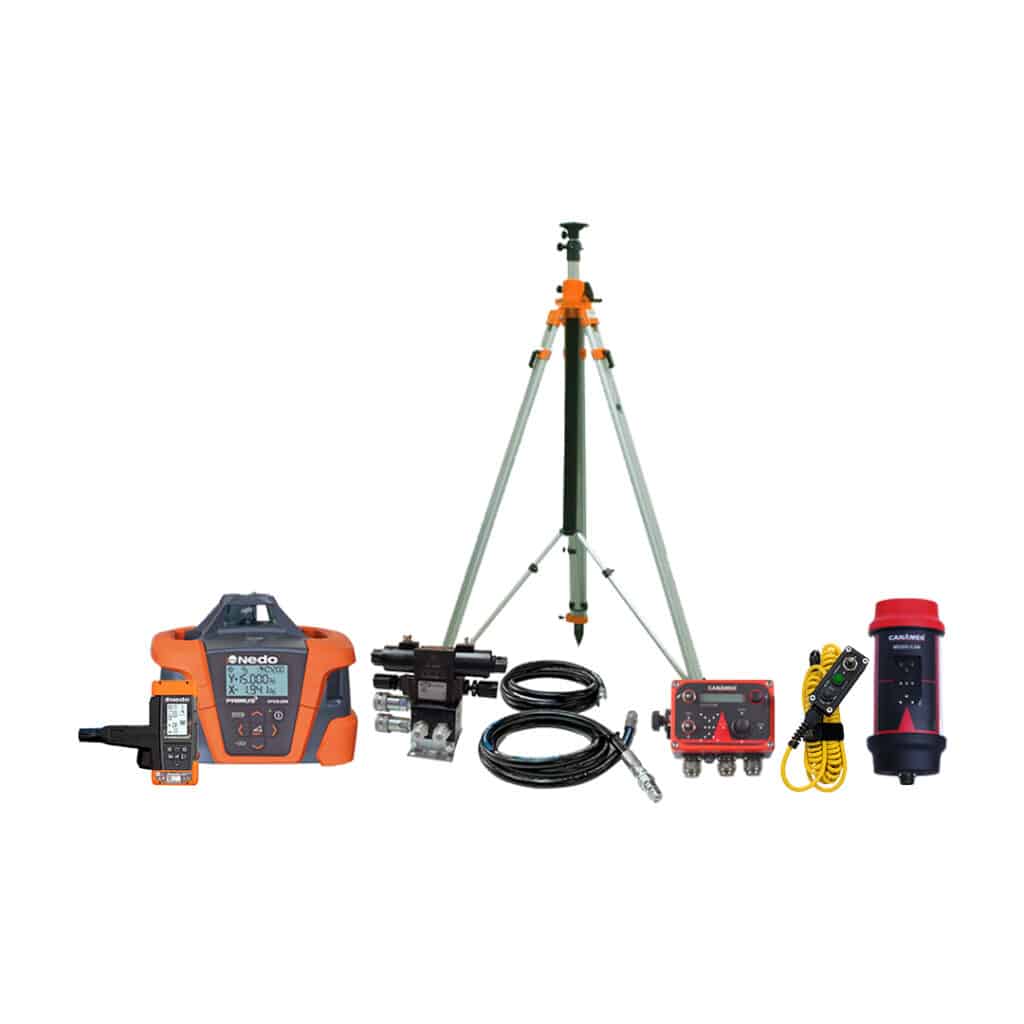

This Package includes:
Laser Transmitter
Laser Receiver
Control Box
Tripod for Laser transmitter
Quick connect Valve block and hoses
2 Year Warranty 7 Days a Week After-Sales ServiceLand leveling is a crucial process for farmers to ensure that their fields are prepared for optimal water distribution, uniform irrigation, and increased crop yield. For those who are new to land leveling, it might sound complicated, but with the right tools, it becomes a manageable and highly beneficial task. The Laser Land Leveling Complete Starter Package is designed to help you achieve the desired surface, no matter your experience level.
Land leveling is the process of adjusting the surface of the land to a uniform grade using specialized equipment. This ensures that water can flow evenly across the field, minimizing waterlogging and improving irrigation efficiency. By leveling the land, farmers can reduce water wastage, avoid erosion, and ensure better plant growth.
Laser land leveling uses advanced technology to achieve precision leveling. Traditional methods of leveling land rely on human labor and often result in uneven surfaces. With laser land leveling, you can achieve highly accurate, automated leveling that guarantees better crop yield and water efficiency. It saves time, reduces the need for manual labor, and is cost-effective in the long run.
To start with laser land leveling, you need a complete setup that includes several essential components. These components work together to achieve a perfectly leveled surface for your crops. The Laser Land Leveling Complete Starter Package provides everything you need to get started:
Laser Transmitter
Laser Receiver
Control Box
Tripod for Laser Transmitter
Quick Connect Valve Block and Hoses
Each component has a specific role in the leveling process, ensuring that you can achieve the best results for your field. Let’s break down each of these components and their functions.
The Laser Transmitter is the main device that projects a laser beam across the field, providing a reference for leveling. The Nedo PRIMUS 2 H2N+ Laser Transmitter is an advanced tool that allows you to level/give slope the land automatically and with high precision. Here are some key features:
Fully Automatic Dual Slope Laser: This feature allows for automatic leveling along both axes (X and Y), adjusting the slope as needed for the terrain.
Motor-Powered Levelling: The transmitter automatically adjusts to the desired grade, ensuring consistent accuracy.
Slope Function Accuracy of ± 0.015%: This guarantees highly precise grading, even in challenging environments.
Large & Clear Display: The easy-to-read display shows key information such as inclination, rotation speed, and battery level.
Highly Visible Laser Beam: The laser beam can be clearly seen even from a distance, making it easier to align with your equipment.
Durability: The device is built to withstand harsh environmental conditions, with protection against dust, water, and damage from rough handling.
The Laser Transmitter plays a crucial role in sending out the laser signal, which is detected by the Laser Receiver. Without this device, you wouldn’t be able to get the precise measurements needed to level the land.
The Laser Receiver is responsible for detecting the laser beam from the transmitter and ensuring that the equipment or machinery is at the correct elevation. The CANAMEK-Gold-CAN Laser Control System offers several important features that make it compatible with almost all machine types:
Accuracies: 0.11 / 0.35 / 0.55 in (3 / 9 / 14 mm): You can choose the level of accuracy based on your needs, ranging from basic to highly detailed measurements.
LED Display: The display is easily readable, even in direct sunlight or at night, making it highly practical for all weather conditions.
Automatic, Manual, and Survey Modes: These modes provide flexibility for different types of land leveling work.
Wide Temperature Range: Wide Temperature Range: It operates in temperatures from –4°F to 140°F (–20°C to 60°C), ensuring that it works in various climates.
The Laser Receiver helps ensure that your equipment is aligned to the exact level as indicated by the laser transmitter. It communicates directly with the control box to adjust the machinery accordingly.
The Control Box acts as the interface between the laser receiver and the rest of the machinery. The CP210-CAN Control Box is specifically designed to connect the laser receiver to your leveling equipment. Some key features include:
Selectable Accuracies: You can adjust the accuracy settings to suit your needs.
Water-Resistant: With an IP66 rating, this control box is protected against dust and water, ensuring that it operates reliably in tough conditions.
Remote Switch Connectivity: This feature allows you to control the system remotely, increasing convenience and reducing the need for manual intervention.
Error Messages: If there’s no connection between the receiver and control box, an error message will alert you to the issue.
The Control Box is essential for ensuring that the leveling equipment receives accurate data from the laser receiver and adjusts accordingly.

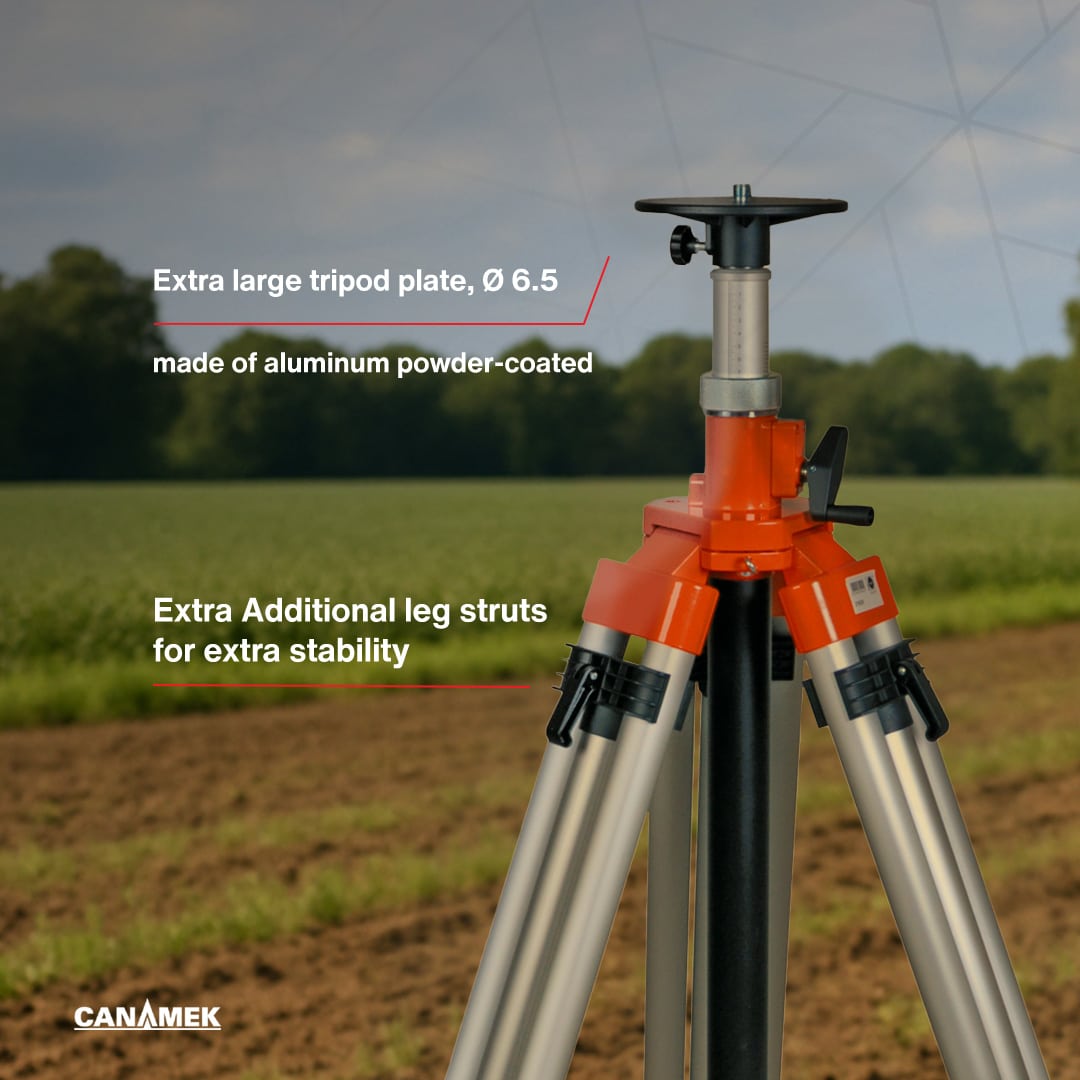

A Tripod is required to securely position the laser transmitter at the right height and orientation. The Elevating Tripod for Lasers is designed for heavy-duty use, ensuring that your laser transmitter stays stable throughout the leveling process. Key features include:
Reinforced Indirect Gear Unit: This feature makes it easier to handle the tripod and reduces wear and tear.
Double Telescopic Column: Provides a wide working range for different applications.
Strong Aluminum Construction: The tripod is built to last, with strong aluminum legs and an aluminum head
Additional Leg Struts: These provide Extra stability even on wind
The Tripod for Laser Transmitter ensures that your laser transmitter remains stable and correctly positioned throughout the leveling process.
The Quick Connect Valve Block and Hoses ensure that you can quickly connect and disconnect the various components of your leveling system. This setup includes high-quality hoses and valves that are easy to attach, saving time and ensuring that you can make quick adjustments when needed.
The Laser Land Leveling Complete Starter Package is a perfect solution for farmers looking to begin laser land leveling. It includes everything you need to get started, from the high-precision Laser Transmitter and Laser Receiver to the Control Box, Tripod, and Quick Connect Valve Block and Hoses. These components work together seamlessly to provide you with an efficient, cost-effective solution for leveling your land with precision.
Whether you are a beginner or an experienced farmer, this starter package is designed to simplify the land leveling process, ensuring that your fields are perfectly graded for optimal irrigation and crop yield. With features like self-levelling, and highly accurate measurements, you can be confident in the results.
Start your journey to more efficient land leveling today with the Laser Land Leveling Complete Starter Package.
It is a laser leveling package combining the CANAMEK Gold-CAN machine-control system with the Nedo PRIMUS 3 H2N dual slope rotary laser transmitter. The transmitter establishes the reference plane, and Gold-CAN provides visual grade guidance or automatic blade raise/lower control on compatible machinery.
The starter package adds the Nedo PRIMUS 3 H2N transmitter kit, a transmitter tripod and quick-connect valve block with hoses to the Gold-CAN control platform. This supplies the laser reference equipment as well as the machine-control electronics.
The package includes a CP210-CAN control box, MD205-CAN machine receiver, system cables and control-kit carry case; a Nedo PRIMUS 3 H2N laser with COMMANDER 3, rod clamp, Quick-Fix 2, rechargeable battery, charger and transport case; a transmitter tripod; and a quick-connect valve block with hoses. A compatible machine, grading implement and suitable hydraulic installation are required for grading.
They perform different jobs. MD205-CAN is mounted on the machine and sends grade information to the CP210-CAN. COMMANDER 3 is a handheld digital receiver and radio remote used for the Nedo transmitter, axis setup and independent elevation checks.
No. The PM400-CAN is an optional addition to this starter configuration. It provides powered receiver-height adjustment and is required for Gold-CAN Survey mode.
Yes. With a compatible hydraulic solenoid valve installation, the CP210-CAN uses the MD205-CAN signal to raise or lower the blade relative to the laser plane. The operator continues to control machine travel and material handling.
Yes. Manual mode provides above-grade, on-grade and below-grade indications while the operator controls the machine hydraulics. It can be used during setup or whenever direct blade control is preferred.
Yes. The PRIMUS 3 H2N supports a horizontal reference and slopes in one or two axes. X- and Y-axis settings extend to ±15%, with three decimal places available for percentage entry.
No. Dual slope describes the X- and Y-axis inclination of the transmitter’s reference plane. This Gold-CAN configuration uses one machine receiver for blade elevation control; it does not provide independent left- and right-side blade control.
Gold-CAN provides selectable control settings of ±0.12 in / ±3 mm, ±0.35 in / ±9 mm and ±0.55 in / ±14 mm. These are control tolerance settings, not a guarantee of final surface accuracy. The finished result also depends on setup, hydraulics, mounting, travel speed, soil and machine conditions.
Nedo specifies leveling accuracy of ±0.02 in at 32.8 ft / ±0.5 mm at 10 m and slope function accuracy of ±0.015%. These transmitter specifications are separate from the Gold-CAN control settings and COMMANDER 3 receiver accuracy bands.
Nedo specifies an approximate working diameter of 2,297 ft / 700 m with COMMANDER 3. CANAMEK publishes an approximate working diameter of 2,700 ft / 800 m with CANAMEK receivers. The COMMANDER 3 radio remote range is up to 492 ft / 150 m. Receiver type, visibility and site conditions affect usable coverage.
AutoTarget aligns the Y-slope axis with COMMANDER 3, and FindX helps locate the corresponding X-axis. PlaneLock uses COMMANDER 3 to monitor the laser plane at a selected slope; in the manufacturer’s described arrangement, the other axis remains horizontal.
Yes. The MD205-CAN receives the beam through 360 degrees, but the laser still needs an unobstructed optical path to the receiver. Terrain, equipment and other obstacles can interrupt reception.
It is intended for compatible scrapers, land levelers and blade-controlled grading equipment. Installation depends on the machine’s electrical supply, hydraulic valve interface, receiver mounting and cable routing. The machine configuration should be checked before selecting the installation components.
Automatic mode requires compatible on/off solenoid valves controlling blade raising and lowering. The valve interface, pressure, flow, couplers and mounting must suit the machine. Gold-CAN provides independent raise and lower response adjustment from 20 to 100.
The CP210-CAN and MD205-CAN support 12–24 V DC. The documented hydraulic valve output is 12 V DC, so a 24 V machine supply does not by itself establish compatibility with a particular solenoid valve. The optional PM400-CAN mast supports 10–24 V DC.
The PRIMUS 3 H2N uses an included rechargeable Li-ion battery and charger, with operation for up to 40 hours. COMMANDER 3 uses two 1.5 V AA batteries and is rated for up to 80 hours. Actual runtime depends on operating conditions and battery state.
The CP210-CAN control box is rated IP66, the MD205-CAN machine receiver is rated IP68, and both the PRIMUS 3 H2N transmitter and COMMANDER 3 are rated IP67. Each component should be operated and maintained according to its own instructions.
COMMANDER 3 supports handheld elevation checks relative to the laser plane. Gold-CAN Survey mode requires the optional PM400-CAN electric mast and provides relative elevation assessment against a selected reference point.
No. COMMANDER 3 controls the Nedo laser transmitter and serves as a handheld receiver. The separate optional RS100-CAN wired remote connects to the CP210-CAN for blade up/down commands and Manual/Automatic mode selection.
The documented grading workflow uses the included rotating laser transmitter as its reference and does not require a GNSS base station. The MD205-CAN detects that laser plane and supplies grade information to the machine controller.
The package includes a 2-year warranty and CANAMEK after-sales support seven days a week.
The CANAMEK Gold-CAN control system is made in Canada. The Nedo PRIMUS 3 H2N laser transmitter is made in Germany.
| Choose | Starter Package | Professional Complete Package |
| Specification | Details |
|---|---|
| Product | Laser Land Leveling Complete Starter Package |
| CANAMEK product SKU | CNMK-LLL-1028 |
| Core machine-control system | CANAMEK Gold-CAN |
| Control box | CP210-CAN |
| Machine receiver | MD205-CAN |
| Laser transmitter | Nedo PRIMUS 3 H2N |
| Handheld laser receiver / transmitter remote | COMMANDER 3 |
| Reference geometry | Horizontal, single-slope or dual-slope laser plane |
| Machine-control modes | Manual and Automatic; Survey with optional PM400-CAN electric mast |
| Automatic blade functions | Raise and lower through compatible hydraulic solenoid valves |
| Machine communication | CAN bus |
| Setup and connection equipment | Transmitter tripod, quick-connect valve block, hydraulic hoses and system cables |
| CANAMEK control-system manufacture | Canada |
| Nedo transmitter manufacture | Germany |
| Warranty | 2 years |
| After-sales support | 7 days a week |
| Specification | Details |
|---|---|
| Instrument type | Fully automatic dual slope rotary laser |
| Laser color / wavelength | Red / 635 nm |

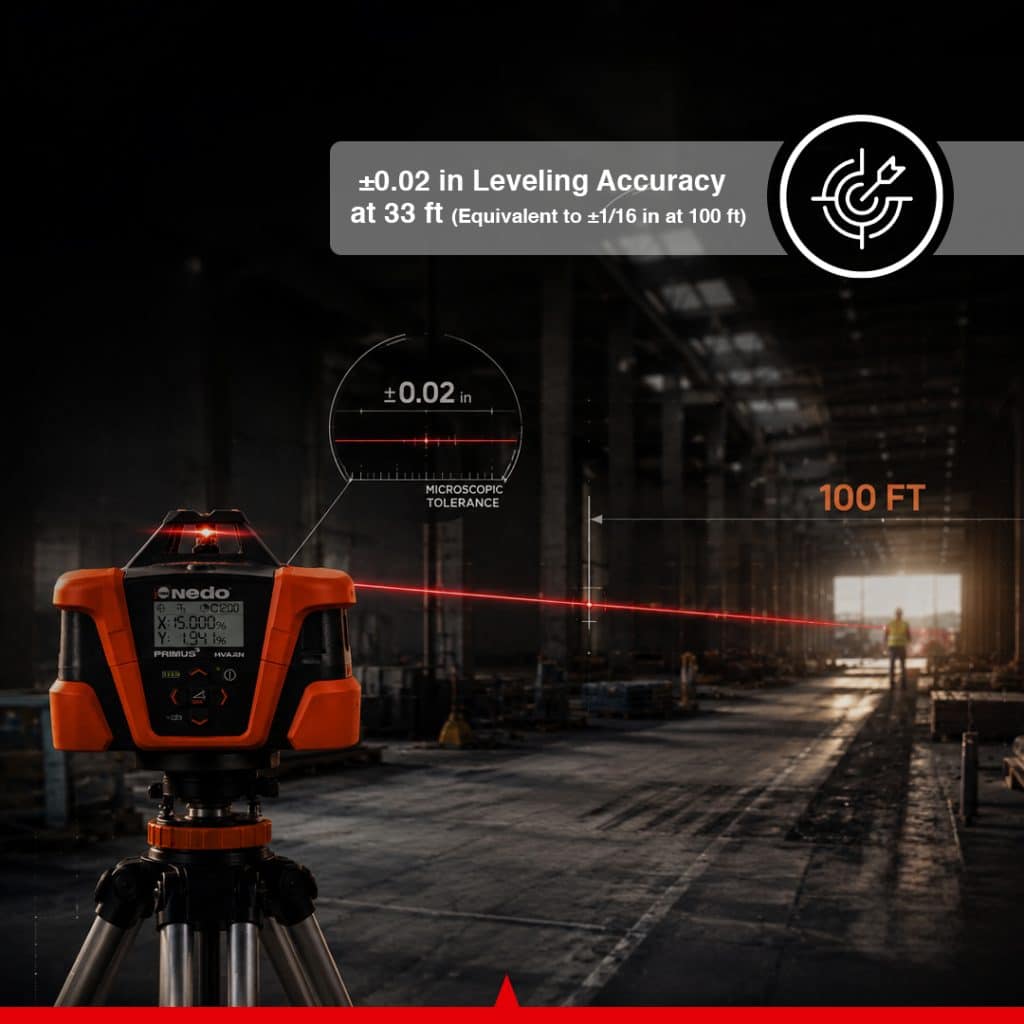

| Leveling accuracy | ±0.02 in at 32.8 ft / ±0.5 mm at 10 m |

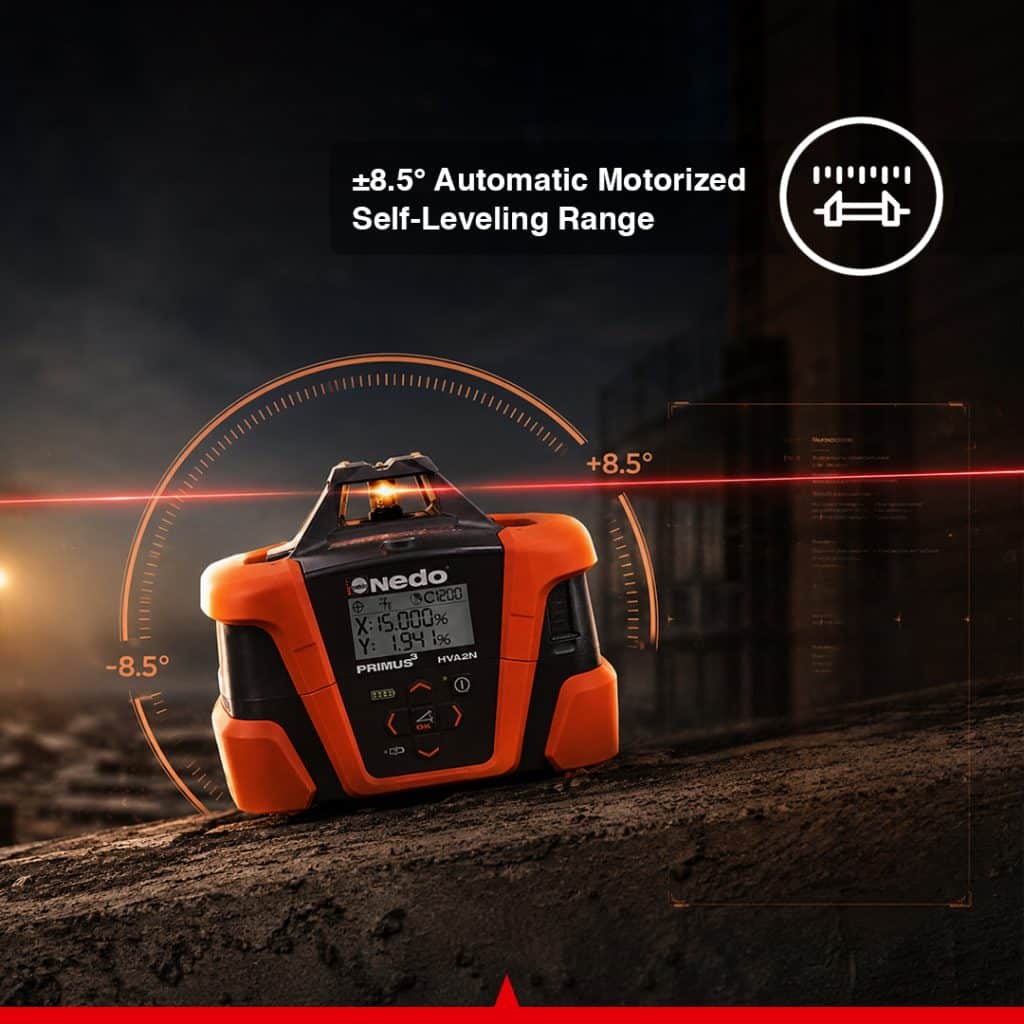

| Self-leveling range | Approximately ±8.5°, motor-powered |

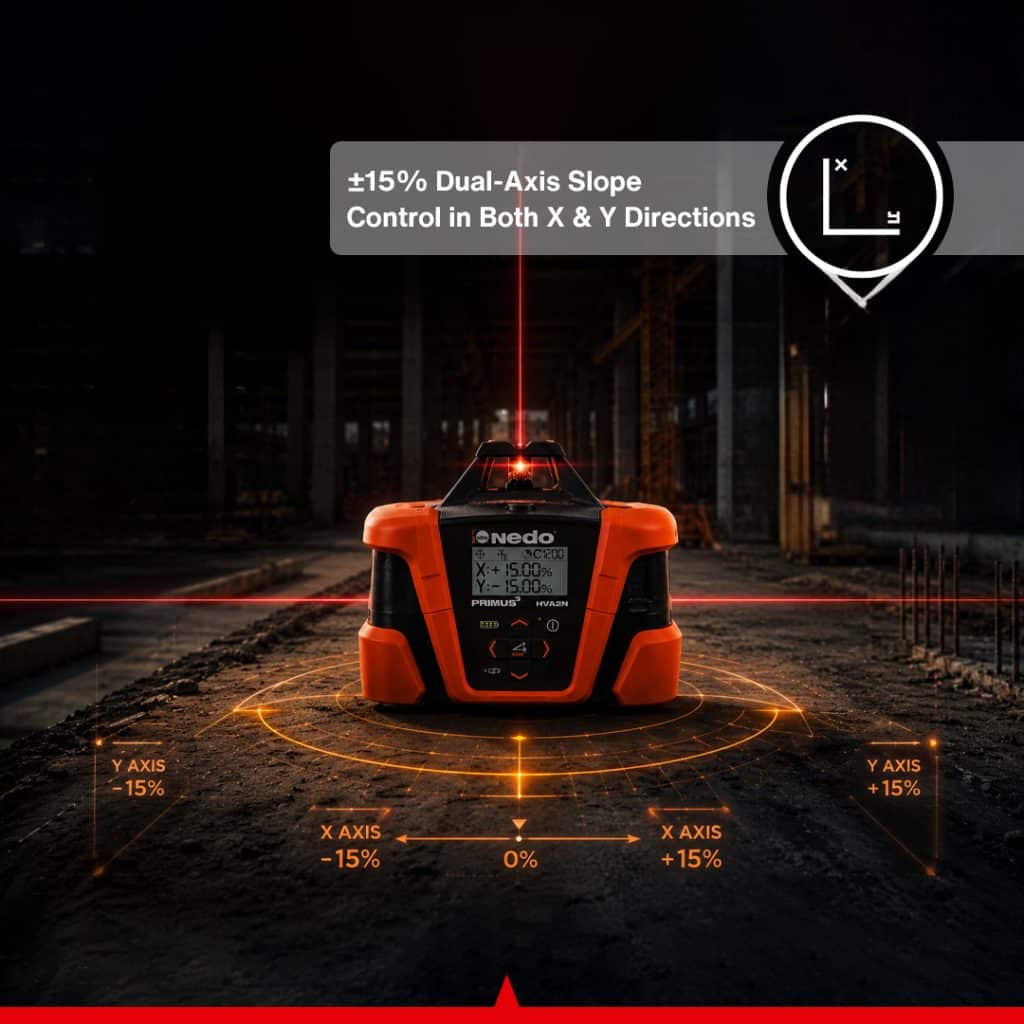

| Slope setting | Up to ±15% on X and Y axes; simultaneous inclination supported |
| Slope entry | Percentage entry with 3 decimal places |

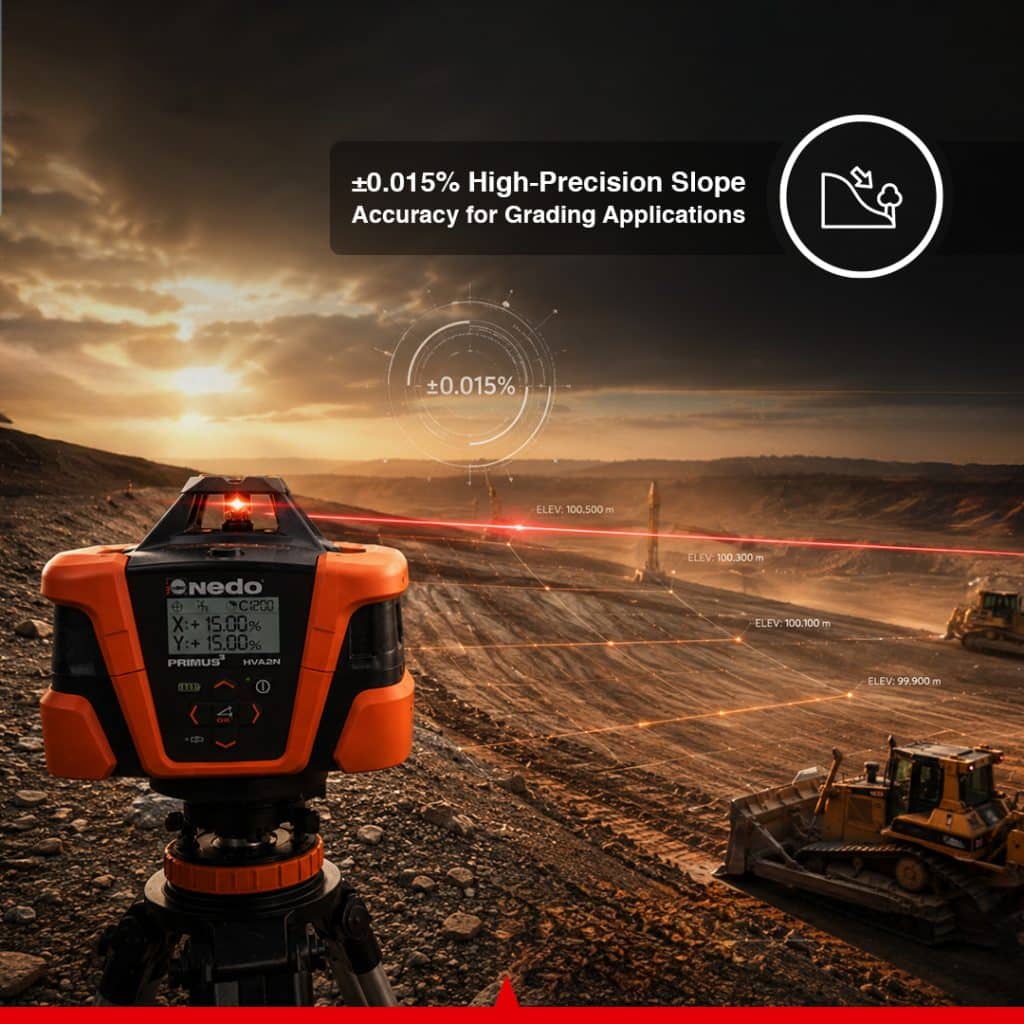

| Slope function accuracy | ±0.015% according to Nedo's model-specific technical data |
| Slope memory | Entered slope values retained after switch-off |

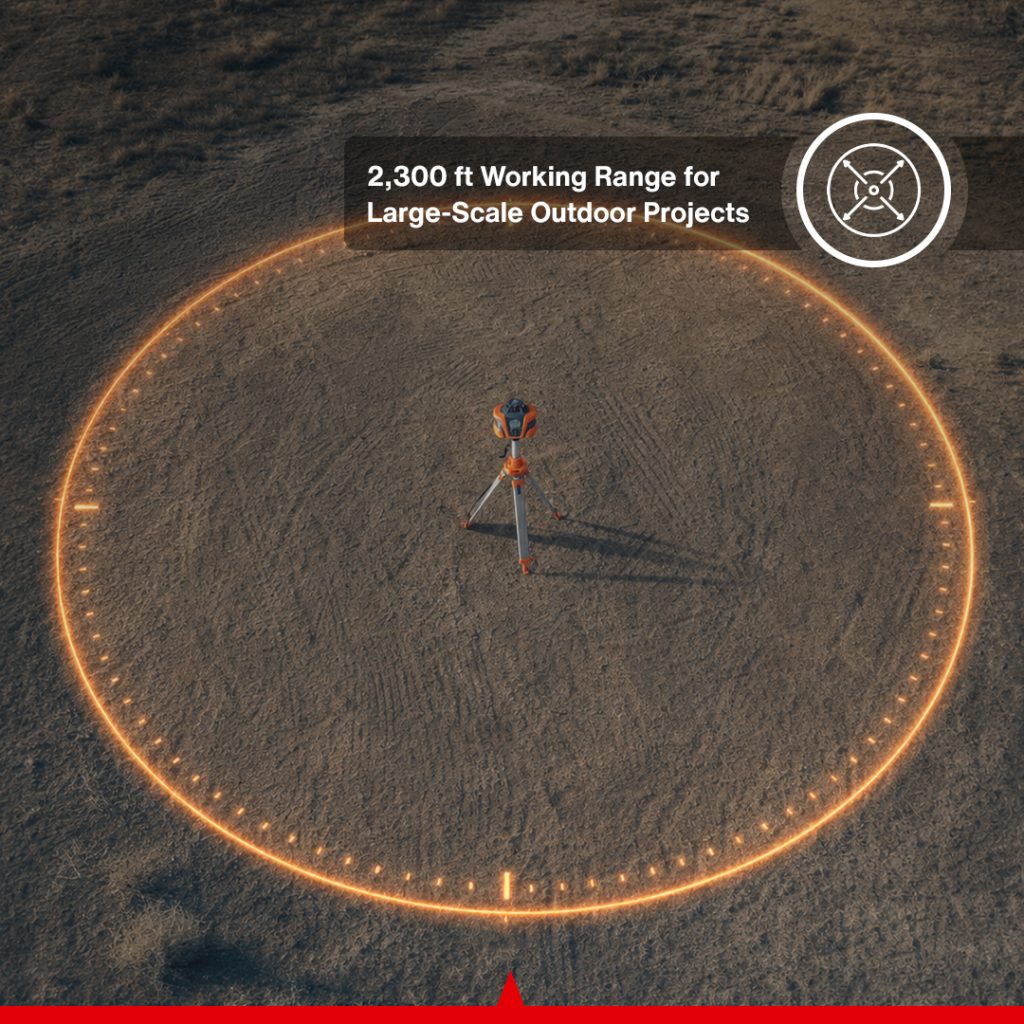

| Working diameter with COMMANDER 3 | Approximately 2,297 ft / 700 m |
| Working diameter with CANAMEK receivers | Approximately 2,700 ft / 800 m, as published by CANAMEK |
| Radio remote range | Up to 492 ft / 150 m |

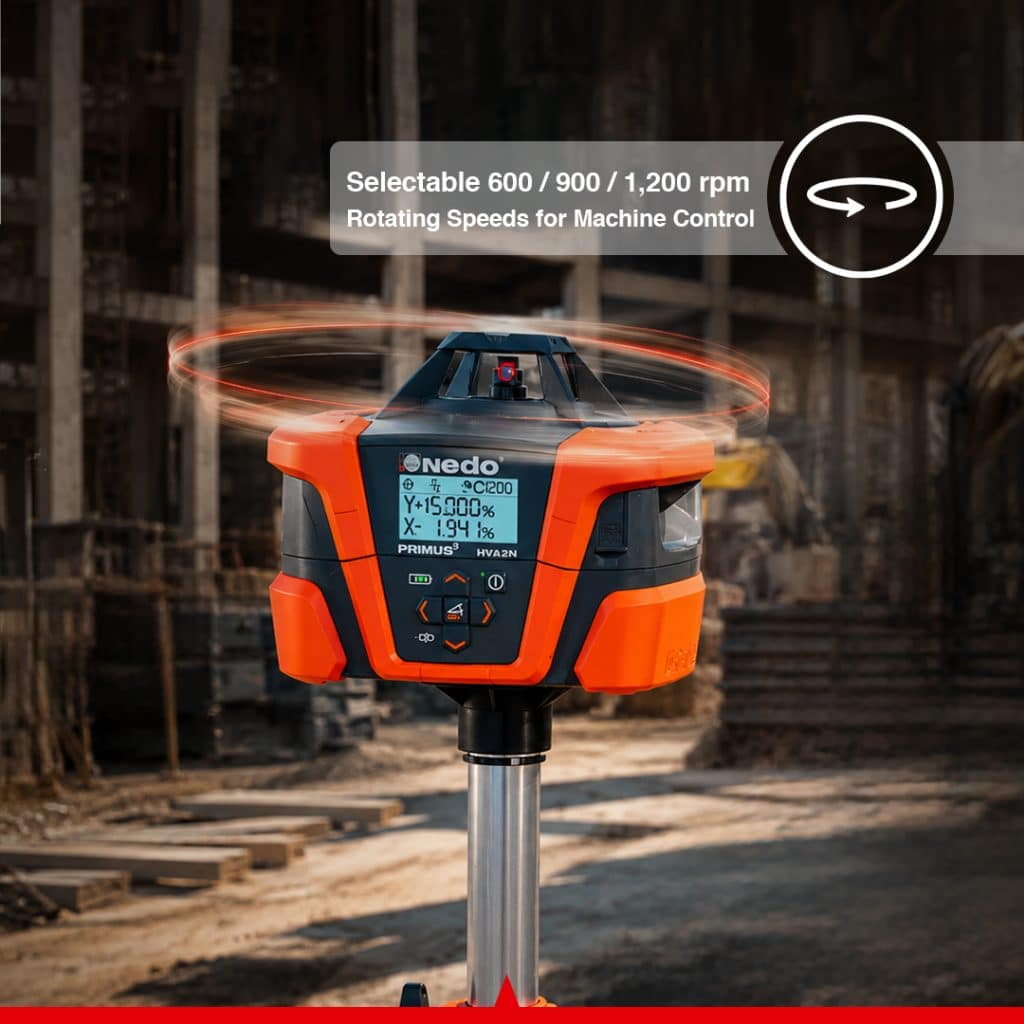

| Rotation speeds | 600, 900 or 1,200 rpm |
| Rotation drive | IonicDrive direct drive |

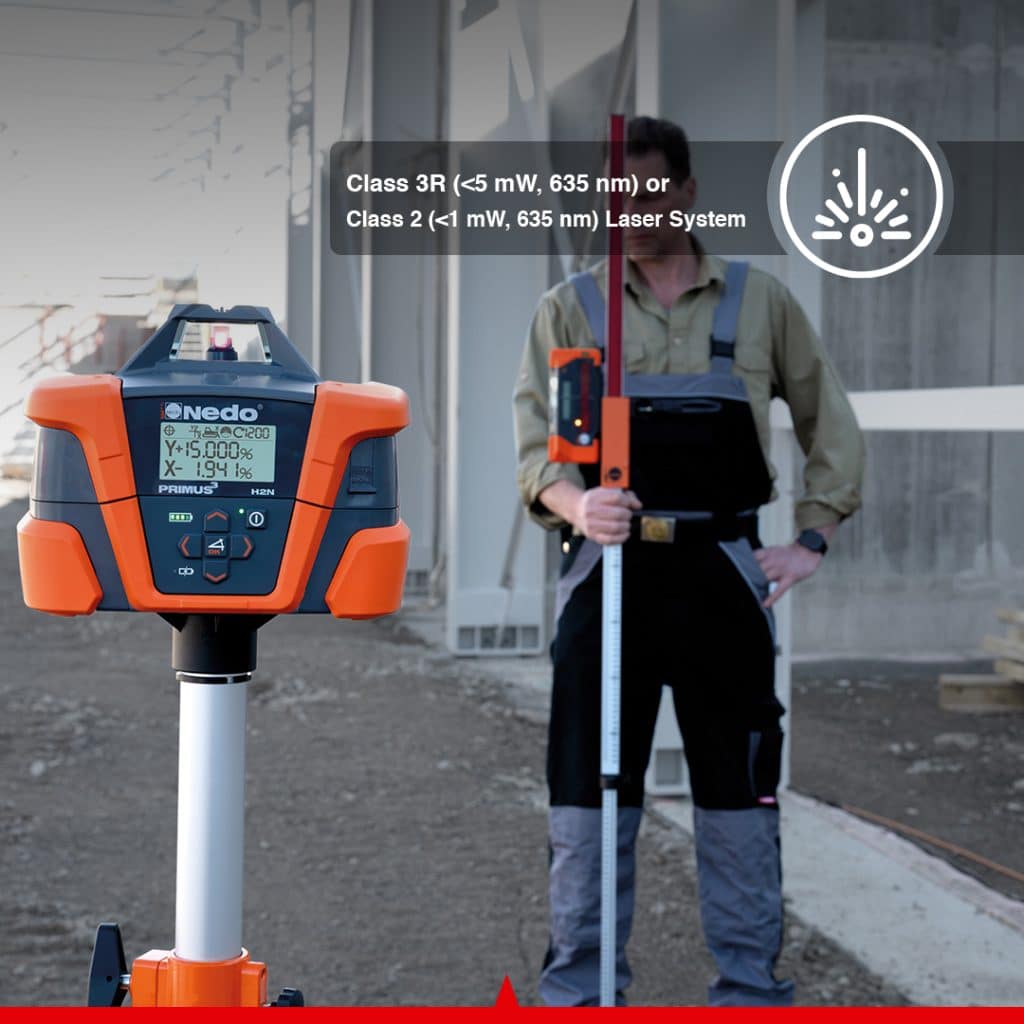

| Manufacturer laser-output versions | Class 3R, less than 5 mW, or Class 2, less than 1 mW; both 635 nm |
| Class 3R manufacturer reference | 472140 |
| Class 2 manufacturer reference | 472140-632 |

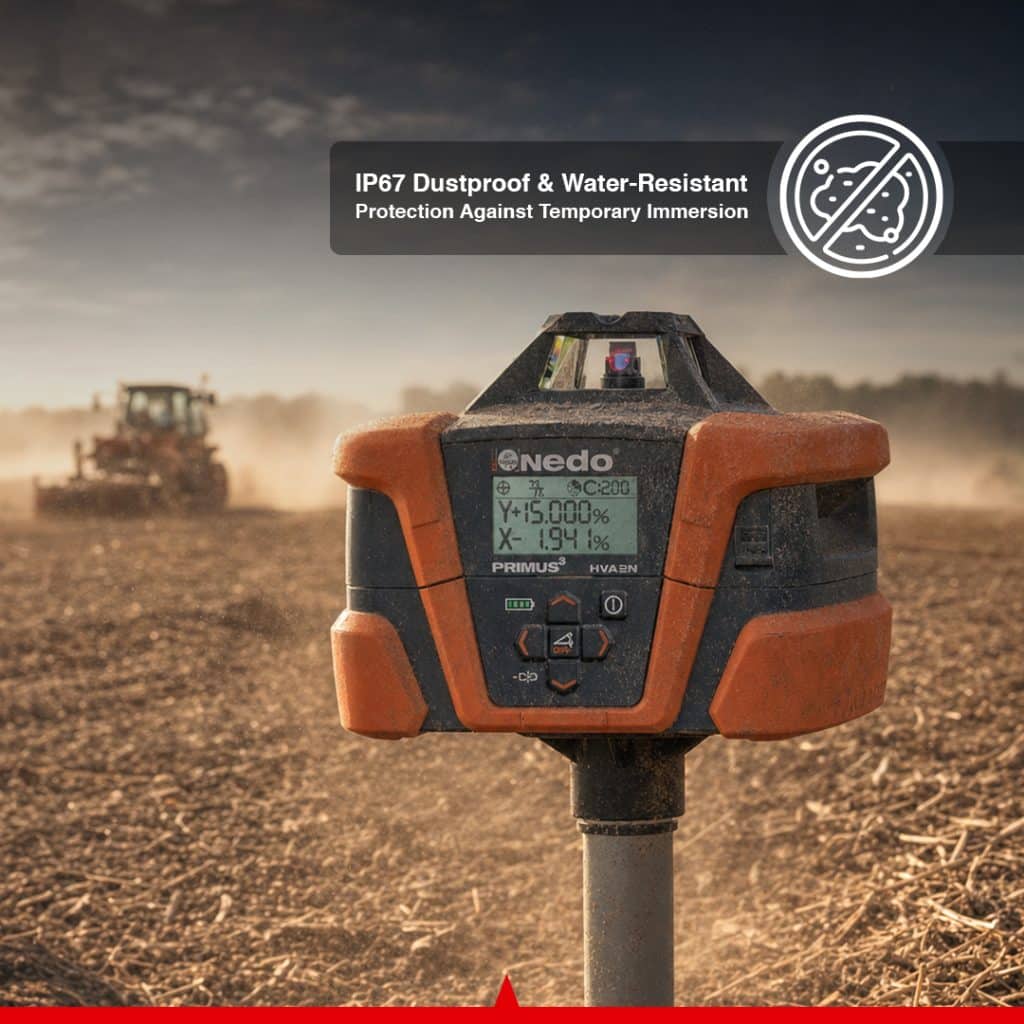

| Transmitter protection | IP67 |
| Rotor guard | Die-cast aluminum |

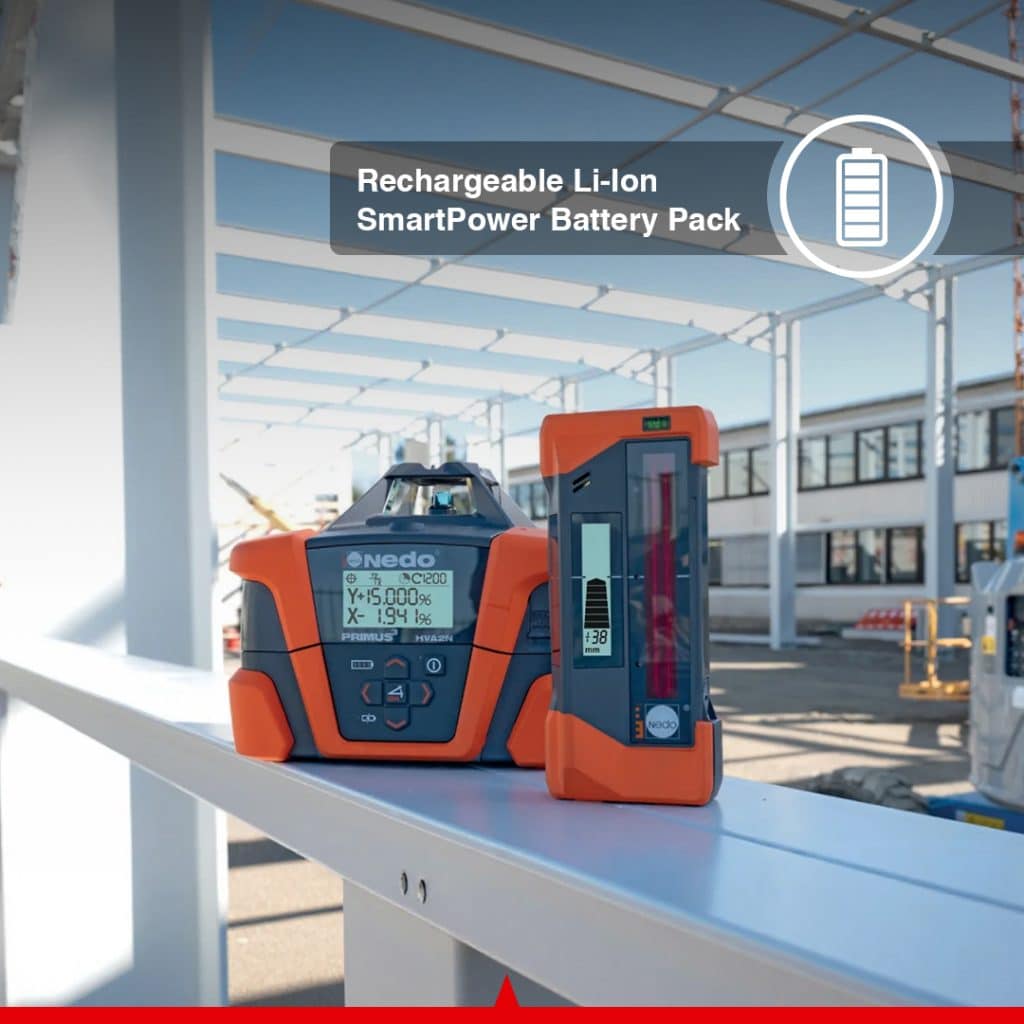

| Power supply | Rechargeable Li-ion battery |

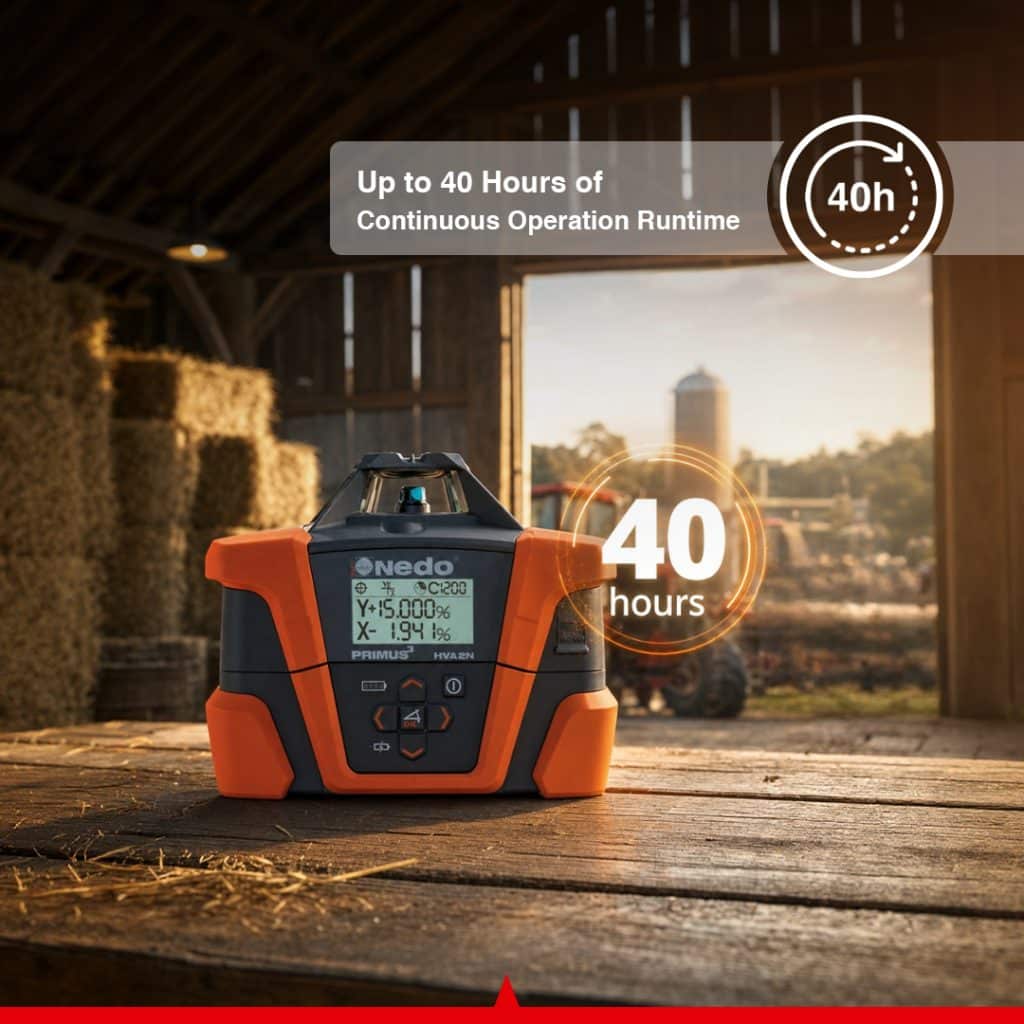

| Operating duration | Up to 40 hours |
| Charging | Battery can be charged in the transmitter; operation while charging supported |

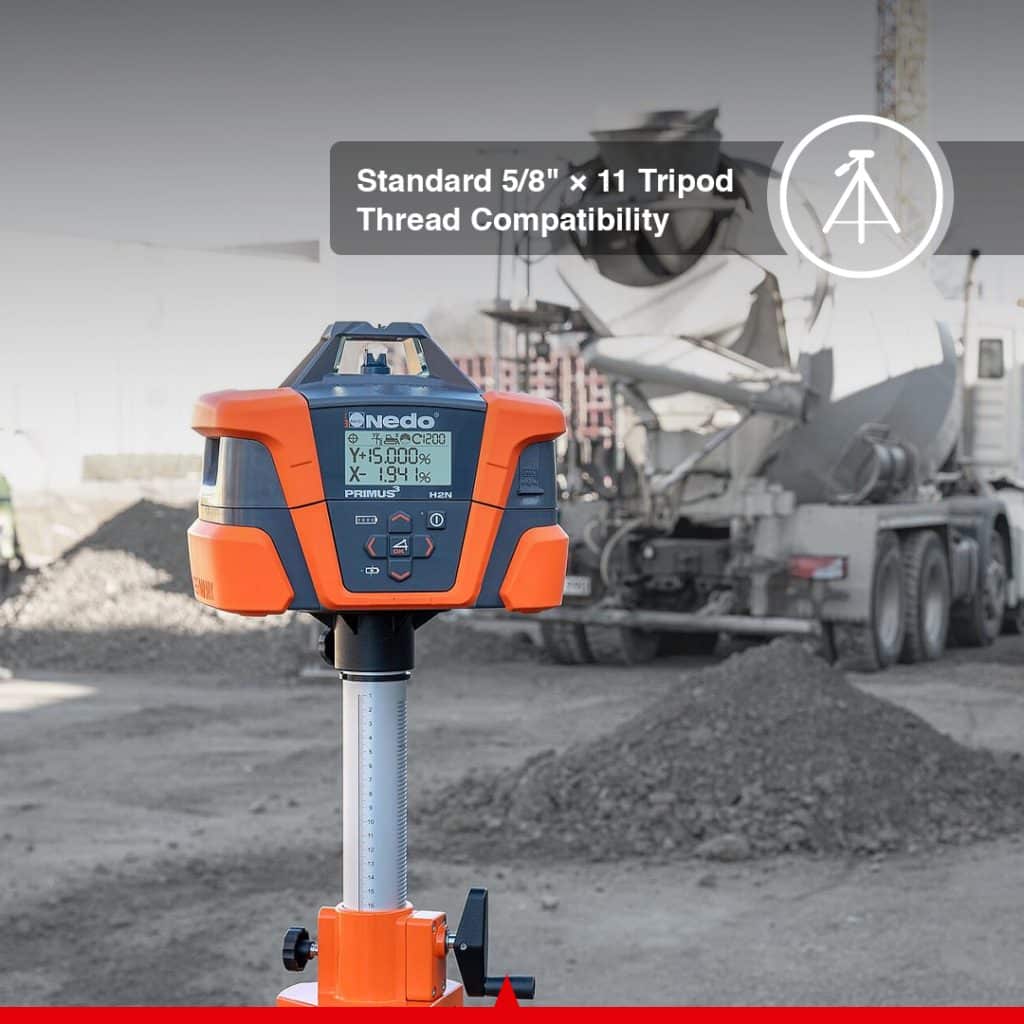

| Tripod connection | Nominal 5/8 in thread, approximately 15.88 mm nominal diameter |
| Quick attachment | Quick-Fix 2 |
| Display information | Slope, rotation speed, battery status and operating information |
| Temperature compensation | TemperatureControl |
| Slope monitoring | Tilt control with automatic re-leveling when required |
| Disturbance monitoring | Automatic Level Control stops the laser after a heavy jolt |
| Automatic axis alignment | AutoTarget for Y-axis alignment using COMMANDER 3 |
| X-axis location | FindX |
| Plane monitoring | PlaneLock X/Y using COMMANDER 3; selected slope axis with other axis horizontal in the described setup |
| Beam-sector control | SegmentControl |
| Included transmitter accessories | COMMANDER 3, heavy-duty rod clamp, Quick-Fix 2, rechargeable battery, charger and transport case |
Range depends on the receiver used and site conditions. Working diameter describes the full coverage diameter around the transmitter; radio remote range is a separate specification. The listed laser classes are manufacturer versions, not a claim that both versions are supplied.
| Specification | Details |
|---|---|
| Functions | Digital handheld laser receiver and PRIMUS 3 radio remote control |
| Digital readout | Millimeter display |
| Selectable accuracy bands | ±0.02 in / ±0.5 mm; ±0.04 in / ±1 mm; ±0.08 in / ±2 mm; ±0.16 in / ±4 mm; ±0.31 in / ±8 mm |
| Detector field length | 4.72 in / 120 mm |
| Published working diameter | Approximately 2,297 ft / 700 m, dependent on laser |
| Radio remote range with PRIMUS 3 H2N | Up to 492 ft / 150 m |
| Protection | IP67 |
| Power supply | 2 × 1.5 V AA batteries |
| Operating duration | Up to 80 hours |
| Rod attachment | Included heavy-duty rod clamp |
| System role | Transmitter operation and handheld laser elevation checks |
Imperial accuracy values are approximate conversions of the manufacturer's millimeter settings; they do not establish an imperial display mode for COMMANDER 3.
| Specification | Details |
|---|---|
| Controller type | Microprocessor-based CAN machine control panel |
| Supply voltage | 12–24 V DC |
| Protection | IP66 |
| Operating modes | Manual, Automatic and Survey; Survey requires optional PM400-CAN |
| Selectable control settings | ±0.12 in / ±3 mm; ±0.35 in / ±9 mm; ±0.55 in / ±14 mm |
| System display | Backlit information display |
| Displayed operating information | Mode, selected accuracy, blade direction and menu information |
| Grade display | LED grade-position indication |
| Blade commands | Raise and lower |
| Automatic output | Compatible hydraulic solenoid valve control |
| Documented valve output voltage | 12 V DC |
| Raise response setting | Independently adjustable, 20–100 |
| Lower response setting | Independently adjustable, 20–100 |
| Adjustment span | Manufacturer describes an 80-step range |
| Mast settings | No Mast, Electric Mast or Hydraulic Mast |
| Mast measurement units | Millimeters and inches |
| Signal adjustment | Adjustable laser smoothing |
| Receiver monitoring | Receiver/control-box communication error indication |
| Electrical protection | Short-circuit protection |
| Automatic mode buzzer | User-selectable On/Off |
| Receiver / electric mast connection | Dedicated CAN connector |
| Valve connection | Dedicated hydraulic valve cable connector |
| Power connection | Dedicated machine power cable connector |
| Remote connection | Optional RS100-CAN wired remote switch |
| Setup functions | Valve response, mast type, buzzer, units and signal smoothing |
| Reset | User-accessible factory reset |
| Technical settings | Password-protected technical parameter menu |
| System identification | Software version and serial number available through the menu |
| Time records | Active and inactive time counters |
| Laser loss indication | Flashing position indication showing the last detected beam position |
| Specification | Details |
|---|---|
| Receiver type | CAN laser machine receiver |
| Supported laser reference | Compatible rotating red-beam laser |
| Capture angle | 360° |
| Measurement window | 7.48 in / 190 mm |
| Detection positions | 8 |
| Control settings | ±0.12 in / ±3 mm; ±0.35 in / ±9 mm; ±0.55 in / ±14 mm |
| Above-grade indication | Red LEDs |
| On-grade indication | Green LEDs |
| Below-grade indication | Yellow LEDs |
| Indicator format | High-visibility flashing LEDs |
| Housing | Aluminum alloy |

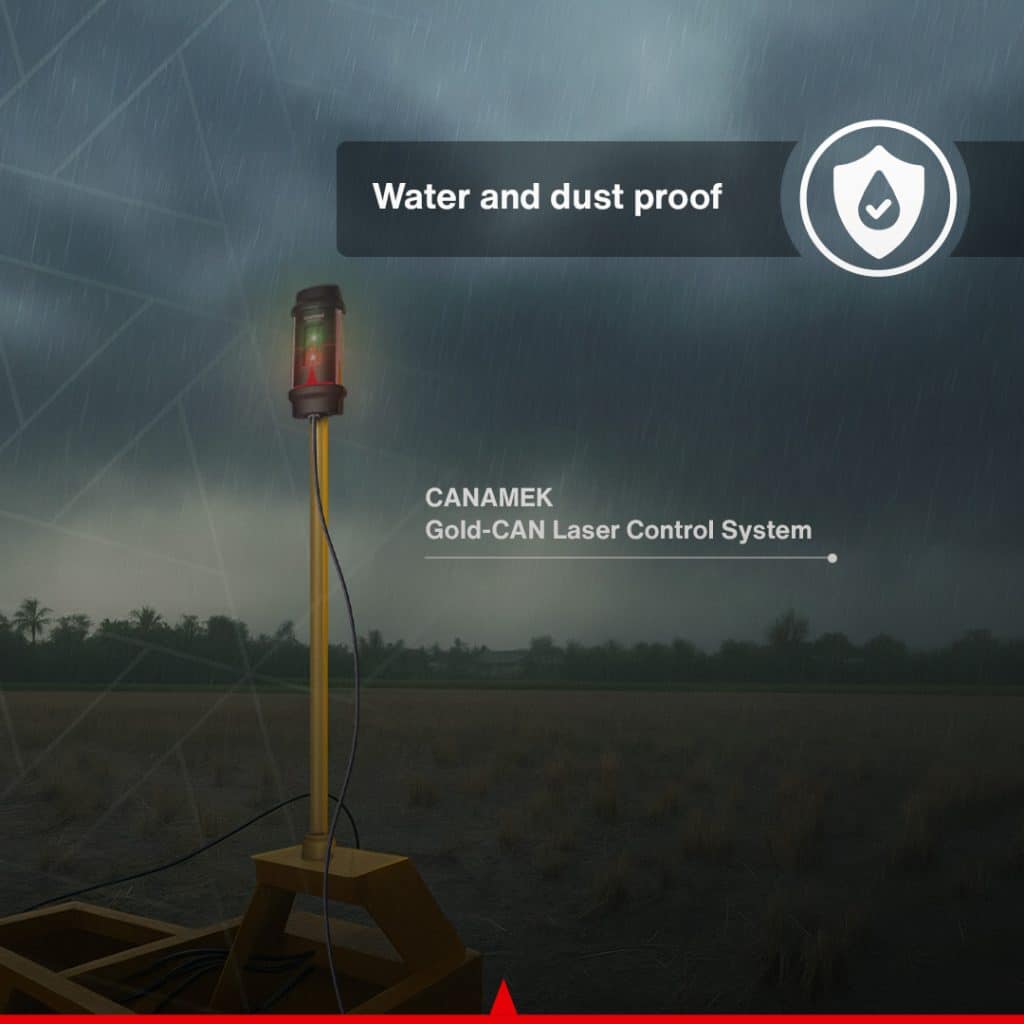

| Protection | IP68 |
| Supply voltage | 12–24 V DC |
| Power and data | CAN connection |
| Weight | 6.28 lb / 2.85 kg |
| Mounting | Mechanical clamp |
| Signal processing | Real-time laser bounce filtration |
| Application | Manual visual guidance and automatic machine grade control |
| Specification | Details |
|---|---|
| Published Gold-CAN operating temperature* | −4°F to 140°F / −20°C to 60°C |
| Compatible valve type | Suitable on/off solenoid valves |
| Blade hydraulic functions | Raise and lower |
| Control response | Independent adjustment for raising and lowering |
| Electric mast support | Optional PM400-CAN |
| Hydraulic mast support | Configurable through controller settings |
| Supported machine categories | Compatible scrapers, land levelers and blade-controlled grading equipment |
| Installation requirements | Suitable electrical supply, hydraulic valve interface, receiver mounting and cable routing |
*The Gold-CAN temperature range applies to that control system. Each third-party component retains its own environmental specifications.
| Component | Specification / function |
|---|---|
| Power cable | 13.12 ft / 4 m; machine battery to CP210-CAN |
| Hydraulic valve cable | 24.77 ft / 7.55 m; controller to valve assembly |
| Receiver coil cable | Published length range of 36.1–45.9 ft / 11–14 m |
| Cable jackets | Oil-resistant construction |
| Mechanical suitability | Designed for high mechanical stress and machine movement |
| Temperature suitability | Low-temperature cable construction |
| Connector type | Circular MIL-style connectors |
| Connector protection | Water- and dust-resistant design |
| Connector arrangement | Application-specific keyed connections |
| CANAMEK control-kit storage | Aluminum carry case |
| Nedo transmitter-kit storage | Transport case |
| Component | Verified specification / function |
|---|---|
| Transmitter tripod | Elevating tripod |
| Tripod column | Double telescopic column |
| Tripod adjustment | Reinforced indirect gear unit |
| Tripod construction | Aluminum legs and head |
| Tripod stability features | Additional leg struts |
| Hydraulic connection equipment | Quick-connect valve block and hoses |
| Hydraulic integration | Must match the machine's hydraulic circuit, valve interface and connections |
| Specification | Details |
|---|---|
| Package status | Optional; not part of the two core product kits |
| Function | Powered receiver-height adjustment and Gold-CAN Survey mode support |
| Structure | Steel body with aluminum components |
| Position measurement | Digital |
| Supply voltage | 10–24 V DC |
| Stroke | 39.37 in / 1,000 mm |
| Position accuracy | ±0.04 in / ±1 mm |
| Units | Imperial and metric |
| Control | Raise/lower from CP210-CAN |
| Receiver mounting | Integrated mounting interface |
| Communication | CAN-based integration |
| Mounting recommendation | Shock mount for high-vibration applications |
| Mast-to-control-box cable | 27.89 ft / 8.5 m |
| Mast-to-receiver coil cable | 8.2–18.0 ft / 2.5–5.5 m |
| Specification | Details |
|---|---|
| Package status | Optional |
| Remote type | Wired machine-control switch |
| Housing | Aluminum |
| Blade commands | Up / Down |
| Mode commands | Automatic / Manual |
| Switch construction | Heavy-duty |
| Environmental design | Water- and dust-resistant |
| Cable | Coiled cable with high mechanical resistance |
| Connection | Dedicated CP210-CAN remote connector |
Use the laser plane and Gold-CAN blade guidance to establish a consistent field elevation. Automatic mode can control compatible hydraulics while the operator manages the machine and soil movement.
Grade agricultural surfaces to the specified level or slope before irrigation use. A consistent reference helps the operator shape the surface according to the intended water-distribution plan.
Set the required transmitter slope and grade toward planned drainage routes or outlets. Correcting surface irregularities can support water movement when the field design and drainage infrastructure are suitable.
Enter the required X- and Y-axis slopes to create a reference plane for longitudinal slope, cross slope or a combination of both. The machine receiver guides blade elevation relative to that plane.
Fit the Gold-CAN system to compatible scraper or land-leveling equipment for visual guidance or automatic blade raising and lowering. Tune the control band and hydraulic response for the implement and grading stage.
Use selectable control tolerances to suit successive grading passes. The same laser reference supports initial shaping and closer final elevation control, subject to machine and ground conditions.
Use COMMANDER 3 and a suitable measuring rod to check reference elevations around the job. This supports setup checks and review of the graded surface independently of the machine receiver.
Add the PM400-CAN electric mast to use Gold-CAN Survey mode for high/low comparisons and slope assessment relative to a selected benchmark.
Be the first to review this product.
Every unit ships with everything needed to put it to work in under an hour.
Get sizing help and tech answers from a real human, in <2 min.
Call +1 (855) CANAMEKTell us your acreage and crop, get a turnkey estimate in 24 hours.
Email sales →
Write a review
