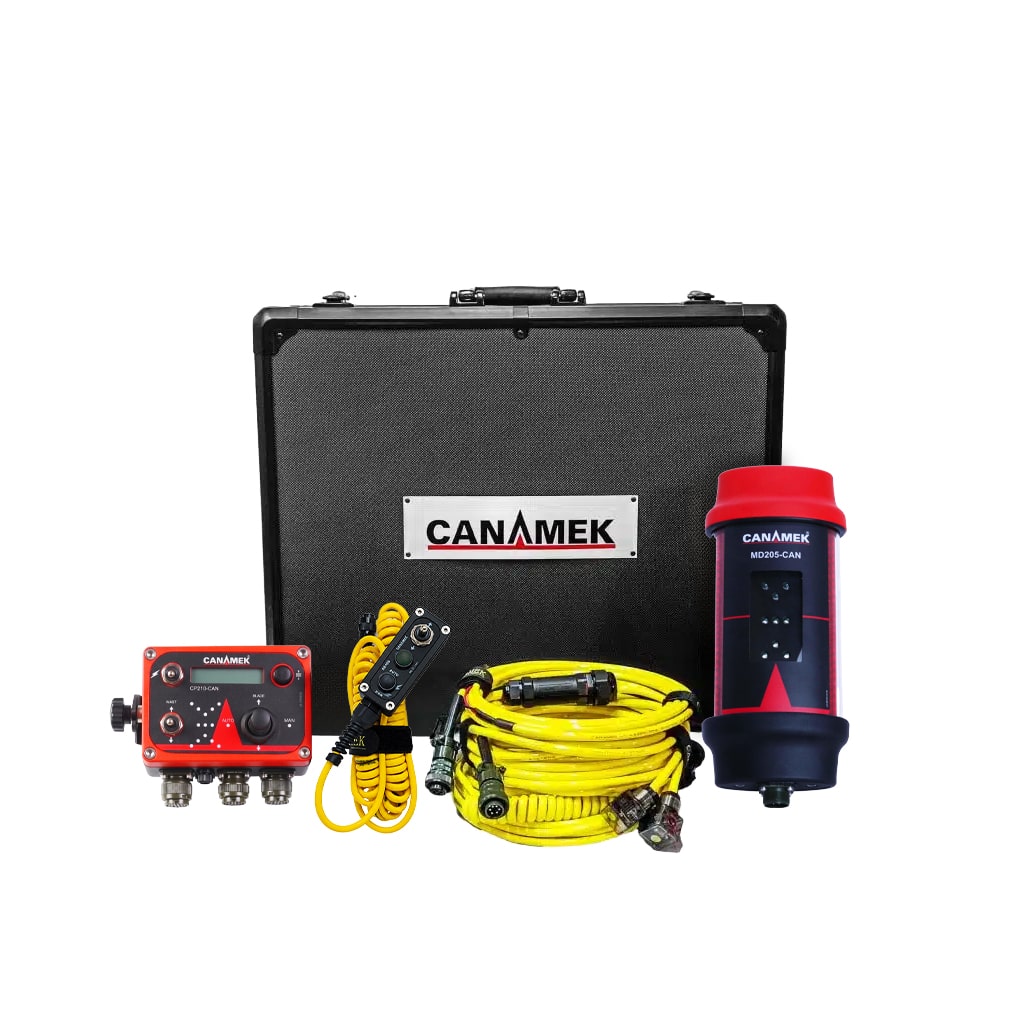

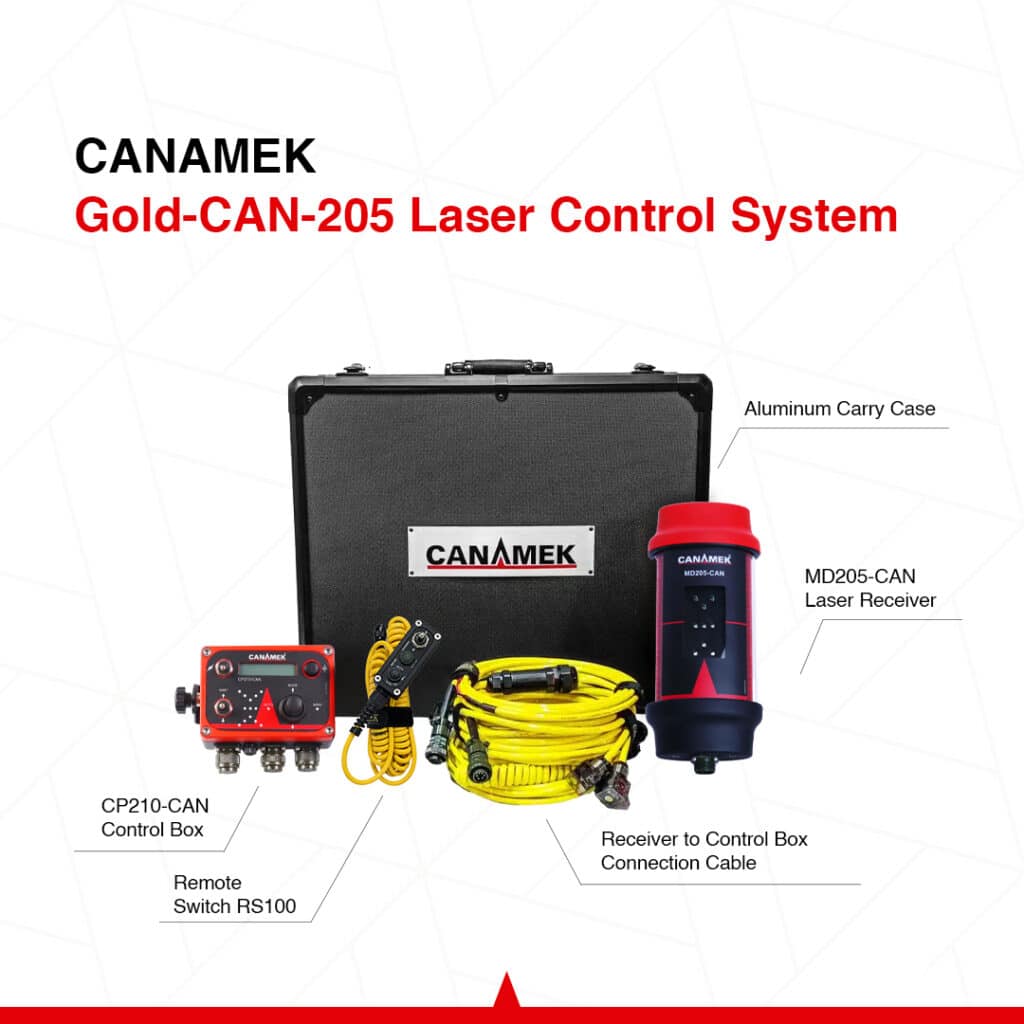

The CANAMEK Gold CAN Laser Control System is a professional CAN-based laser machine control solution engineered for precise land leveling, grading, contouring, drainage, and agricultural earthmoving applications.
Designed for compatible grading and earthmoving machinery, the system provides clear visual grade guidance in Manual mode and automatic blade height control when integrated with a compatible hydraulic solenoid valve system.

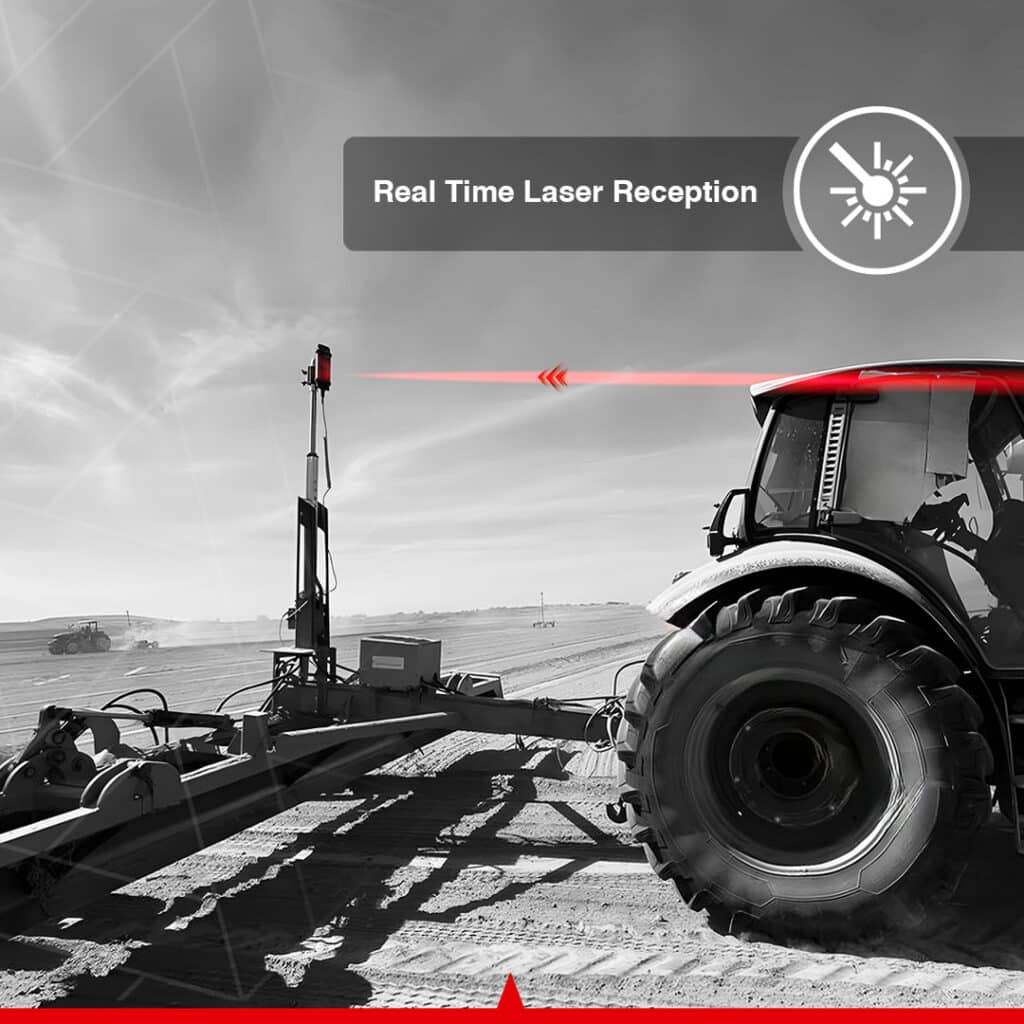

A rotating red-beam laser creates a reference plane across the jobsite. The MD205-CAN laser receiver detects the laser position and communicates real-time grade data to the CP210-CAN control panel, allowing the operator—or the automatic control system—to maintain the blade at the required elevation.
Depending on the laser transmitter, the reference plane can be level, single slope, or dual slope, making the CANAMEK Gold CAN Laser Control System suitable for a wide range of precision grading applications.
The system is designed around three operating modes, allowing operators to select the level of control required for each job.
In Manual mode, the system provides real-time visual grade information through the receiver and control panel LED indicators.
The operator manually controls the machine hydraulics while using the above-grade, on-grade, and below-grade indicators to keep the blade aligned with the laser reference plane.
Manual mode is ideal for applications where the operator requires direct hydraulic control with continuous laser grade guidance.
In Automatic mode, the CP210-CAN control panel interprets data from the laser receiver and sends control signals to the machine’s compatible hydraulic solenoid valves.
The system automatically raises or lowers the blade to keep the laser receiver centered on the reference beam and maintain the required grade.
This automatic grade control reduces continuous manual correction and helps operators maintain more consistent elevation across the working area.
When configured with the optional PM400-CAN Electric Power Mast, Survey mode can be used to evaluate high and low areas relative to a selected reference point.
The system can assist with land and road elevation analysis, slope evaluation, and site surveying before or during grading operations.
Not every job requires the same control tolerance.
The CANAMEK Gold CAN Laser Control System provides three selectable accuracy settings:
Operators can select a tighter deadband for precision grading or a wider control tolerance for applications where faster machine response and larger elevation corrections are required.
This flexibility makes the system suitable for both fine grading and large-scale earthmoving operations.

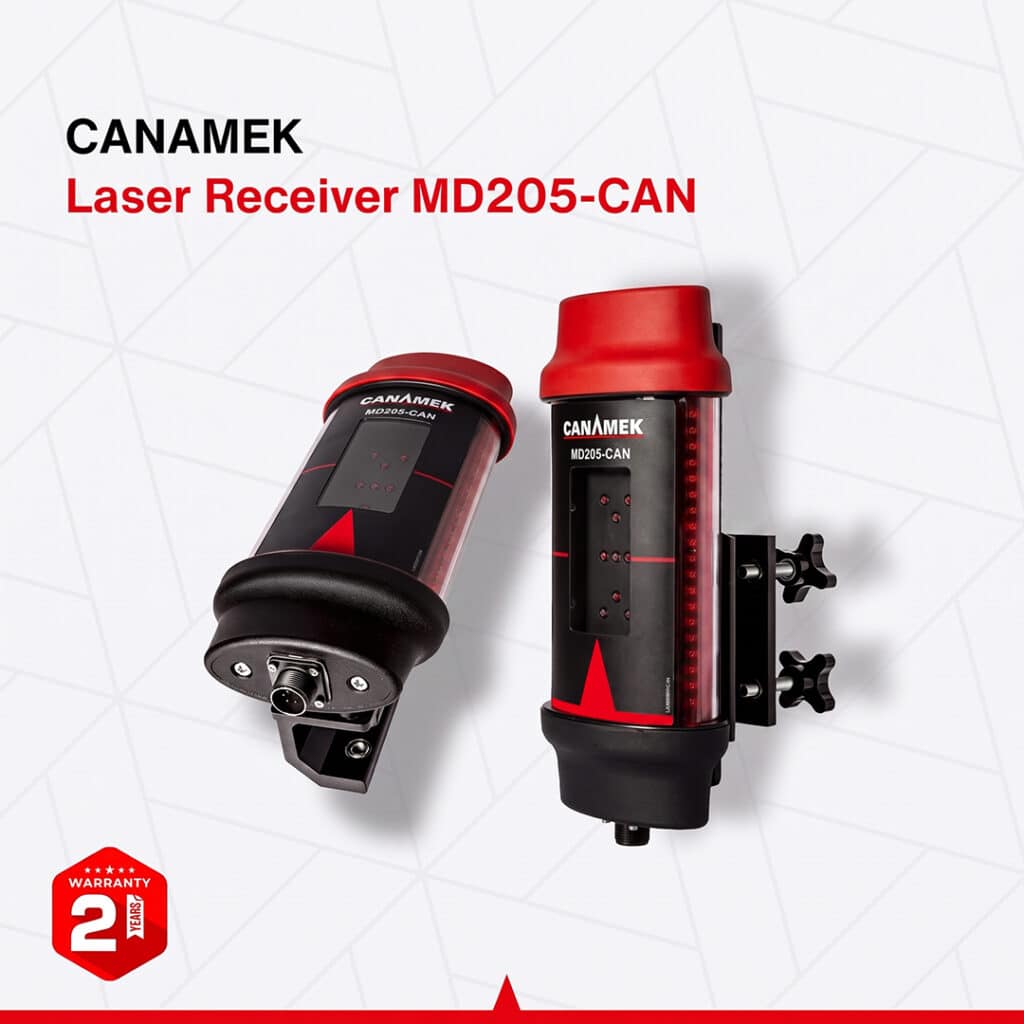

The MD205-CAN Laser Receiver is the primary sensing component of the system.

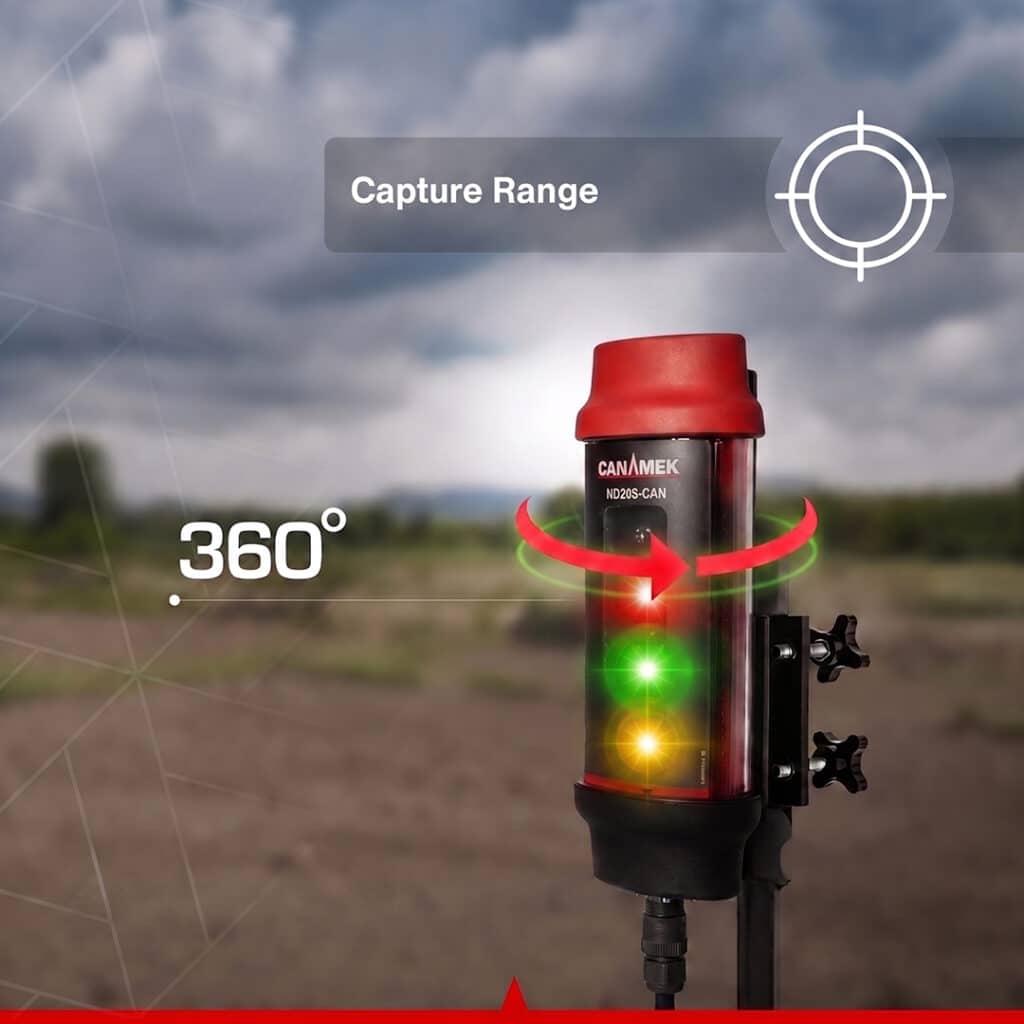

Its 360° laser capture capability allows the receiver to detect the rotating laser reference plane from any direction around the machine.

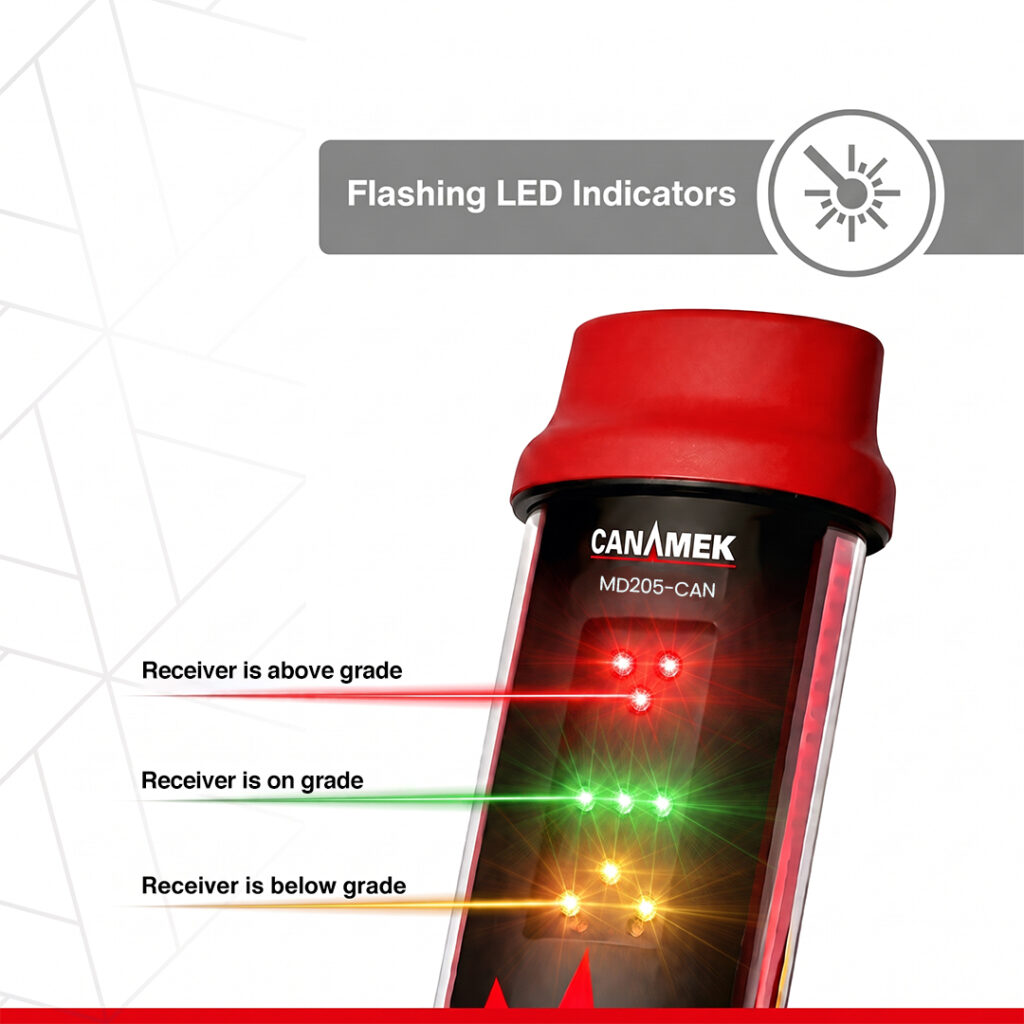

Eight distinct laser beam positions provide detailed grade information, while high-visibility LED indicators show the current blade position relative to the required grade:
Red — Above Grade
Green — On Grade
Yellow — Below Grade
Real-time laser bounce filtration and adjustable signal smoothing help stabilize grade detection when operating in environments with machine vibration and mechanical movement.

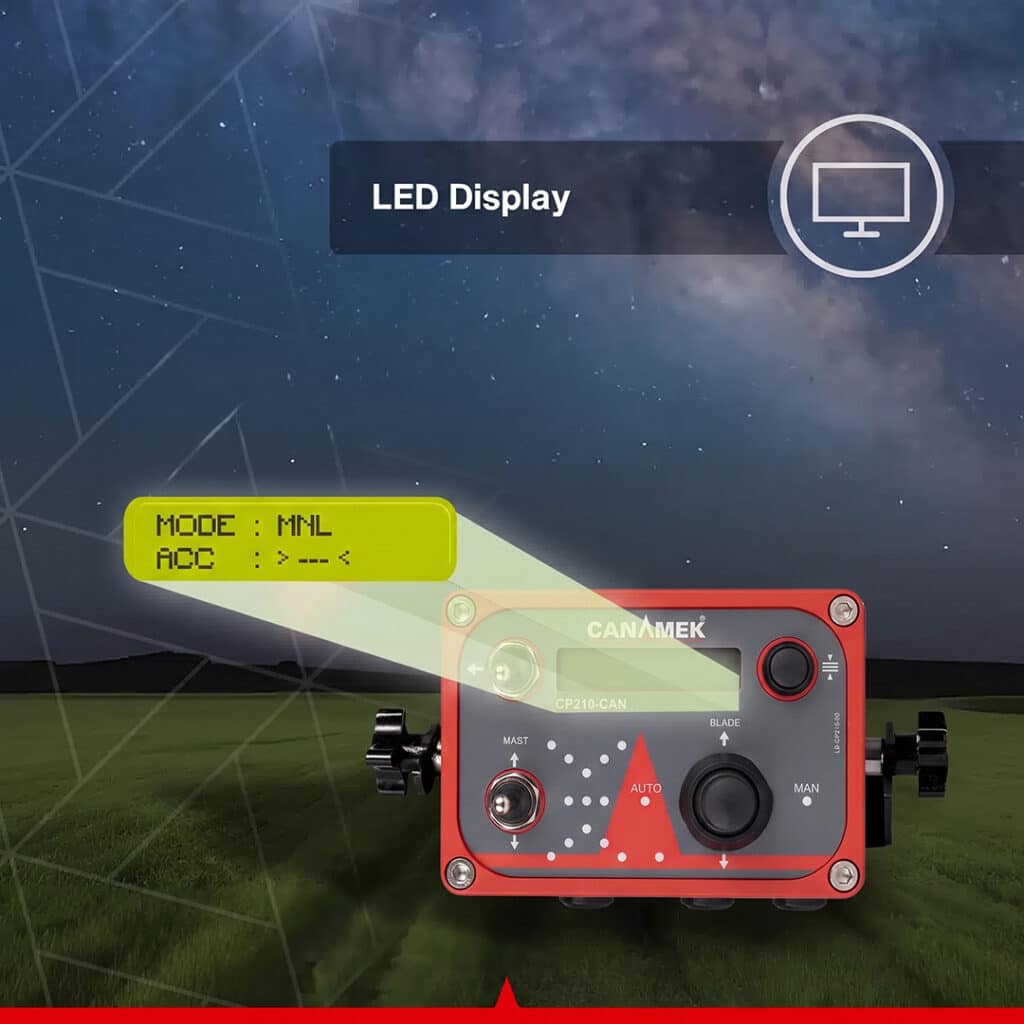

At the center of the system is the CP210-CAN Control Panel.
The microprocessor-based controller receives grade information from the laser receiver and manages blade control, mast communication, operating modes, and system settings.
The high-visibility display provides access to:
A backlit display supports operation in low-light conditions, while integrated connection monitoring can alert the operator if communication between the control panel and receiver is interrupted.
The CP210-CAN also includes short-circuit protection and independent valve speed adjustment for blade raising and lowering.
Machine hydraulic systems can react differently depending on valve design, hydraulic pressure, machine size, and blade configuration.
The CANAMEK control system allows the blade raise and lower valve response to be adjusted independently from 20 to 100 through the control menu.
This allows technicians and operators to better match system response to the hydraulic characteristics of the machine.
Advanced response settings also support different valve speed profiles for machine-specific control tuning.

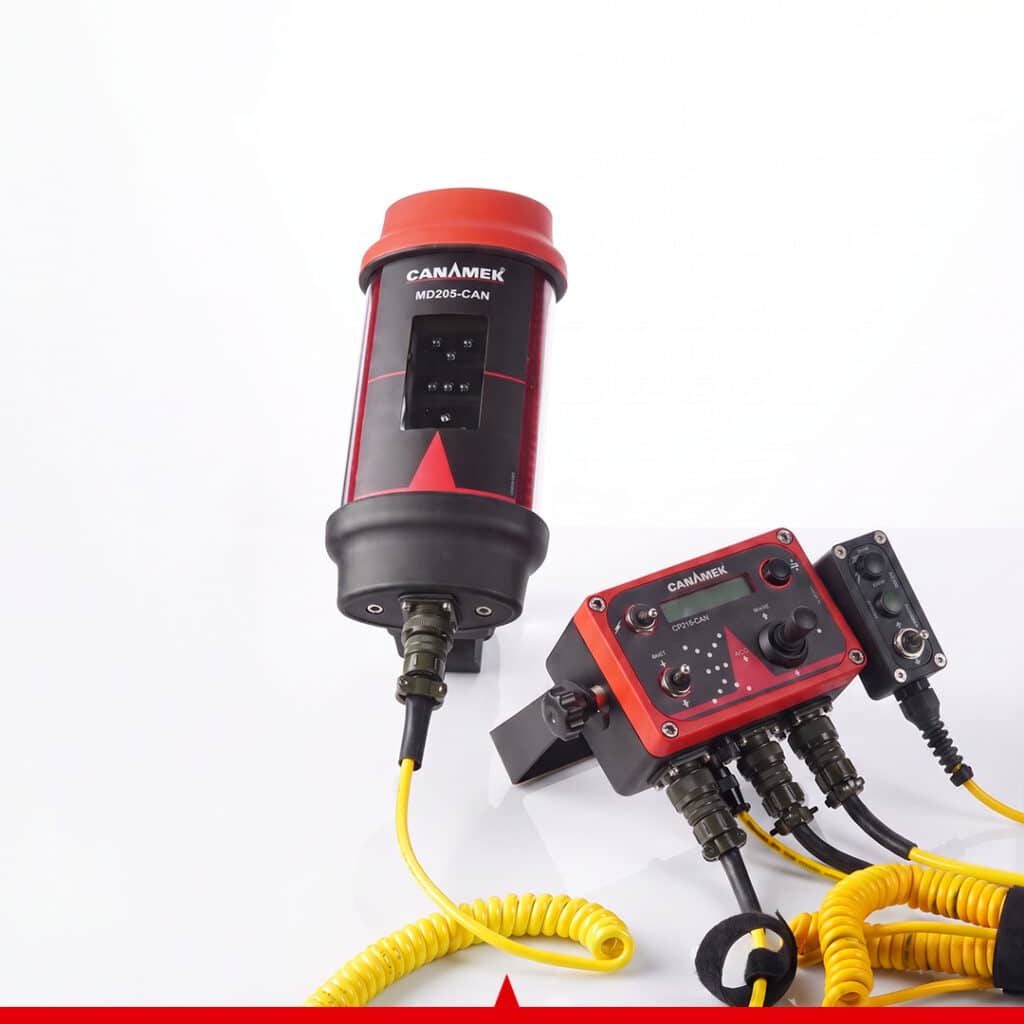

CAN communication provides a reliable connection between compatible system components.

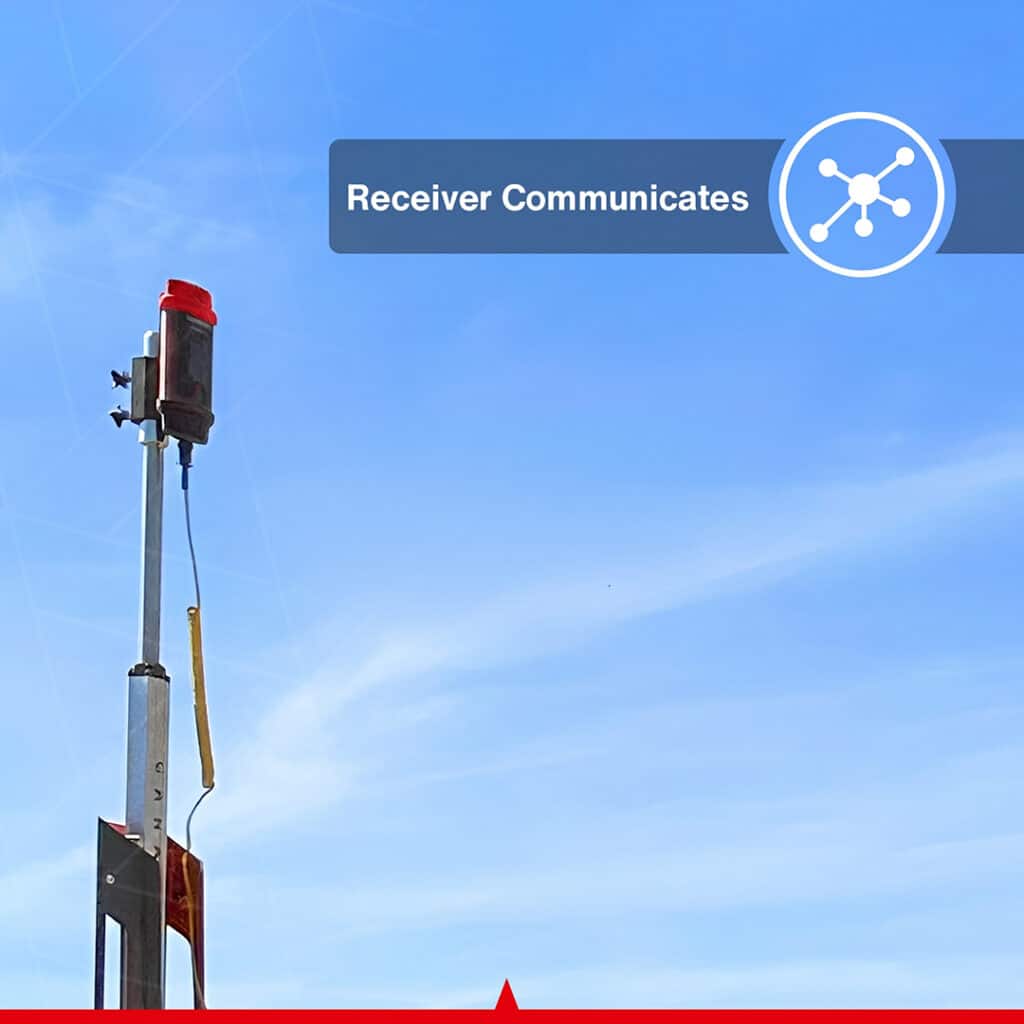

The MD205-CAN laser receiver communicates with and receives power through the CAN bus, reducing the complexity of the machine control architecture.
Industrial cables and connectors are designed for demanding mobile equipment applications and feature:
This rugged connection system is designed for agricultural and earthmoving environments where equipment is exposed to vibration, moisture, dust, and continuous machine movement.
The main machine control interface responsible for processing laser receiver data and controlling compatible hydraulic systems.
Key functions include selectable accuracy, operating mode control, blade raise/lower control, mast operation, valve speed adjustment, receiver communication monitoring, and remote control connectivity.
A rugged 360° laser receiver featuring an aluminum alloy body, IP68 protection, high-visibility grade LEDs, CAN bus communication, and real-time laser bounce filtration.
The receiver detects the rotating laser plane and continuously transfers blade elevation information to the control panel.
The optional PM400-CAN Electric Power Mast allows the laser receiver height to be adjusted directly from the machine cab.
With a 1,000 mm / 39.37 in stroke and digital position measurement, the mast provides accurate receiver positioning and supports Survey mode operation.

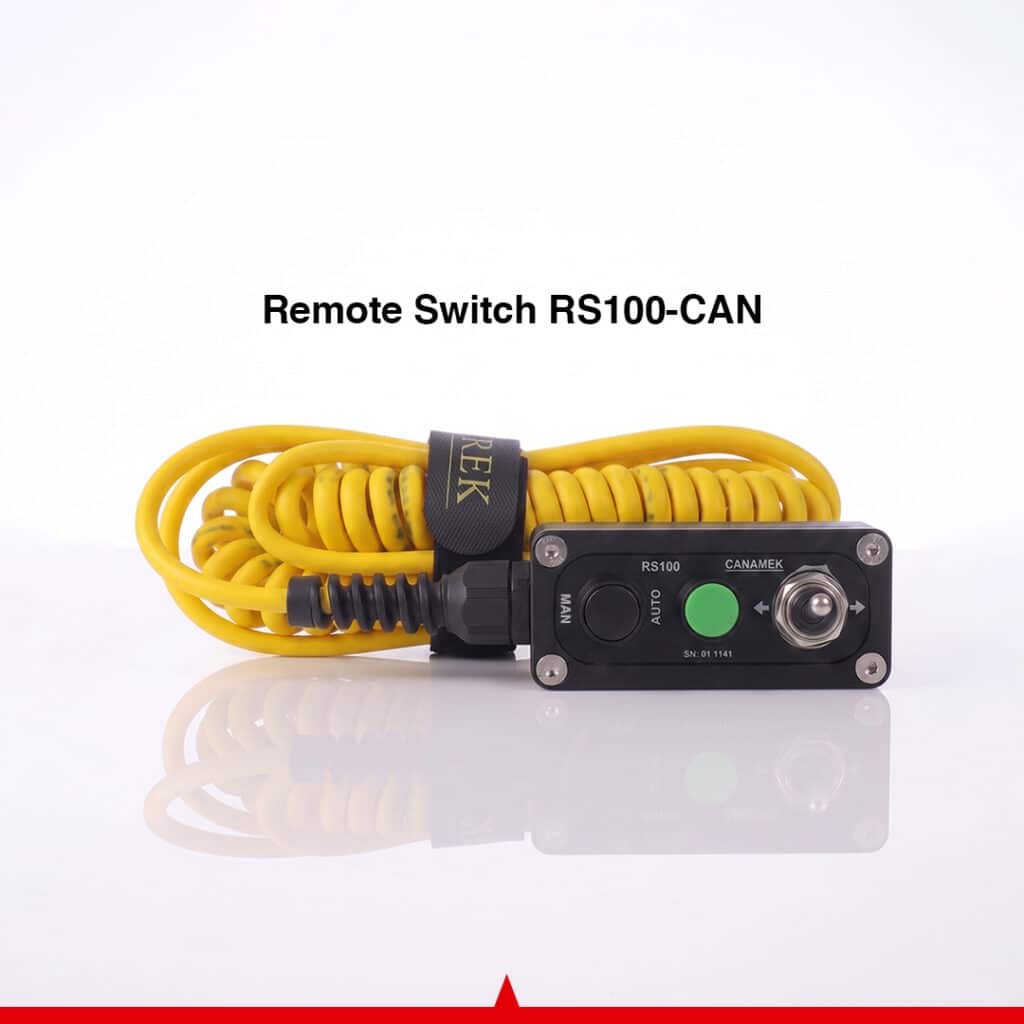

The optional RS100-CAN Remote Switch provides convenient blade raise/lower and Manual/Automatic mode control.
Its aluminum housing, heavy-duty switches, and mechanically resistant coiled cable are designed for demanding machine environments.
The system uses dedicated receiver, power, hydraulic valve, and power mast cables designed for mobile machinery and demanding field conditions.
Different connector types help reduce the risk of incorrect cable connections during installation.
The CANAMEK Gold CAN Laser Control System is suitable for precision grade control applications including:
The system is particularly suitable for machines equipped with compatible hydraulic blade control systems and on/off solenoid valves.
Machine-specific hydraulic interfaces, valve components, or mounting hardware may be required depending on the equipment configuration.
Maintaining grade manually requires continuous operator attention and repeated hydraulic correction.
The CANAMEK Gold CAN Laser Control System combines real-time laser position detection, visual grade guidance, and automatic blade control to help operators maintain a consistent reference elevation throughout the jobsite.
Selectable accuracy, adjustable hydraulic response, CAN communication, rugged components, and multiple operating modes allow the system to be configured for a wide range of agricultural and earthmoving applications.
Made in Canada and designed for professional field use, the system is backed by a 2-year warranty and 7-day-a-week after-sales support.
Need help selecting the correct configuration for your machine? Contact CANAMEK to review your machine type, hydraulic system, mast requirements, and grade control application.
1. Is the CANAMEK-Gold-CAN compatible with my existing laser equipment?
Yes, it connects to all red laser transmitters and almost all machine types, ensuring maximum compatibility.
2. Can I use the system in harsh environments?
Absolutely. With IP66/IP68 water resistance and an operating range of –20°C to 60+°C, it is designed for tough jobsite conditions.
3. What accuracy options does it provide?
You can select from 3 mm, 9 mm, or 14 mm accuracy depending on the precision needs of your project.
4. How does the system notify me of errors?
The control box displays error messages when there is no connection between the receiver and control box, preventing unnoticed downtime.
5. What support is included after purchase?
Each system comes with a 1-year warranty and 7-days-a-week after-sales service, ensuring reliable assistance whenever needed.
| Select Reciver | Laser Receiver MD205 | Laser Receiver MD305 |
Product Information
| Specification | Technical Details |
|---|---|
| Product Name | CANAMEK Gold CAN Laser Control System |
| System Type | Laser machine control and automatic grade control |
| Country of Manufacture | Canada |
| Warranty | 2 Years |
| After-Sales Support | 7 Days a Week |
| Category | Specification | Technical Details |
|---|---|---|
| System Overview | Product Type | CAN-based laser machine control and automatic grade control system |
| System Overview | Primary Applications | Land leveling, grading, contouring, farm drainage, earthmoving, trenching and surveying |
| System Overview | Compatible Machine Types | Scrapers, land levelers, grading machines, trenching machines and compatible blade-controlled equipment |
| System Overview | Operating Modes | Manual, Automatic and Survey |
| System Overview | Laser Compatibility | Red-beam rotating laser transmitters |
| System Overview | Laser Reference Plane | Level, single-slope or dual-slope, depending on the laser transmitter |
| System Overview | Communication Architecture | CAN bus |
| Grade Control | Selectable Accuracy | ±3 mm / ±0.12 in; ±9 mm / ±0.35 in; ±14 mm / ±0.55 in |
| Grade Control | Grade Indication | Above Grade, On Grade and Below Grade |
| Grade Control | Receiver Beam Positions | 8 distinct laser beam positions |
| Grade Control | Automatic Blade Control | Automatic blade raise/lower through compatible hydraulic solenoid valves |
| Grade Control | Manual Blade Control | Visual grade guidance with operator-controlled hydraulics |
| Grade Control | Laser Signal Processing | Real-time laser bounce filtration |
| Grade Control | Signal Smoothing | Adjustable laser signal smoothing for vibration and machine movement |
| Environmental | Operating Temperature | -20°C to +60°C / -4°F to +140°F |
| Mast Configuration | Supported Mast Types | No Mast, Electric Mast or Hydraulic Mast |
| Measurement Units | Mast Elevation Units | Millimeters and inches |
| Specification | Technical Details |
|---|---|
| Component Type | CAN machine control panel |
| Protection Rating | IP66 |
| Operating Voltage | 12-24 V DC |
| Operating Modes | Manual, Automatic and Survey |
| Accuracy Settings | ±3 mm / ±0.12 in; ±9 mm / ±0.35 in; ±14 mm / ±0.55 in |
| Display Type | Backlit system information display |
| Display Information | Operating mode, selected accuracy, blade movement direction and menu data |
| Grade Position Display | LED grade positioning indicator |
| Blade Control | Raise and lower control |
| Automatic Control Output | Hydraulic solenoid valve control |
| Valve Raise Speed | Independently adjustable from 20 to 100 |
| Valve Lower Speed | Independently adjustable from 20 to 100 |
| Adjustment Range | 80-step adjustment range |
| Receiver Communication Monitoring | Receiver/control panel connection error indication |
| Electrical Protection | Short-circuit protection |
| Auto Mode Buzzer | User-selectable On/Off |
| Mast Control | Electric or hydraulic mast configuration support |
| Remote Control Connection | RS100-CAN remote switch connection |
| Receiver / Mast Connection | Dedicated CAN receiver/electric mast connector |
| Hydraulic Connection | Dedicated hydraulic valve cable connector |
| Power Connection | Dedicated machine power cable connector |
| Setup Functions | Valve speed, mast type, buzzer, measurement unit and laser smoothing settings |
| Factory Reset | User-accessible factory reset function |
| Technical Menu | Password-protected technical parameter menu |
| Specification | Technical Details |
|---|---|
| Component Type | 360° CAN laser machine receiver |
| Body Material | Aluminum alloy |
| Protection Rating | IP68 |
| Laser Capture Range | 360° |
| Measurement Window | 190 mm / 7.48 in |
| Weight | 2.85 kg / 6.28 lb |
| Operating Voltage | 12-24 V DC |
| Communication | CAN bus |
| Power Supply | Powered through CAN bus connection |
| Laser Beam Positions | 8 distinct detection positions |
| Grade Indicators | Red: Above Grade; Green: On Grade; Yellow: Below Grade |
| Grade Display | High-visibility flashing LED indicators |
| Signal Processing | Real-time laser bounce filtration |
| Mounting Type | Mechanical clamp mount |
| Receiver Connection | CAN data and power connection |
| Application | Manual and automatic machine grade control |
| Specification | Technical Details |
|---|---|
| Component Type | Electric laser receiver power mast |
| Body Construction | Steel body with aluminum components |
| Measurement System | Digital position measurement |
| Operating Voltage | 10-24 V DC |
| Stroke | 1,000 mm / 39.37 in |
| Position Accuracy | ±1 mm / ±0.04 in |
| Measurement Units | Metric and Imperial |
| Control Method | Raise/lower control from CP210-CAN |
| Receiver Mounting | Integrated receiver mounting interface |
| System Communication | CAN-based system integration |
| Survey Mode Support | Yes |
| Recommended Mounting | Shock mount recommended for high-vibration applications |
| Specification | Technical Details |
|---|---|
| Component Type | Wired remote machine control switch |
| Body Material | Aluminum |
| Blade Controls | Blade Up / Down |
| Mode Controls | Automatic / Manual |
| Switch Type | Heavy-duty switches |
| Environmental Protection | Water- and dust-resistant switch design |
| Cable Type | Coiled remote cable |
| Cable Construction | High mechanical resistance |
| Connection | Dedicated CP210-CAN remote control connector |
| Cable / Connection | Length | Technical Details |
|---|---|---|
| Receiver Coil Cable | 11-14 m / 36.1-45.9 ft | Receiver communication and system connection |
| Power Cable | 4 m / 13.12 ft | Machine battery to CP210-CAN control panel |
| Valve Cable | 7.55 m / 24.77 ft | Control panel to hydraulic valve assembly |
| Power Mast Data Cable to Control Box | 8.5 m / 27.89 ft | PM400-CAN mast to CP210-CAN |
| Power Mast Coil Data Cable to Receiver | 2.5-5.5 m / 8.2-18.0 ft | Electric mast to MD205-CAN receiver |
| Remote Control Cable | Coiled | RS100-CAN to CP210-CAN remote connection |
| Cable Jacket | Oil-resistant | Designed for mobile machinery applications |
| Mechanical Resistance | High mechanical stress resistant | Designed for machine vibration and continuous movement |
| Temperature Suitability | Low-temperature suitable | Designed for demanding field environments |
| Connector Type | Circular MIL-style connectors | Industrial machine connection system |
| Connector Protection | Water- and dust-resistant | Field and mobile machinery use |
| Connector Layout | Application-specific keyed connections | Helps reduce incorrect cable connections during installation |
| Specification | Technical Details |
|---|---|
| Hydraulic Control Type | Electric hydraulic blade control |
| Supported Valve Type | Compatible On/Off solenoid valves |
| Valve Control Voltage | 12 V DC valve output as described in system operation |
| Blade Functions | Raise and Lower |
| Automatic Hydraulic Control | Receiver-based automatic raise/lower correction |
| Manual Hydraulic Control | Operator-controlled blade adjustment |
| Raise Response Adjustment | Independent |
| Lower Response Adjustment | Independent |
| Valve Speed Range | 20-100 |
| Hydraulic Mast Support | Configurable |
| Electric Mast Support | PM400-CAN |
| Remote Blade Control | RS100-CAN |
| Machine-Specific Integration | Valve interface and mounting requirements may vary by machine |
| Specification | Technical Details |
|---|---|
| Above Grade Indicator | Red LEDs |
| On Grade Indicator | Green LEDs |
| Below Grade Indicator | Yellow LEDs |
| Lost Laser Indication | Flashing LED position indication |
| Last Beam Position Indication | Last detected laser position can be visually indicated |
| Receiver Connection Error | Control panel communication warning |
| Blade Direction Display | Displayed on CP210-CAN |
| Current Accuracy Display | Displayed on CP210-CAN |
| Operating Mode Display | Manual / Automatic / Survey |
| Software Version Display | Available through user menu |
| Serial Number Display | Device serial number accessible through system menu |
| Active Time Counter | Operating time monitoring |
| Inactive Time Counter | Inactive system time monitoring |
| Internal Buzzer | Configurable in Automatic mode |

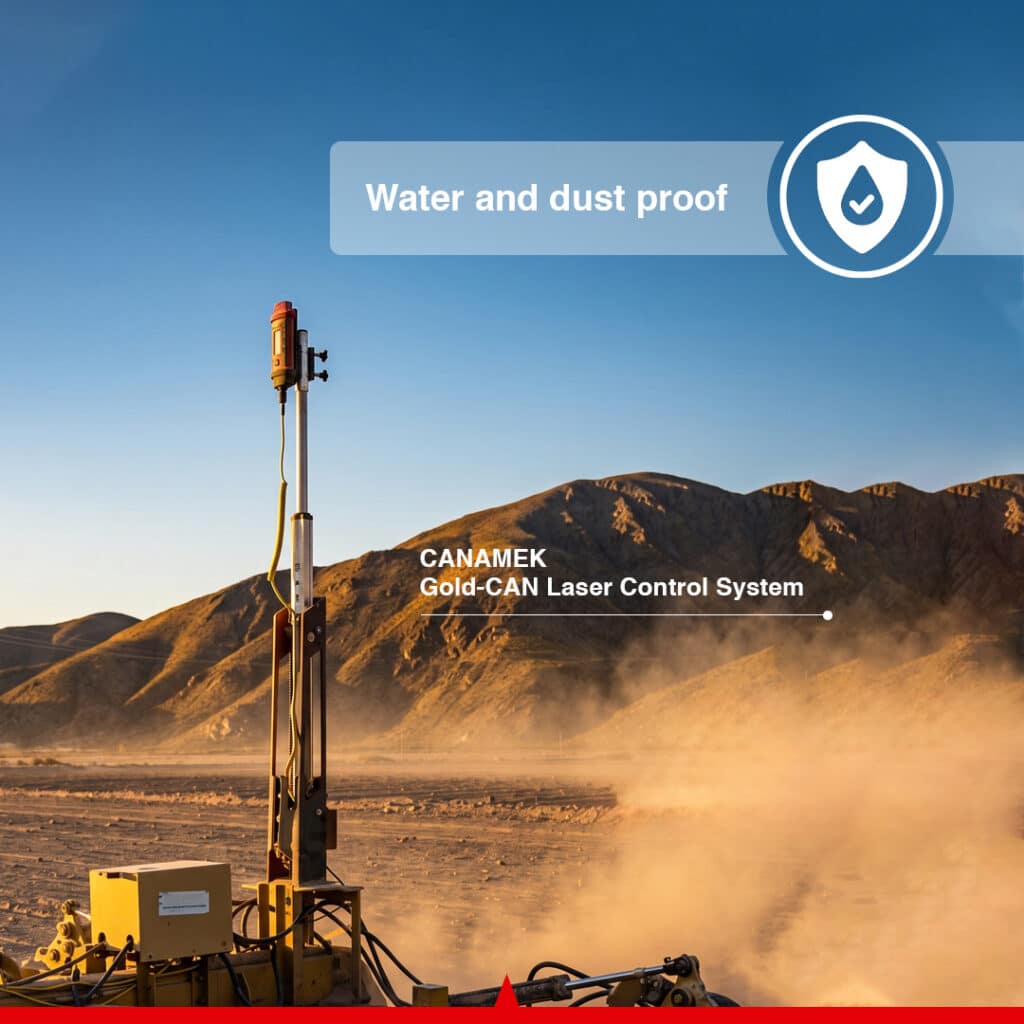

Grade agricultural fields against a rotating laser reference using visual guidance or automatic blade control through compatible hydraulic valves.
Shape field surfaces to planned slopes that support drainage toward designated outlets, using a compatible slope-capable laser transmitter.
Follow level, single-slope or dual-slope reference planes according to the capabilities of the external laser transmitter.
Maintain blade elevation during soil redistribution with real-time laser guidance and adjustable hydraulic response.
Use selectable control tolerances to guide final surface grading with compatible blade-controlled equipment.

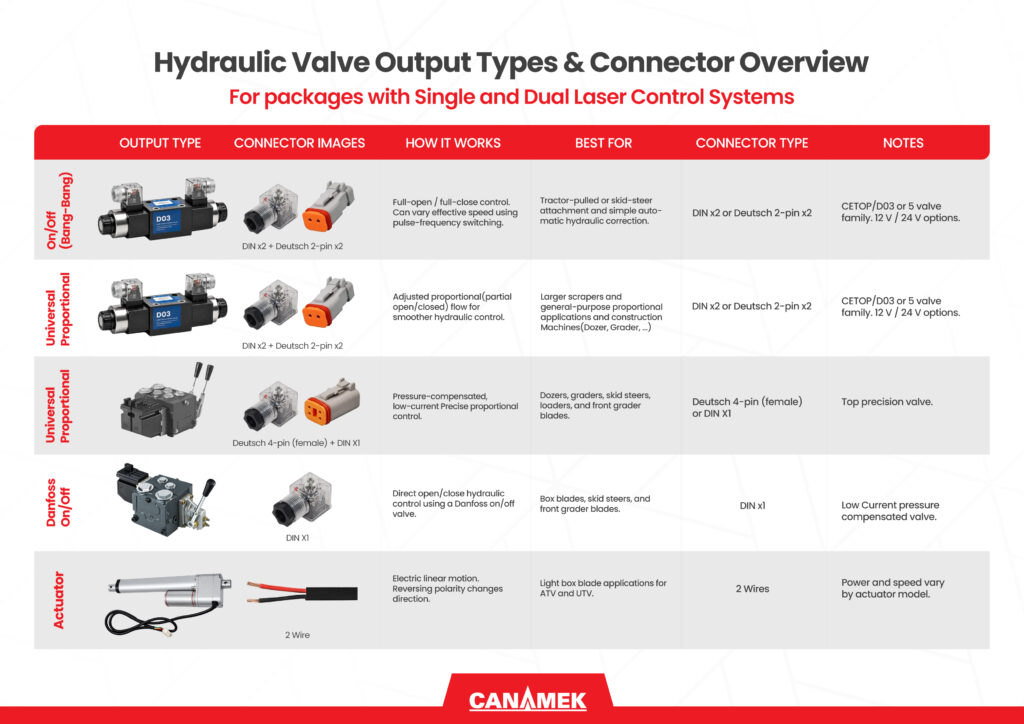

Control blade raising and lowering on compatible scrapers and land levelers, or retain operator control in Manual mode.
Provide laser elevation guidance for compatible trenching equipment, subject to appropriate mounting and machine-specific control integration.
Assess high and low areas and evaluate slopes relative to a reference point using Survey mode with the optional PM400-CAN electric mast.
Be the first to review this product.
Every unit ships with everything needed to put it to work in under an hour.
Get sizing help and tech answers from a real human, in <2 min.
Call +1 (855) CANAMEKTell us your acreage and crop, get a turnkey estimate in 24 hours.
Email sales →
Write a review
