CANAMEK-Gold-CAN Laser Control System & Quick connect Valve block and hoses
- CP210-CAN control box and MD205-CAN receiver with 360° laser detection
- Automatic and Manual modes; Survey mode with an optional PM400-CAN power mast
- Selectable accuracy settings: ±0.12 in / ±3 mm, ±0.35 in / ±9 mm and ±0.55 in / ±14 mm
- Hydraulic valve assembly available with or without a relief valve
- Two hoses per set, each 7 ft / 2.13 m long with a ½ in / 12.7 mm diameter
- 2-Year Free Warranty
- Made in Canada
- After-Sales Support, 7 Days a Week
Ships in 24h
Extend to 5
Available add-on

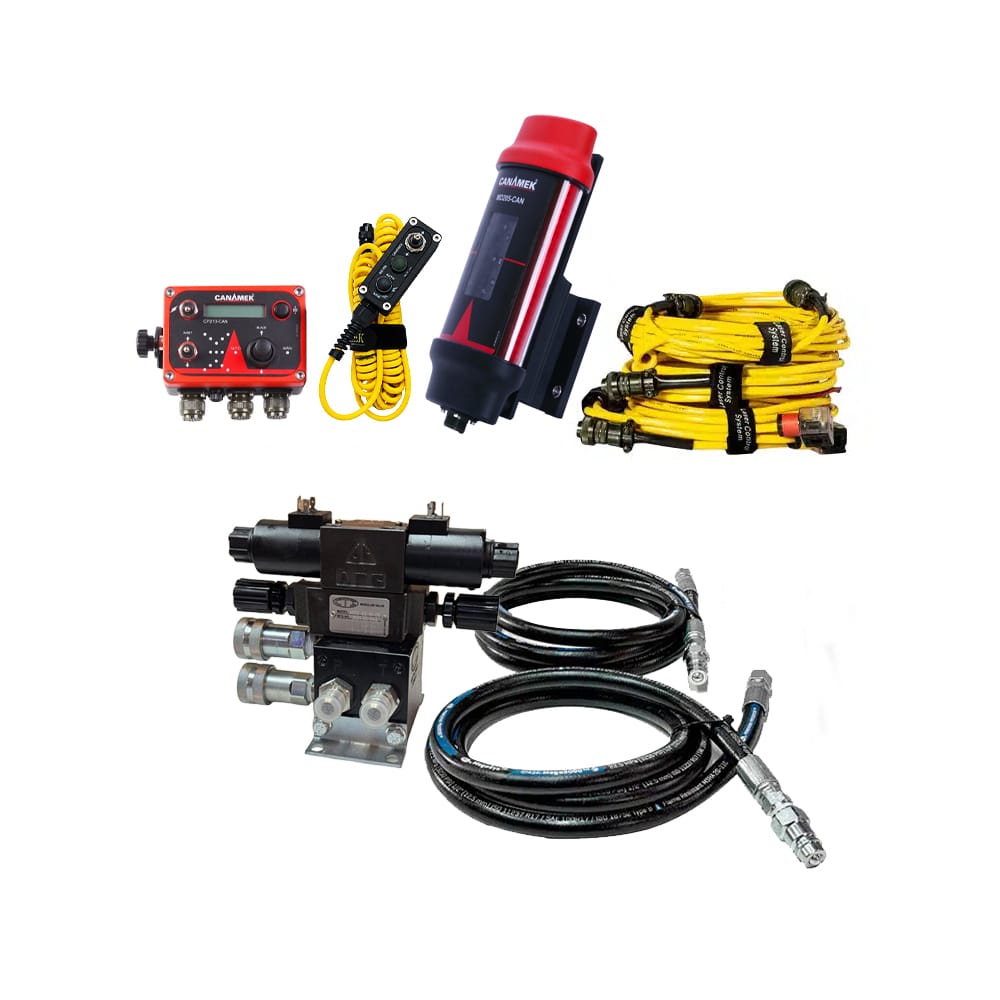

CANAMEK-Gold-CAN Laser Control System & Quick connect Valve block and hoses
The CANAMEK-Gold-CAN Laser Control System & Quick connect Valve block and hoses is a laser land leveling system with hydraulic valve equipment supplied alongside the controller and receiver. It combines the CP210-CAN control box, MD205-CAN laser receiver, system cables and carry case with a directional solenoid valve assembly, quick-connect valve block and a two-hose set.
The package uses the same control platform as the CANAMEK Gold-CAN Laser Control System. Its distinguishing feature is the added hydraulic equipment: customers can select a valve assembly with or without a relief valve, and both configurations include two hoses, each 7 ft / 2.13 m long with a ½ in / 12.7 mm diameter.
Designed for farmers, land-leveling contractors and operators of compatible grading machinery, the system provides visual grade guidance or automatic blade raise/lower control. A compatible rotating red-beam laser establishes the reference plane; the receiver detects the beam, and the controller uses that information to guide the operator or command the hydraulic valve. The working reference may be level, single slope or dual slope, depending on the separate laser transmitter.
Complete Laser Reference and Hydraulic Blade-Control Workflow
The Gold-CAN package connects laser grade detection with the machine’s blade-control circuit. A compatible laser transmitter is required separately.
- Establish the reference plane. Set the rotating laser to the required elevation and, where supported by the transmitter, the required slope.
- Position the receiver. Mount the MD205-CAN on the compatible machine or implement and establish its relationship to the blade’s working position.
- Detect the laser beam. The receiver identifies the beam position within its detection window and sends grade information to the CP210-CAN through the CAN connection.
- Select the operating mode and tolerance. Choose Manual or Automatic operation and the accuracy setting appropriate to the task. Adjust blade raise and lower response to suit the hydraulic installation.
- Control blade elevation. In Automatic mode, the controller commands the compatible solenoid valve to raise or lower the blade. In Manual mode, the operator makes hydraulic adjustments using the grade indicators.
- Monitor operation. Use the control display and receiver LEDs to follow grade position, blade direction and system status.
Survey mode adds relative-elevation assessment when the optional PM400-CAN Electric Power Mast is installed and configured.
Package Contents and Valve Selection
The main purchasing choice is the hydraulic valve configuration. The Gold-CAN controller, receiver and confirmed hose set remain the same across the two relief-valve options.
Option 1: Hydraulic Valve Assembly with Relief Valve
Includes the Gold-CAN control system, a hydraulic valve assembly with a relief valve, the quick-connect valve block and two supplied hoses. Select this version when it matches the hydraulic arrangement specified for the machine and implement.
Option 2: Hydraulic Valve Assembly without Relief Valve
Includes the Gold-CAN control system, a hydraulic valve assembly without a relief valve, the quick-connect valve block and the same two-hose set. Confirm this configuration against the machine’s hydraulic circuit before ordering.
Equipment Required Separately and Optional Accessories
A compatible rotating red-beam laser transmitter is required to establish the reference plane. The transmitter, its tripod and the grading machine or implement are outside this bundle.

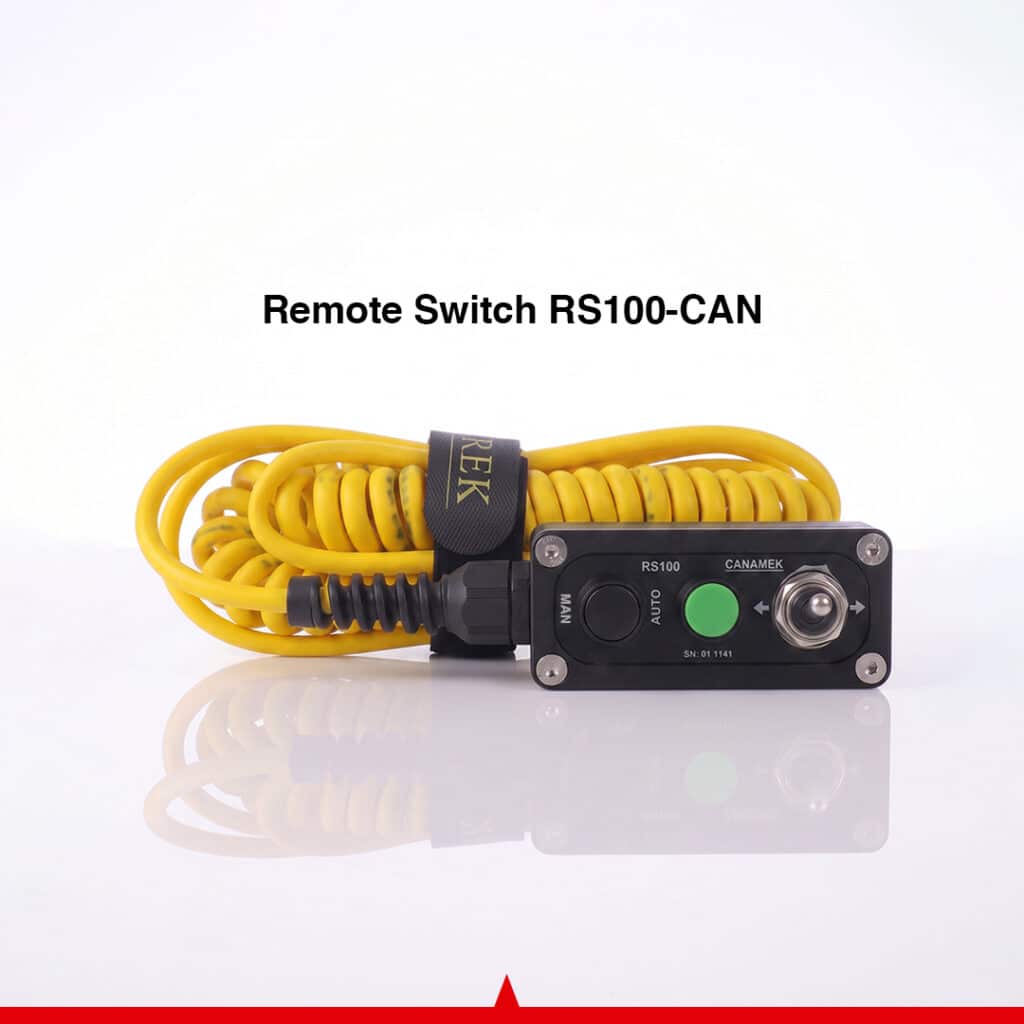

The PM400-CAN power mast and RS100-CAN wired remote switch are optional accessories. The mast provides receiver-height adjustment and supports Survey mode; the remote provides blade up/down and Manual/Automatic controls. Machine-specific mounting and hydraulic interface requirements must be checked for the intended installation.
Manual, Automatic and Survey Modes
Manual Grade Guidance
Manual mode displays the receiver’s position relative to the laser reference while the operator controls the machine hydraulics. Above-grade, on-grade and below-grade indications provide a continuous reference for blade adjustment.
This mode suits work where the operator needs direct control of blade movement while retaining laser guidance.
Automatic Blade Raise and Lower Control
In Automatic mode, the CP210-CAN processes receiver data and sends commands to the hydraulic solenoid valve. The system raises or lowers the blade to bring the receiver back into the selected on-grade band.
Automatic correction can reduce the need for repeated manual blade adjustments during compatible grading operations. Hydraulic integration and response settings must suit the machine and implement.
Survey Mode with the Optional Power Mast
With the optional PM400-CAN Electric Power Mast, Survey mode supports evaluation of high and low points relative to a chosen reference. It can be used for land-elevation checks, road-slope assessment and related surveying tasks before or during grading.
The power mast is required for the documented Survey-mode configuration and is not included in this package.
360° Laser Detection and Clear Grade Indication
The MD205-CAN laser receiver provides 360° laser capture and a 7.48 in / 190 mm measurement window. Eight distinct beam-detection positions provide grade-position information for the control system.
Flashing LEDs identify the receiver’s relationship to the reference plane:
- Red: above grade
- Green: on grade
- Yellow: below grade
Real-time laser bounce filtration and adjustable signal smoothing support stable grade detection under machine movement and vibration. The receiver’s mechanical clamp provides the documented mounting interface for compatible machine installations.
Selectable Accuracy Settings for Different Grading Tasks
The system offers three selectable accuracy settings:
- ±0.12 in / ±3 mm
- ±0.35 in / ±9 mm
- ±0.55 in / ±14 mm
These settings allow the operator to select the receiver/control tolerance appropriate to the task. A tighter setting narrows the on-grade band; a wider setting permits a larger deviation before correction is required.
These tolerances describe the selected control band. Finished-surface performance also depends on the laser reference, machine setup and hydraulic response.
Hydraulic Valve Control with Adjustable Raise and Lower Response
The included CS-G02-C6-D1-N is an on/off directional solenoid valve with a 12 V DC coil specification and DIN electrical connection. It is supplied with the manifold, mounting hardware, quick-connect valve block and hose set identified for this package.
The CP210-CAN control box allows raise and lower response to be adjusted independently from 20 to 100 through the control menu. This provides separate tuning of upward and downward blade movement to suit the compatible hydraulic installation.
The valve documentation identifies wet-tube construction, manual override, moisture-proof construction, Class H coil insulation and LED indication. Relief-valve availability is a separate package selection: both versions are available with the confirmed hose set.
The controller and receiver accept 12–24 V DC, while the documented valve coil is rated at 12 V DC. Electrical integration must respect the rating of each component.
Quick-Connect Valve Block and Included Hose Set
The hydraulic connection equipment is supplied with the laser-control package so that the valve block and hoses can be considered together during installation planning.
Every set includes:
- Two hydraulic hoses
- Length of each hose: 7 ft / 2.13 m
- Diameter of each hose: ½ in / 12.7 mm
- Quick-connect valve block
The same confirmed hose quantity and dimensions apply to both relief-valve options. Confirm the hydraulic circuit, coupler compatibility and hose routing for the intended machine before installation.
CAN Communication and Industrial System Cables
The MD205-CAN communicates with the controller and receives power through its CAN connection. Dedicated power, receiver and blade/valve cables connect the principal system components.
The documented cable construction includes oil resistance, suitability for low temperatures and resistance to high mechanical stress. Circular MIL-style connectors and water- and dust-resistant connections support use on agricultural and grading machinery.
Application-specific keyed connections help distinguish the system interfaces during installation. Optional mast and remote accessories use their corresponding connections and cables.
Protected Components for Field Operation
The CP210-CAN control box carries an IP66 ingress-protection rating, and the MD205-CAN receiver carries an IP68 rating. The receiver combines an aluminum-alloy body with a mechanical clamp mount.
The controller’s backlit information display and the receiver’s visible grade LEDs allow the operator to monitor system status and grade position. Receiver/control-box communication warnings and short-circuit protection provide additional operating safeguards.
Reduce Repeated Manual Blade Corrections
Maintaining grade by hand requires the operator to watch the reference and repeatedly adjust the hydraulic controls. In Automatic mode, Gold-CAN uses receiver feedback to command the blade’s raise/lower circuit.
This can reduce the amount of continuous manual correction required during compatible grading work while retaining Manual mode for tasks that need direct operator control.
Maintain a Consistent Reference Across Level and Sloped Work
A common laser plane gives the receiver and controller a consistent elevation reference as the machine moves across the working area. Selectable control tolerances and independent raise/lower settings allow the system response to be matched to the grading task.
Where the separate transmitter supports single- or dual-slope operation, the system can follow that sloped reference. The slope is established by the transmitter and project setup.
Support Planned Field Drainage and Surface Preparation
Agricultural grading often requires elevations to be controlled so that the finished surface follows a planned level or slope. Gold-CAN provides the grade reference and compatible hydraulic blade control used to carry out that work.
Following the specified surface grade can support field preparation and surface-drainage projects. The required slope, outlet arrangement and broader drainage design remain project-specific decisions.
Controller Settings, Diagnostics and Support
The CP210-CAN provides on-controller settings for valve response, mast type, measurement units, laser signal smoothing and the Automatic-mode buzzer. It also provides a factory-reset function and a password-protected technical parameter menu.
Available system information includes:
- Operating mode and selected accuracy
- Blade movement direction and grade position
- Receiver communication status
- Lost-laser and last-detected-position indications
- Software version and device serial number
- Active and inactive operating-time counters
These functions give operators and technicians information for setup and troubleshooting. CANAMEK provides after-sales support seven days a week.
Solutions for Laser Land Leveling and Hydraulic Grade Control
The package is intended for compatible laser-guided agricultural and grading work, including:
- Agricultural land leveling and field grading
- Farm surface-drainage grading
- Scraper and land-leveler blade control
- Construction finish grading and compatible earthmoving work
- Laser-referenced slope work
- Compatible trenching applications
- Land and road elevation surveying with the optional PM400-CAN power mast
Machine suitability depends on the blade or implement, hydraulic interface, electrical arrangement and mounting configuration.
Commercial Package Benefits
This bundle brings the Gold-CAN control equipment and specified hydraulic connection components into one purchasing configuration.
- CP210-CAN control box and MD205-CAN laser receiver supplied together
- Directional valve, D03 manifold and valve mounting hardware included
- Quick-connect valve block and two dimensioned hoses included
- Choice of valve assembly with or without a relief valve
- Power, receiver and blade/valve cables included
- Aluminum carry case included
- 2-Year Free Warranty
- Made in Canada
- After-Sales Support, 7 Days a Week
Key Features at a Glance
- CAN-based laser machine control
- CP210-CAN control box and MD205-CAN receiver
- Automatic hydraulic blade raise/lower control
- Manual operation with visual laser grade guidance
- Survey mode with the optional PM400-CAN power mast
- Compatible red-beam rotating laser reference
- Level, single-slope and dual-slope references, depending on the transmitter
- Three selectable accuracy settings: ±0.12 in / ±3 mm, ±0.35 in / ±9 mm and ±0.55 in / ±14 mm
- 360° receiver capture and eight beam-detection positions
- 7.48 in / 190 mm receiver measurement window
- Red, green and yellow grade LEDs
- Real-time laser bounce filtration and adjustable smoothing
- Independent blade raise and lower response settings from 20 to 100
- CS-G02-C6-D1-N directional solenoid valve with DIN connection
- Hydraulic assembly available with or without a relief valve
- Quick-connect valve block and two included hoses
- Each hose: 7 ft / 2.13 m long and ½ in / 12.7 mm in diameter
- IP66 controller and IP68 laser receiver
- Short-circuit protection and receiver communication warnings
- Electric or hydraulic mast configuration support
- Optional RS100-CAN wired remote connection
- Industrial system cables and aluminum carry case
- Two-year warranty and seven-day-a-week after-sales support
Why Choose the CANAMEK-Gold-CAN Laser Control System & Quick connect Valve block and hoses?
The Gold-CAN package combines laser grade detection, operator guidance, automatic blade control and the specified hydraulic valve-and-hose equipment in one configuration. Customers can select the relief-valve version that matches the planned installation while retaining the same control system and hose dimensions.
For farmers: the system provides laser-based blade guidance and control for field leveling, surface preparation and farm-drainage grading on compatible equipment.
For grading contractors: selectable control tolerances, adjustable hydraulic response and Manual/Automatic operation provide practical tools for maintaining a defined laser reference during agricultural and construction grading work.
For operators who also need elevation assessment: the optional PM400-CAN power mast adds the documented receiver-positioning and Survey-mode functions.
Frequently Asked Questions
What is the CANAMEK-Gold-CAN package with quick-connect valve block and hoses?
It is a laser machine-control package combining the CP210-CAN control box, MD205-CAN receiver, system cables and aluminum carry case with a directional hydraulic valve assembly, quick-connect valve block and two hoses. It provides Manual grade guidance and Automatic blade raise/lower control on compatible machinery.
How does this package differ from the standard Gold-CAN Laser Control System?
It uses the same Gold-CAN control platform and adds the specified hydraulic valve assembly, quick-connect valve block and hose set. The valve assembly is available with or without a relief valve.
What is included in the package?
The package includes the CP210-CAN control box, MD205-CAN laser receiver, power cable, blade/valve cable, receiver connection cable, aluminum carry case, CS-G02-C6-D1-N directional valve, D03 manifold, plated-steel manifold mounting bracket kit, G02 valve bolt kit, quick-connect valve block and two hydraulic hoses. Relief-valve inclusion depends on the selected option.
Can I choose a valve assembly with or without a relief valve?
Yes. Both configurations are available. Select the version appropriate to the machine’s hydraulic circuit and confirm the installation requirements with CANAMEK.
How many hoses are included, and what are their dimensions?
Each set includes two hoses. Each hose is 7 ft / 2.13 m long with a diameter of ½ in / 12.7 mm. These dimensions apply to both relief-valve options.
Are the laser transmitter, tripod and grading implement included?
No. This bundle supplies the listed control-system and hydraulic components. A compatible rotating red-beam laser transmitter, its support equipment and the grading machine or implement are supplied separately.
Are the PM400-CAN power mast and RS100-CAN remote included?
No. The PM400-CAN power mast and RS100-CAN wired remote switch are optional accessories. The mast supports receiver-height adjustment and the documented Survey-mode configuration; the remote provides blade up/down and Manual/Automatic controls.
How does Automatic mode control the blade?
The MD205-CAN detects the laser beam and sends grade information to the CP210-CAN. The controller then commands the compatible hydraulic solenoid valve to raise or lower the blade toward the selected on-grade band.
Can I operate the system manually?
Yes. Manual mode provides visual above-grade, on-grade and below-grade information while the operator controls the machine hydraulics directly.
What is required to use Survey mode?
The documented Survey-mode configuration requires the optional PM400-CAN Electric Power Mast. With the mast installed and configured, the system supports relative-elevation and slope assessment for land and road applications.
Which accuracy settings are available?
The selectable settings are ±0.12 in / ±3 mm, ±0.35 in / ±9 mm and ±0.55 in / ±14 mm. These define the selected receiver/control tolerance and are not an unconditional guarantee of finished-surface accuracy.
Can the system work with level, single-slope and dual-slope references?
Yes. The system follows the laser reference plane, which may be level, single slope or dual slope depending on the capabilities and setup of the separate laser transmitter.
Which machines can use this package?
The documented applications include compatible scrapers, land levelers, grading machines, trenching machines and other blade-controlled equipment. Suitability depends on the implement, hydraulic interface, electrical arrangement and receiver mounting.
What type of laser transmitter does the system require?
It requires a compatible rotating red-beam laser transmitter. The transmitter establishes the elevation or slope reference detected by the MD205-CAN receiver and is supplied separately from this bundle.
Does the quick-connect equipment make the package compatible with every machine?
No. The machine’s hydraulic circuit, electrical ratings, coupler compatibility, hose routing and mounting requirements must be checked. The supplied quick-connect block and hoses form part of the installation, but machine-specific integration requirements can still apply.
What electrical supply do the components require?
The CP210-CAN control box and MD205-CAN receiver are specified for 12–24 V DC. The documented CS-G02-C6-D1-N valve uses a 12 V DC coil. Electrical integration must match the rating of each component.
Can blade raising and lowering be adjusted separately?
Yes. The CP210-CAN provides independent raise and lower response settings from 20 to 100 through its control menu, allowing the hydraulic response to be tuned for the compatible installation.
Are the controller and receiver protected against dust and water?
The CP210-CAN control box is rated IP66, and the MD205-CAN laser receiver is rated IP68. The documented system connectors are water- and dust-resistant.
What do the receiver’s LED colors mean?
Red indicates above grade, green indicates on grade and yellow indicates below grade. The system also provides flashing position indications for lost-laser conditions and can display the last detected laser position.
Does the system show a receiver communication fault?
Yes. The CP210-CAN provides an error indication if communication between the receiver and control box is interrupted. The controller also includes short-circuit protection.
How does the receiver communicate with the controller?
The MD205-CAN uses a CAN data and power connection. It sends laser grade information to the CP210-CAN and receives power through that connection.
What should I confirm before choosing the hydraulic configuration?
Confirm the machine and implement, the required relief-valve configuration, electrical supply, hydraulic operating requirements, coupler compatibility and mounting arrangement. CANAMEK should review the application so that the selected assembly matches the intended installation.
What warranty and support are included?
The package includes a 2-Year Free Warranty and CANAMEK After-Sales Support, 7 Days a Week.
Full data sheet
System and Package
| Specification | Value |
|---|---|
| Product name | CANAMEK-Gold-CAN Laser Control System & Quick connect Valve block and hoses |
| Product SKU | CNMK-LCS-1003 |
| System type | CAN-based laser machine control and automatic grade control |
| Core control platform | CANAMEK Gold-CAN |
| Included control box | CP210-CAN |
| Included laser receiver | MD205-CAN |
| Primary control function | Blade raise/lower control relative to a laser reference |
| Operating modes | Manual, Automatic and Survey |
| Survey-mode requirement | Optional PM400-CAN Electric Power Mast |
| Laser compatibility | Compatible rotating red-beam laser transmitters |
| Reference-plane types | Level, single slope or dual slope, depending on the transmitter |
| Communication architecture | CAN bus |
| Selectable accuracy settings | ±0.12 in / ±3 mm; ±0.35 in / ±9 mm; ±0.55 in / ±14 mm |
| Machine applications | Compatible scrapers, land levelers, grading machines, trenching machines and blade-controlled equipment |
| Included case | Aluminum carry case |
| Laser transmitter | Required to establish the reference plane; supplied separately |
| Laser tripod | Supplied separately |
| Grading machine or implement | Supplied separately |
| Country of manufacture | Canada |
| Warranty | 2-Year Free Warranty |
| After-sales support | 7 Days a Week |
CP210-CAN Control Box
| Specification | Value |
|---|---|
| Component type | CAN machine-control panel |
| Operating voltage | 12–24 V DC |
| Ingress protection | IP66 |
| Processing | Microprocessor-based control |
| Operating modes | Manual, Automatic and Survey |
| Accuracy settings | ±0.12 in / ±3 mm; ±0.35 in / ±9 mm; ±0.55 in / ±14 mm |
| Display | Backlit system-information display |
| Display information | Operating mode, selected accuracy, blade movement direction and menu information |
| Grade display | LED grade-position indication |
| Blade-control functions | Raise and lower |
| Automatic-control output | Compatible hydraulic solenoid-valve control |
| Valve-control voltage | 12 V DC output, as specified in the reference system's hydraulic-interface table |
| Raise-response setting | Independently adjustable from 20 to 100 |
| Lower-response setting | Independently adjustable from 20 to 100 |
| Published adjustment span | 80-step range |
| Receiver monitoring | Receiver/control-box connection error indication |
| Electrical protection | Short-circuit protection |
| Automatic-mode buzzer | User-selectable On/Off |
| Mast configurations | Electric or hydraulic mast support |
| Remote connection | Optional RS100-CAN remote switch |
| Receiver/mast interface | Dedicated CAN receiver/electric-mast connector |
| Hydraulic interface | Dedicated hydraulic-valve cable connector |
| Power interface | Dedicated machine-power cable connector |
| Setup functions | Valve response, mast type, buzzer, measurement units and laser smoothing |
| Factory reset | User-accessible function |
| Technical menu | Password-protected parameter menu |
MD205-CAN Laser Receiver
| Specification | Value |
|---|---|
| Component type | 360° CAN laser machine receiver |
| Body material | Aluminum alloy |
| Ingress protection | IP68 |
| Laser capture | 360° |
| Measurement window | 7.48 in / 190 mm |
| Weight | 6.28 lb / 2.85 kg |
| Operating voltage | 12–24 V DC |
| Communication | CAN bus |
| Power connection | Power supplied through the CAN connection |
| Laser-beam positions | Eight distinct detection positions |
| Selectable accuracy settings | ±0.12 in / ±3 mm; ±0.35 in / ±9 mm; ±0.55 in / ±14 mm |
| Above-grade indication | Red LEDs |
| On-grade indication | Green LEDs |
| Below-grade indication | Yellow LEDs |
| Grade display | High-visibility flashing LEDs |
| Signal processing | Real-time laser bounce filtration |
| System smoothing | Adjustable laser signal smoothing |
| Mounting | Mechanical clamp |
| Receiver interface | CAN data and power connection |
| Supported operation | Manual grade guidance and automatic machine grade control |
Hydraulic Valve, Manifold and Mounting Equipment
| Specification | Value |
|---|---|
| Directional-valve model | CS-G02-C6-D1-N |
| Valve actuation | Electrical on/off solenoid control |
| Valve function | Opening, closing or changing hydraulic-flow direction |
| Coil voltage | 12 V DC; D1 voltage code |
| Electrical connector | DIN; N connector code |
| Manifold interface | D03 |
| Valve mounting standard | ISO 4401-03-02-0-94, as listed for the valve series |
| Coil insulation | Class H |
| Tube construction | Wet tubes |
| Manual override | Provided; subject to the valve manufacturer's operating conditions |
| Environmental construction | Moisture-proof construction, as described by the supplier |
| Electrical indication | LED indication |
| Relief-valve options | With relief valve or without relief valve |
| Quick-connect valve block | Included |
| Manifold mounting bracket | Plated-steel mounting bracket kit |
| Valve fasteners | G02 valve bolt kit |
| Controlled blade functions | Raise and lower through the compatible hydraulic installation |
| Machine integration | Hydraulic, electrical and mounting compatibility must be confirmed for the machine |
Hydraulic Hose Set
| Specification | Value |
|---|---|
| Hose quantity | Two per set |
| Length of each hose | 7 ft / 2.13 m |
| Hose diameter | ½ in / 12.7 mm |
| Package availability | Included with both relief-valve options |
Included Electrical Cables and Connectors
| Cable or Property | Specification |
|---|---|
| Power cable | 13.12 ft / 4 m; machine battery to CP210-CAN |
| Blade/valve cable | 24.77 ft / 7.55 m; CP210-CAN to hydraulic-valve assembly |
| Receiver connection cable | 36.1–45.9 ft / 11–14 m; receiver communication and system connection |
| Cable jacket | Oil-resistant |
| Mechanical suitability | Resistance to high mechanical stress |
| Temperature suitability | Suitable for low-temperature applications |
| Connector type | Circular MIL-style connectors |
| Connector protection | Water- and dust-resistant |
| Connection layout | Application-specific keyed connections |
System Indicators and Diagnostics
| Function | Available Indication or Setting |
|---|---|
| Above grade | Red LEDs |
| On grade | Green LEDs |
| Below grade | Yellow LEDs |
| Lost laser | Flashing LED position indication |
| Last beam position | Visual indication of the last detected position |
| Receiver connection fault | Control-box communication warning |
| Blade direction | Displayed on CP210-CAN |
| Selected accuracy | Displayed on CP210-CAN |
| Operating mode | Manual, Automatic or Survey indication |
| Software version | Accessible through the user menu |
| Device serial number | Accessible through the system menu |
| Active time | Operating-time counter |
| Inactive time | Inactive-time counter |
| Internal buzzer | Configurable in Automatic mode |
Optional PM400-CAN Electric Power Mast (Not Included)
| Specification | Value |
|---|---|
| Component type | Electric laser-receiver power mast |
| Body construction | Steel with aluminum components |
| Measurement system | Digital position measurement |
| Operating voltage | 10–24 V DC |
| Stroke | 39.37 in / 1,000 mm |
| Position accuracy | ±0.04 in / ±1 mm |
| Measurement units | Imperial and metric |
| Control | Raise/lower operation from CP210-CAN |
| Receiver mounting | Integrated receiver mounting interface |
| Communication | CAN-based system integration |
| Survey-mode support | Supported when installed and configured |
| High-vibration mounting | Shock mount recommended in the system reference |
| Mast-to-controller data cable | 27.89 ft / 8.5 m; optional mast configuration |
| Mast-to-receiver coil data cable | 8.2–18.0 ft / 2.5–5.5 m; optional mast configuration |
Optional RS100-CAN Remote Switch (Not Included)
| Specification | Value |
|---|---|
| Component type | Wired remote machine-control switch |
| Housing | Aluminum |
| Blade controls | Up and Down |
| Mode controls | Automatic and Manual |
| Switch construction | Heavy-duty switches |
| Environmental construction | Water- and dust-resistant switch design |
| Cable | Coiled remote cable |
| Cable construction | High mechanical resistance |
| Connection | Dedicated CP210-CAN remote-control connector |
Where it earns its keep
Agricultural Land Leveling
Control the blade of a compatible land leveler or scraper against a rotating laser reference to prepare a field at the specified level or slope. Use Manual guidance or Automatic raise/lower correction according to the task.
Farm Surface-Drainage Grading
Grade field surfaces to a planned laser-referenced slope for surface-drainage work. The separate transmitter establishes the reference plane, while the receiver and controller guide or control blade elevation.
Scraper and Land-Leveler Control
Equip a compatible hydraulically controlled scraper or land leveler with laser grade feedback and automatic blade elevation adjustment. Select the valve configuration and confirm the machine interface before installation.
Construction Finish Grading
Use compatible blade-controlled grading equipment to follow a specified laser plane during surface preparation and finishing work. Selectable control tolerances and independent raise/lower settings allow the control response to be configured for the installation.
Single- and Dual-Slope Grading
Follow a single- or dual-slope reference generated by a compatible slope-capable laser transmitter. This supports grading work that requires a defined sloped plane rather than a uniformly level reference.
Compatible Trenching Applications
Use laser grade information on compatible trenching machinery to monitor or control elevation relative to the selected reference. The machine's implement, receiver mounting and hydraulic interface must support the intended configuration.
Land and Road Elevation Surveying
Add the optional PM400-CAN power mast to use the documented Survey-mode configuration for assessing elevation differences and slopes relative to a selected reference point.
Be the first to review this product.
Ready to deploy.
Out of the case.
Every unit ships with everything needed to put it to work in under an hour.
- Full system unit
- Mounting hardware
- Power cable + charger
- Hard transit case
- Quick-start guide + warranty card
Build the full system
Get sizing help and tech answers from a real human, in <2 min.
Call +1 (855) CANAMEKTell us your acreage and crop, get a turnkey estimate in 24 hours.
Email sales →
Write a review
