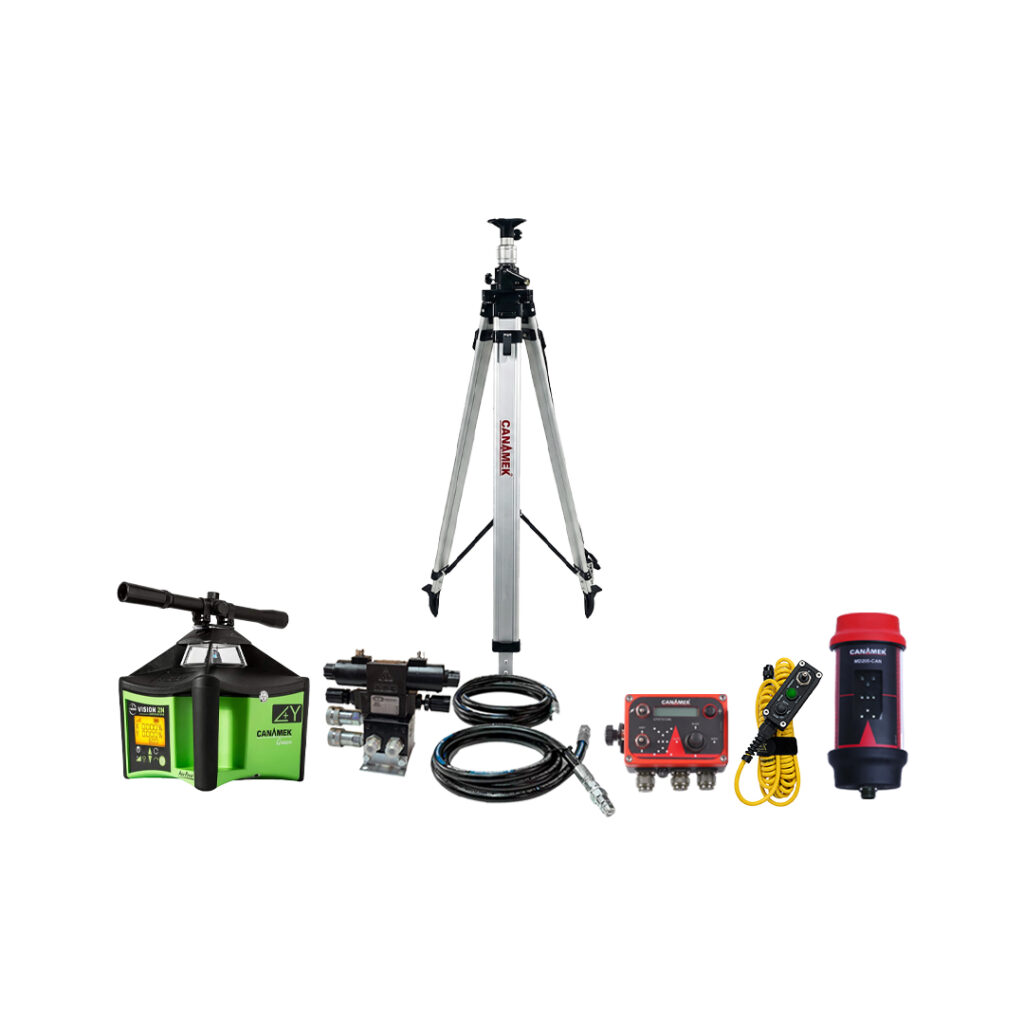

Accurate field grading is essential for efficient irrigation, controlled drainage, uniform crop establishment, and productive use of agricultural land. The Laser Land Leveling Complete Starter Package 2 brings the principal laser, machine-control, mounting, and hydraulic components together in one integrated package for compatible tractors, scrapers, land levelers, and grading implements.

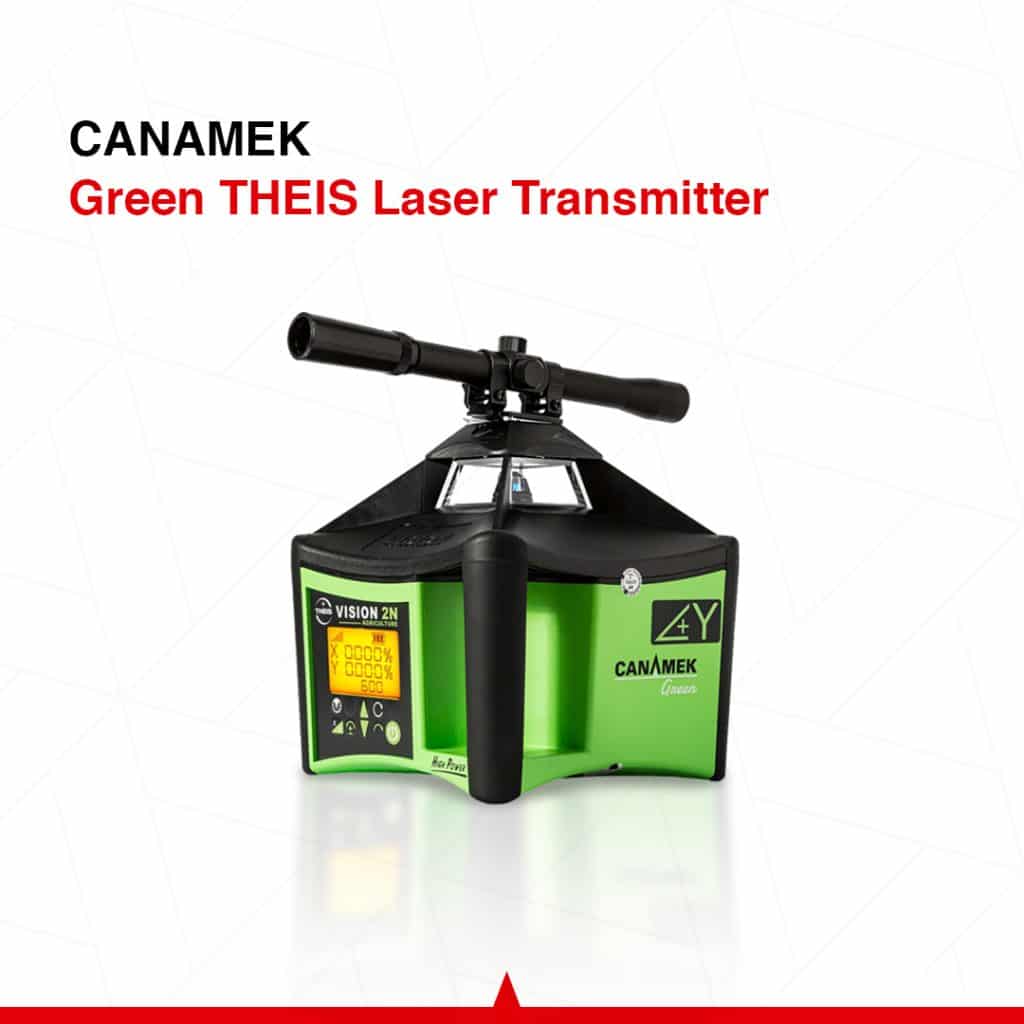

At the center of the package is the THEIS Vision 2N Agriculture Dual Slope Rotary Laser Transmitter. Developed specifically for agricultural work, it generates a stable horizontal or dual-slope reference plane across the field. Independent grade settings on the X and Y axes, each adjustable up to ±15%, allow operators to create a level surface, a single directional fall, or a compound slope for irrigation and drainage requirements.

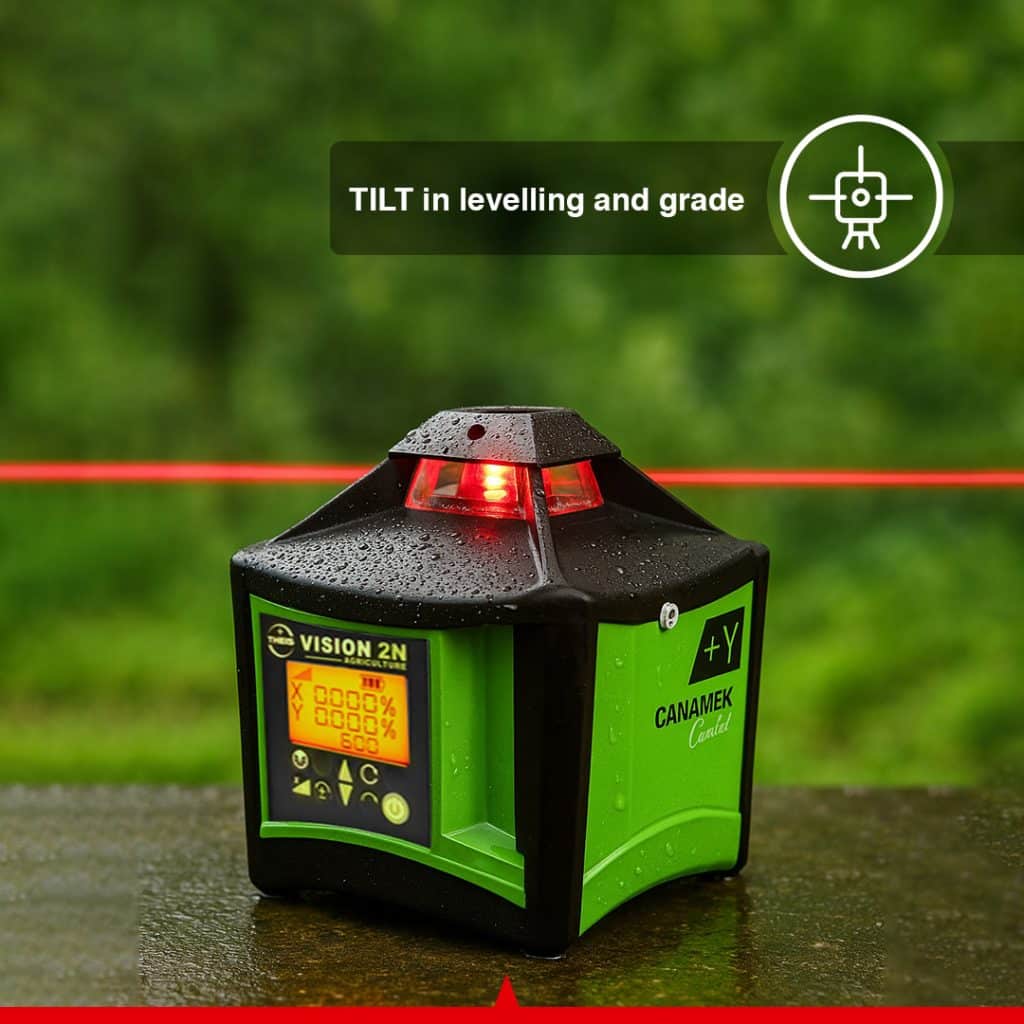

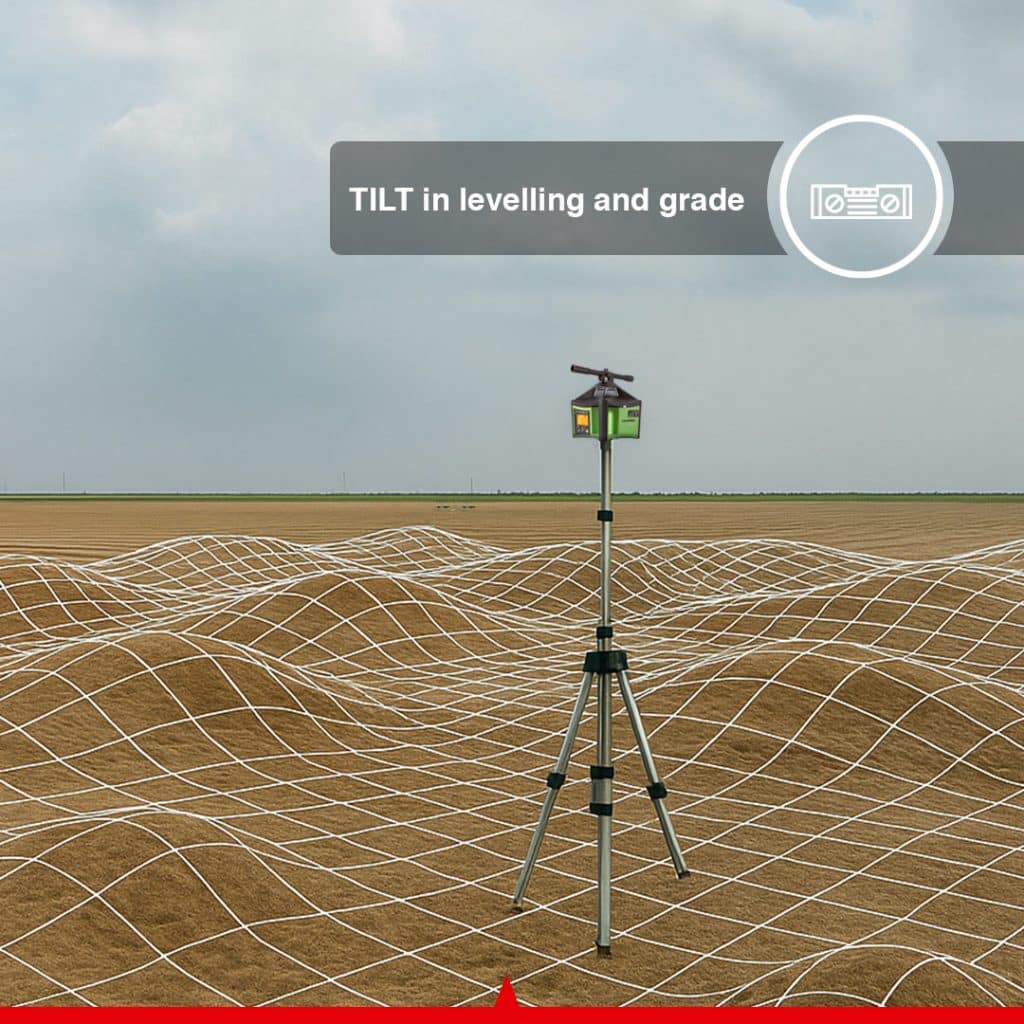

The transmitter’s AutoSlope system continuously monitors the laser plane and corrects changes caused by mechanical movement or temperature variation. If a major disturbance occurs, the TILT function stops the measurement and displays an error instead of allowing work to continue from an incorrect reference.
Grade-value memory, a partial beam-masking function, Windy mode, an illuminated display, a telescope, and radio remote control support practical day-to-day field operation.
Automatic Grade Control at the Machine
The CANAMEK MD205-CAN laser receiver captures the rotating laser signal through 360 degrees and sends real-time elevation information to the CP210-CAN control box. The receiver provides a 190 mm detection window, selectable 3, 9, and 14 mm accuracy settings, and real-time laser-bounce filtering to help maintain dependable control on moving equipment.
The CP210-CAN control box processes the receiver signal and commands the hydraulic valve to raise or lower the grading blade. Automatic, manual, and survey operating modes give the operator flexibility during setup, checking, and active leveling.
Blade up/down speed can be adjusted through 80 menu increments to match the hydraulic response of the machine and the requirements of the job.
Built for Demanding Field Conditions

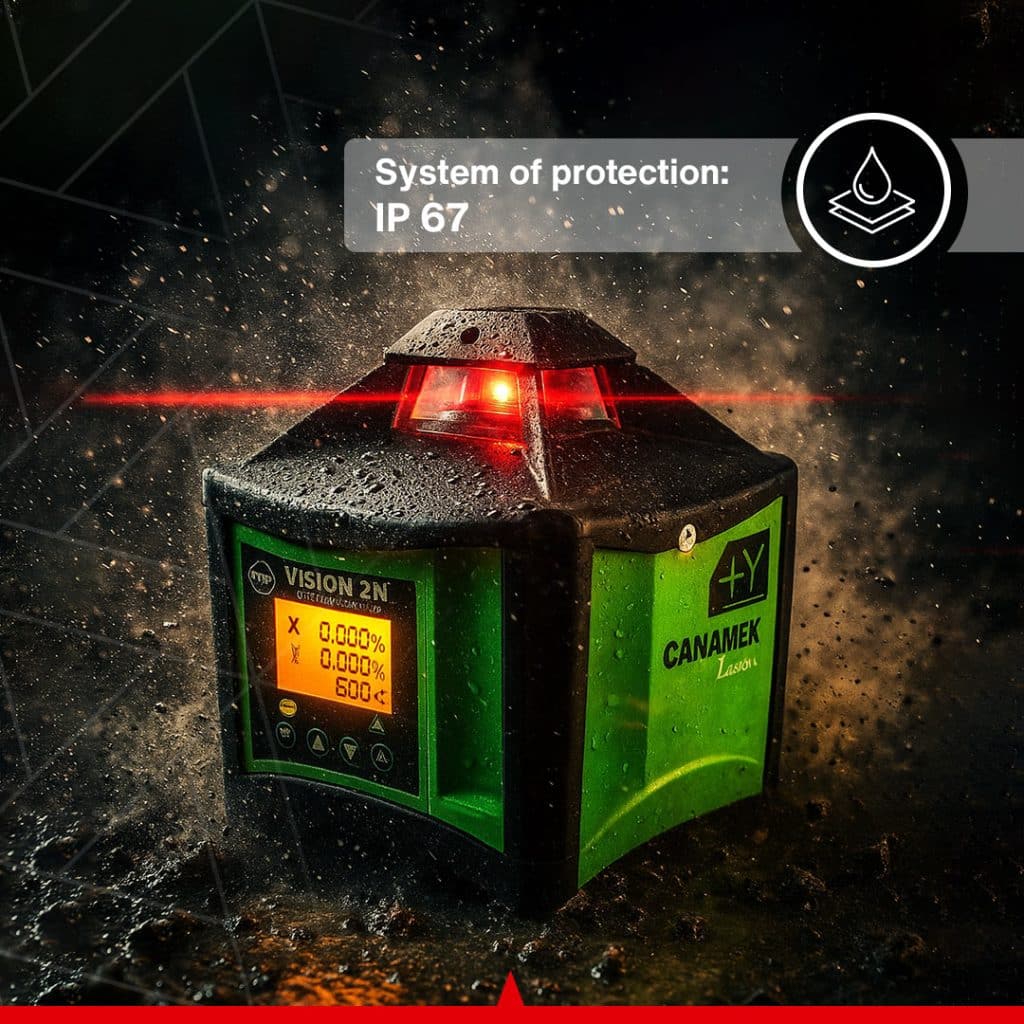

Agricultural grading equipment must remain dependable through dust, moisture, vibration, temperature changes, and long working days. The THEIS transmitter is rated IP67, the MD205-CAN receiver is rated IP68, and the CP210-CAN control box is rated IP66.

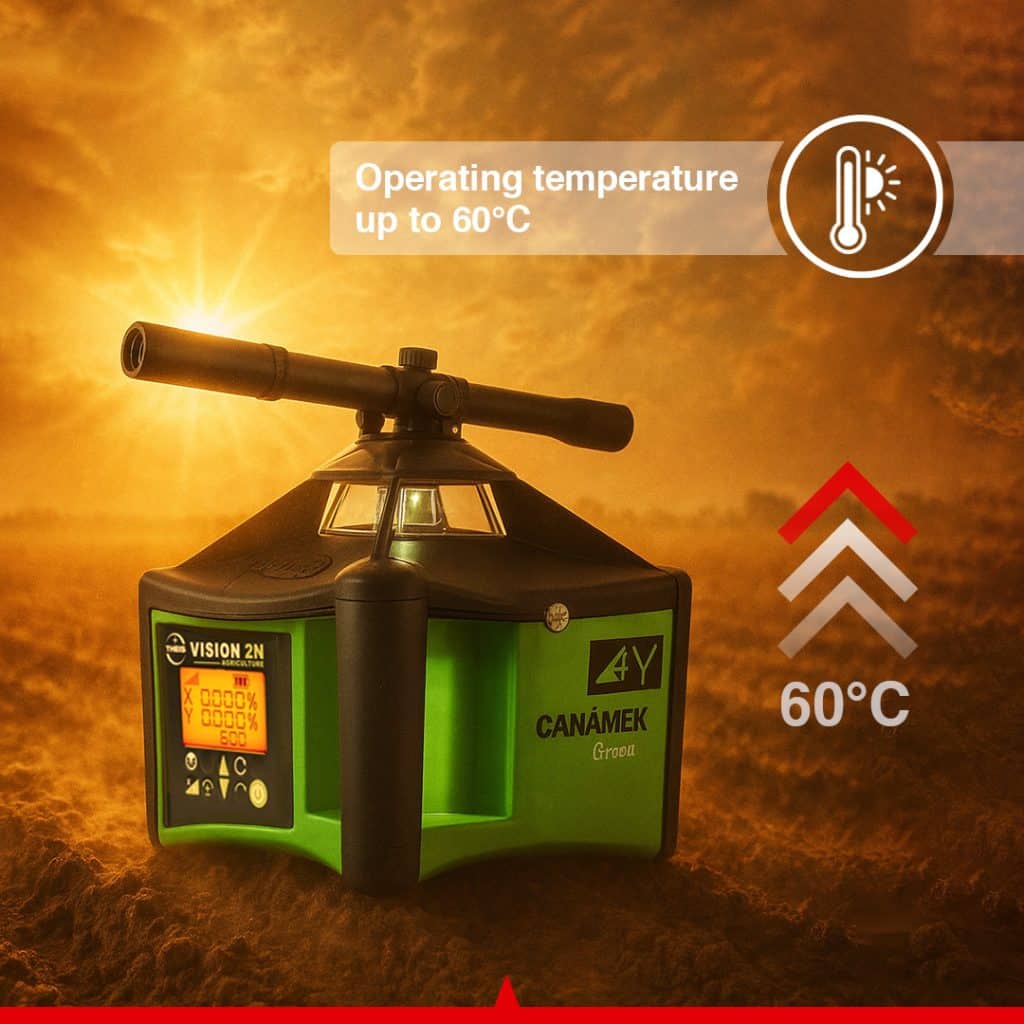

The transmitter operates from −15°C to +60°C, while the CANAMEK receiver and control system operate from −20°C to +60°C.
The package also includes rugged, oil-resistant cables with water- and dust-resistant connectors, a heavy-duty elevating laser tripod, and the required directional solenoid valve, manifold, mounting components, quick-connect valve block, and hoses.
Precision That Supports Better Water Management
A more accurately graded field can help distribute irrigation water more evenly, reduce ponding and dry areas, support controlled surface drainage, and limit unnecessary grading passes.
Because the laser receiver and hydraulic control system continually respond to the reference plane, the operator can maintain the required elevation more consistently than with visual grading alone.
Actual field performance depends on correct setup, calibration, machine condition, hydraulic compatibility, operating technique, and site conditions. CANAMEK can help confirm the correct valve configuration and installation requirements for the intended machine.
Key Benefits
- Complete laser land leveling package with coordinated transmitter, receiver, control box, tripod, cables, and hydraulic components
- Horizontal, single-slope, and dual-slope field grading
- Independent X- and Y-axis grade range up to ±15%
- AutoSlope monitoring and automatic compensation of the laser plane
- TILT protection to prevent grading from a disturbed reference
- Approximate 2,700 ft (800 m) working radius with the included CANAMEK receiver
- Selectable 3, 9, and 14 mm machine-receiver accuracy settings
- Automatic, manual, and survey operating modes
- Adjustable blade response through 80 control increments
- 12–24 V machine-control compatibility
- IP67 transmitter, IP68 receiver, and IP66 control box
- Rechargeable battery operation with alkaline D-cell backup capability
- Heavy-duty 4 m elevating tripod for stable field setup
- CANAMEK after-sales support
Package Components
THEIS Vision 2N Agriculture Transmitter Kit
- THEIS Vision 2N Agriculture dual-slope rotary laser transmitter
- Telescope
- Radio remote control
- Rechargeable NiMH battery
- Battery charger
- 12 V battery cable
- ABS protective carry case
CANAMEK Gold-CAN Machine-Control Kit
- MD205-CAN machine-mounted laser receiver
- M10 receiver knob screw and mechanical mounting clamp
- CP210-CAN control box
- M6 control-box knob screw and mounting bracket
- Machine power cable
- Blade-control cable
- Receiver-to-control-box CAN data cable
- Aluminum carry case
Hydraulic and Field-Setup Components
- 12 V directional solenoid on/off valve
- D03 manifold with relief-valve configuration
- Manifold mounting-bracket kit
- Valve bolt kit
- Quick-connect valve block and hydraulic hoses
- laser tripod
Frequently Asked Questions
What is included in the Laser Land Leveling Complete Starter Package 2?
The package includes the THEIS Vision 2N Agriculture dual-slope laser transmitter kit, a CANAMEK MD205-CAN machine receiver, a CP210-CAN control box, machine and data cables, mounting hardware, a NEDO Giant 4 m elevating tripod, a 12 V directional solenoid valve, a D03 manifold with relief-valve configuration, a quick-connect valve block, hydraulic hoses, and protective carry cases.
What is different from the original Laser Land Leveling Complete Starter Package?
Package 2 replaces the previous NEDO laser transmitter with the THEIS Vision 2N Agriculture dual-slope rotary laser transmitter. The CANAMEK machine receiver, control box, tripod, cables, and hydraulic-control components remain based on the established package configuration.
Can the system create a dual-slope field?
Yes. The THEIS Vision 2N Agriculture can apply independent grades of up to ±15% on both the X and Y axes. It can be used for a level plane, a slope in one direction, or a compound slope in two directions.
What is the working range of the laser transmitter?

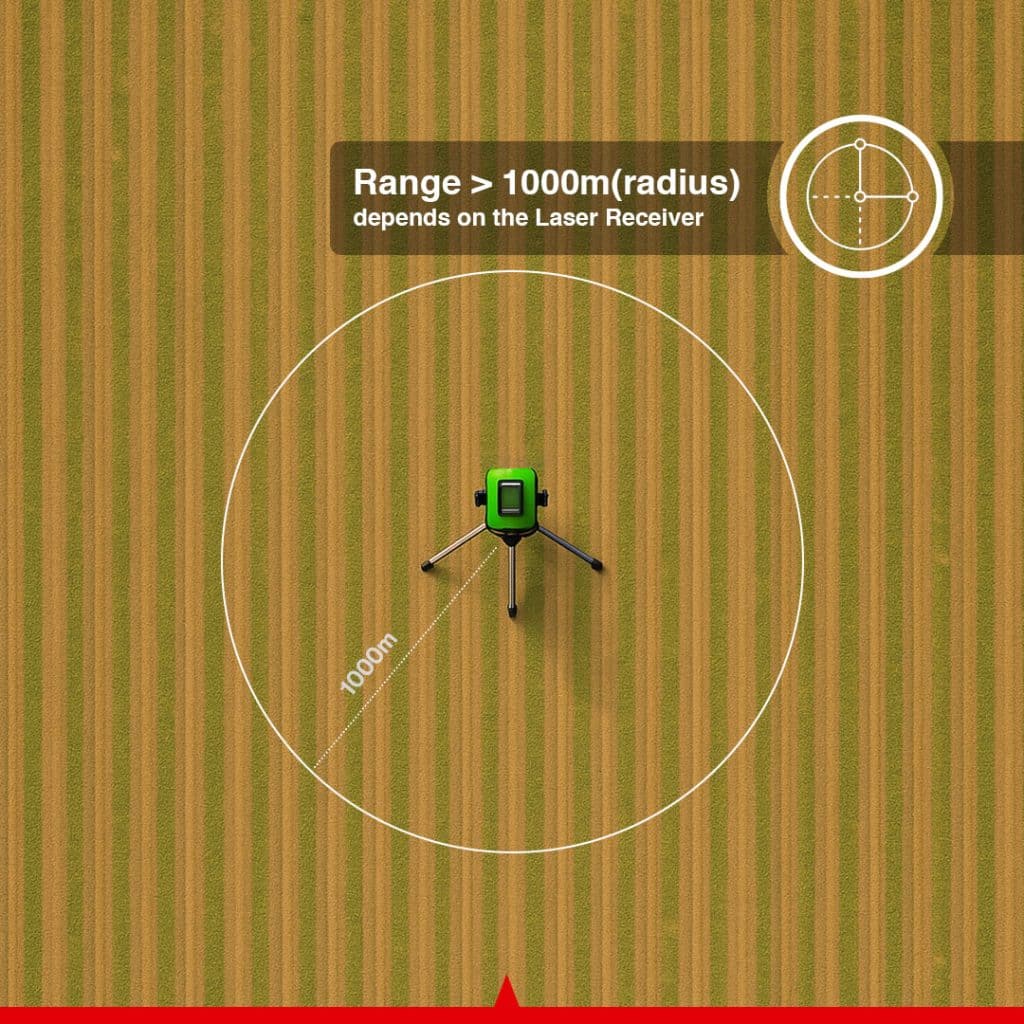

With the included CANAMEK machine receiver, the published working radius is approximately 2,700 ft (800 m). Actual range can vary with receiver height, atmospheric conditions, obstructions, setup, and jobsite conditions.
How accurate is the system?

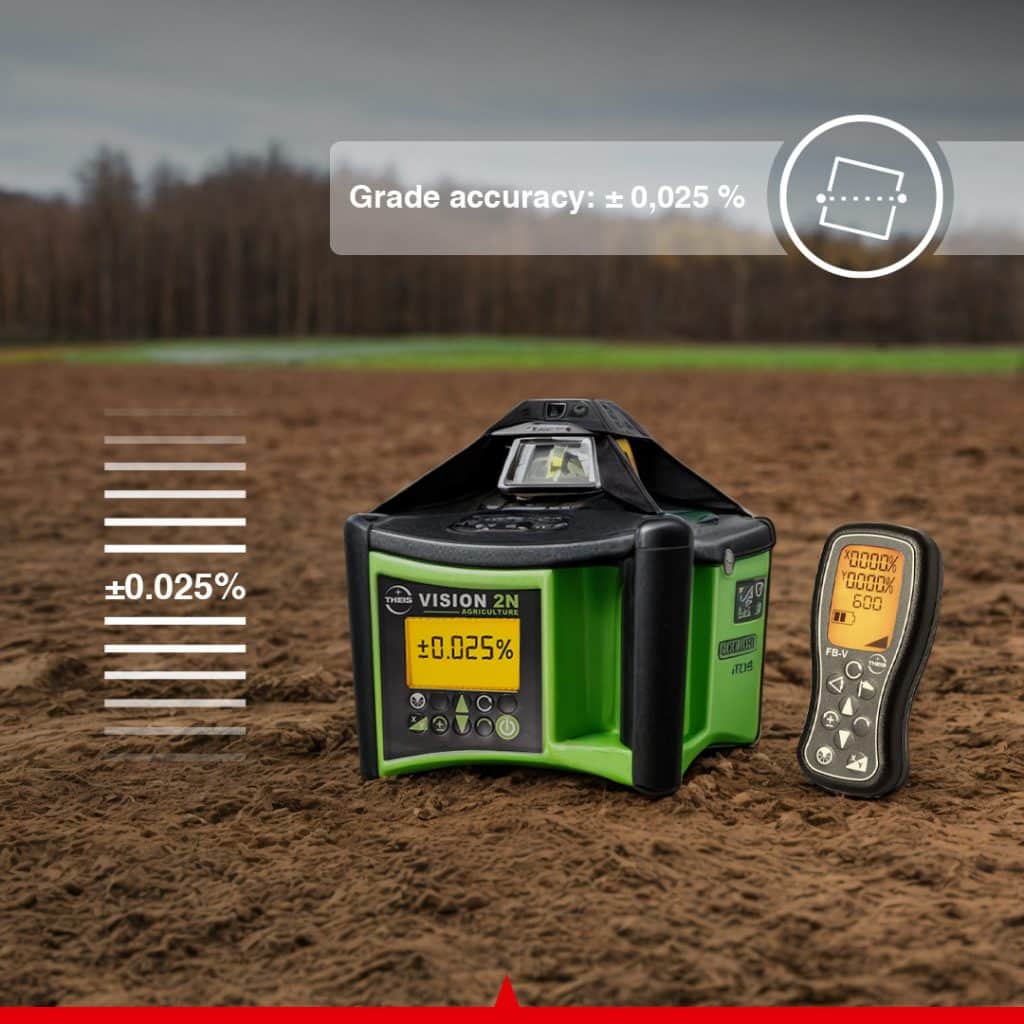

The transmitter has a leveling accuracy of ±1.5 mm at 30 m and a grade accuracy of ±0.025%. The MD205-CAN machine receiver offers selectable 3, 9, and 14 mm accuracy bands so the operator can match control sensitivity to the grading task.
Does the package provide automatic blade control?
Yes. In automatic mode, the machine-mounted receiver detects its position relative to the laser plane, the CP210-CAN control box processes that signal, and the hydraulic valve raises or lowers the blade to maintain the target elevation. Manual and survey modes are also available.
Which machines can use this laser land leveling package?
The system is designed for a wide range of compatible tractors, scrapers, land levelers, grading boxes, and agricultural grading implements. The machine must have a suitable 12–24 V electrical system, a compatible hydraulic circuit, and an appropriate receiver mount. CANAMEK should confirm the valve and installation configuration before ordering.
Is the system suitable for dusty, wet, or hot field conditions?
Yes. The transmitter is rated IP67, the machine receiver IP68, and the control box IP66. The transmitter operates from −15°C to +60°C, while the receiver and control system operate from −20°C to +60°C.
How long does the transmitter battery operate?

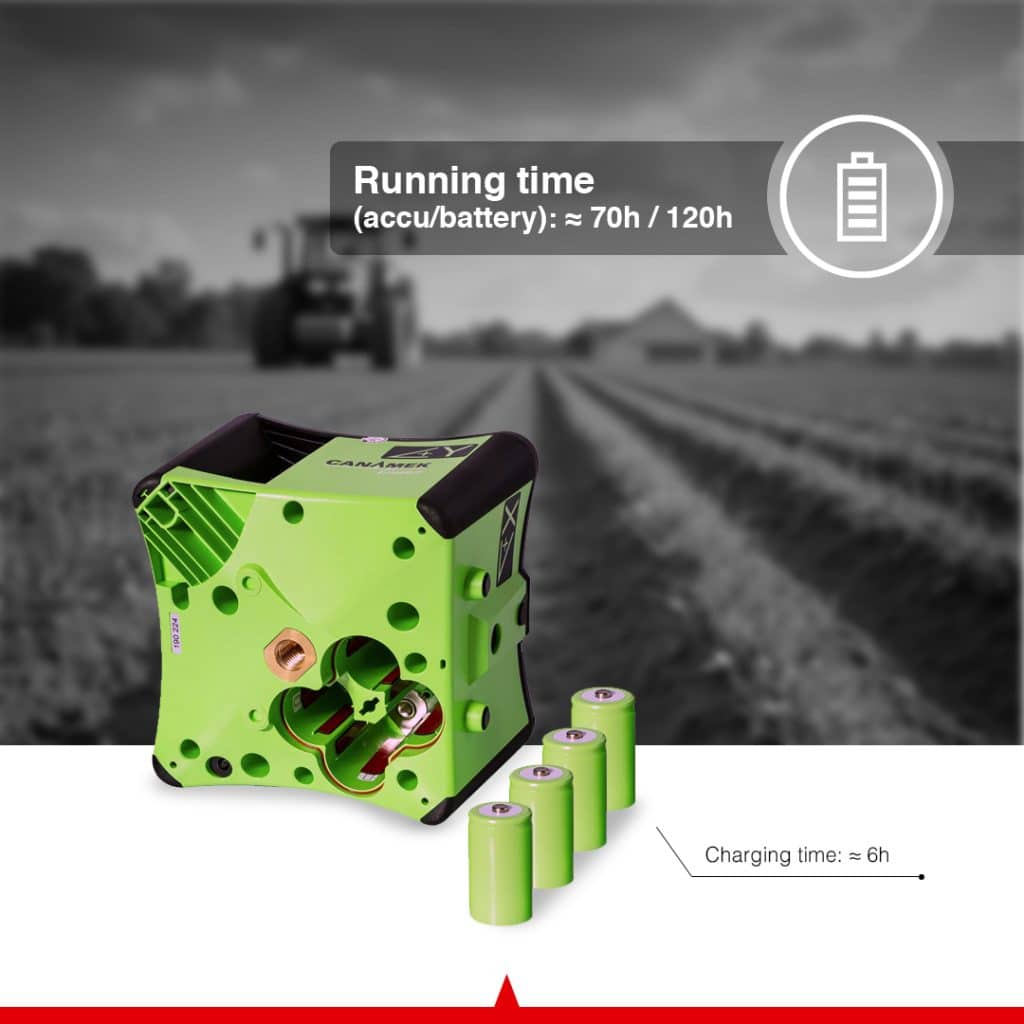

Approximate runtime is 70 hours with the rechargeable NiMH battery and up to 120 hours with alkaline D cells. Approximate charging time for the rechargeable battery is six hours.
Are the telescope and remote control included?
Yes. The THEIS transmitter kit includes a telescope and radio remote control, together with a rechargeable battery, charger, 12 V battery cable, and protective ABS case.
Does the package include a tractor, scraper, or land-leveling implement?
No. The package supplies the laser reference, machine-control, tripod, cable, and hydraulic-control components listed above. The tractor and grading implement are not included unless they are expressly added to the order.
What warranty and support are provided?

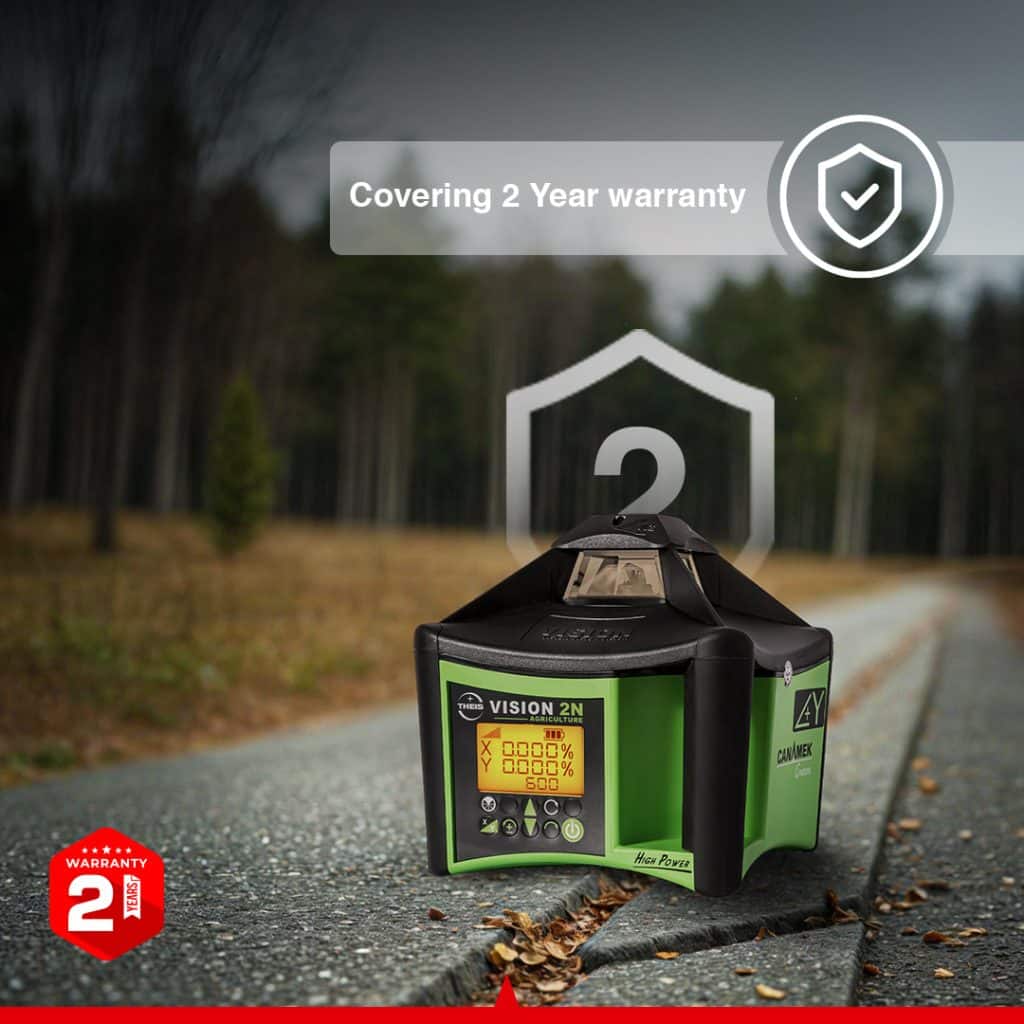

The complete package is offered with CANAMEK’s two-year package warranty and after-sales support. Final coverage can vary by component and order configuration, so the applicable warranty terms should be confirmed on the quotation or order document.
