Laser Land leveling Professional Complete Package

he CANAMEK Laser Land Leveling Professional Complete Package is a complete laser-guided machine control solution for accurate agricultural land leveling, field grading and slope creation.

The package combines the CANAMEK Gold-CAN control system, PM400-CAN Power Mast, hydraulic valve and quick-connect hoses, NEDO PRIMUS 3 H2N dual-slope rotary laser transmitter and a heavy-duty elevating tripod. Together, these components establish a precise laser reference across the jobsite, detect the machine blade’s position and automatically control the hydraulic system to maintain the selected elevation or slope.

Designed for professional contractors, farmers and land improvement operations, this system helps create more uniform field surfaces, improve irrigation distribution, support controlled drainage and reduce repeated manual grade corrections.

How the Laser Land Leveling System Works

The NEDO PRIMUS 3 H2N is installed on the elevating tripod and generates a stable rotating laser plane across the field. The MD205-CAN receiver, mounted on the PM400-CAN Power Mast, detects its position relative to that laser plane.

The CP210-CAN control box processes the receiver data and sends raise or lower commands to the hydraulic valve. The valve then controls the machine’s hydraulic cylinder, automatically adjusting the scraper, grading blade or leveling implement to maintain the selected grade.

The PM400-CAN Power Mast allows the receiver elevation to be adjusted without repeatedly stopping the machine for manual repositioning. This is especially useful when changing cut-and-fill offsets, checking elevations or working across different sections of a field.

Package Components

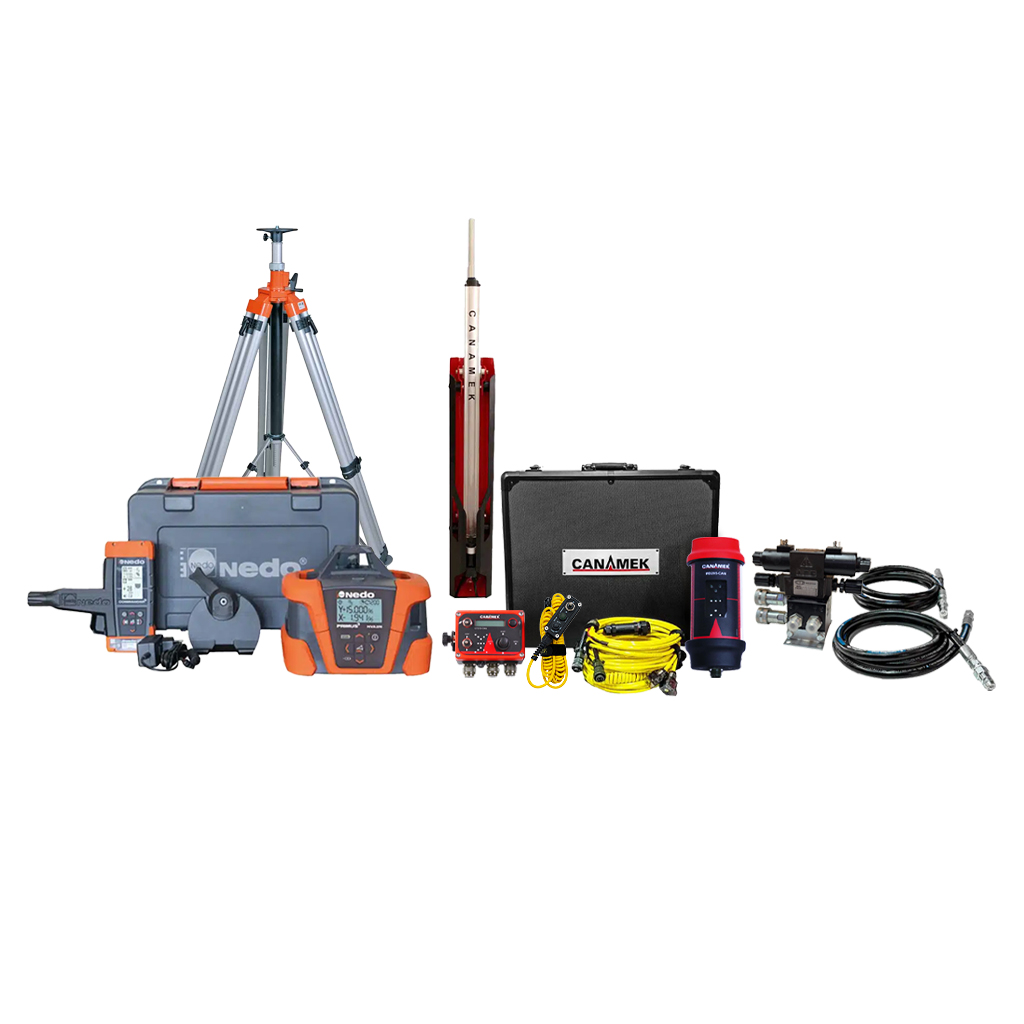

CANAMEK Gold-CAN Laser Control System

The machine-control package includes:

• CP210-CAN Control Box
• MD205-CAN Laser Receiver
• Power Cable
• Blade Cable
• Control and receiver connection cables
• Aluminum Carry Case

The CP210-CAN control box provides selectable accuracy settings, hydraulic blade speed adjustment, remote-switch compatibility, connection-error notifications and short-circuit protection.

The MD205-CAN receiver offers 360-degree laser reception, a 190 mm measurement window, real-time laser bounce filtering and highly visible grade indicators. Red indicates above grade, green indicates on grade and yellow indicates below grade.

PM400-CAN Power Mast

The PM400-CAN Power Mast provides controlled vertical adjustment of the machine-mounted laser receiver. Its digital measurement system helps operators make repeatable elevation changes for grading, surveying and cut-and-fill operations.

Key Power Mast features include:

• 1,000 mm vertical stroke
• Stated accuracy of ±1 mm
• Digital measurement system
• Metric and imperial indication
• Steel body with aluminum components
• 10–24 VDC operating range
• Shock-mounted construction for machine applications

NEDO PRIMUS 3 H2N Dual-Slope Rotary Laser

The NEDO PRIMUS 3 H2N is a fully automatic horizontal dual-slope rotary laser designed for professional grading and machine-control applications.

It supports slope settings of up to ±15% on both the X and Y axes and includes advanced functions such as AutoTarget, FindX and PlaneLock X/Y. These functions help align the slope axes correctly and maintain the selected laser plane during demanding grading operations.

The standard NEDO laser kit includes:

• NEDO PRIMUS 3 H2N rotating laser
• COMMANDER 3 multifunction receiver and remote
• Heavy-duty aluminum rod clamp with MagFix connection
• Quick-Fix 2 tripod attachment system
• Rechargeable Li-ion battery
• Compatible battery charger

Hydraulic Valve and Quick-Connect Hoses

The included hydraulic valve connects the electronic grade-control system to the machine’s hydraulic lift circuit. Based on signals from the CP210-CAN control box, it directs hydraulic flow to raise or lower the grading implement.

The quick-connect valve block and hoses simplify installation, connection and removal. The appropriate valve configuration, relief-valve arrangement, fittings and hose specifications must be selected according to the machine’s hydraulic system.

Heavy-Duty Elevating Tripod

The elevating tripod provides a stable platform for the NEDO PRIMUS 3 transmitter throughout the grading operation.

Its reinforced indirect gear mechanism enables controlled height adjustment while reducing wear on the crank. The double-telescopic column provides a wide adjustment range, while the aluminum construction and additional leg supports improve stability in outdoor working conditions.

Key Technical Specifications

Professional Accuracy with Fewer Manual Adjustments

The combination of automatic hydraulic control and an adjustable Power Mast allows operators to maintain the required grade while reducing repeated stops for receiver repositioning and manual blade correction.

The system can be used to establish flat planes, single slopes or compound dual slopes. This makes it suitable for projects where accurate surface elevation, irrigation performance and predictable drainage are essential.

Machine Compatibility

The package can be configured for tractors, agricultural scrapers, grading blades, box blades, graders and other equipment that uses a compatible hydraulic cylinder to control blade elevation.

Before ordering, the following machine information should be confirmed:

• Electrical system voltage
• Hydraulic valve type
• Hydraulic flow and pressure
• Relief-valve requirements
• Cylinder configuration
• Hose fittings and required lengths
• Receiver and Power Mast mounting locations

Correct configuration and calibration are essential for safe operation and accurate grading results.

Preguntas frecuentes

What is included in the Laser Land Leveling Professional Complete Package?

The package includes the CANAMEK Gold-CAN system with CP210-CAN control box, MD205-CAN machine receiver, required system cables and aluminum carry case; the PM400-CAN Power Mast; a hydraulic valve with quick-connect valve block and hoses; a NEDO PRIMUS 3 H2N laser kit; and a heavy-duty elevating tripod. Final valve, hose, fitting and mounting requirements should be confirmed for the machine before ordering.

How does the automatic laser land leveling system work?

The NEDO transmitter establishes a laser reference plane across the field. The MD205-CAN receiver detects whether the machine blade is above, below or on grade. The CP210-CAN control box processes this information and sends raise or lower commands to the hydraulic valve, which adjusts the blade to maintain the selected grade.

What makes this different from a basic starter package?

The Professional Complete Package adds the PM400-CAN Power Mast and uses the NEDO PRIMUS 3 H2N professional dual-slope laser. This provides powered receiver-height adjustment and advanced laser functions such as AutoTarget, FindX and PlaneLock X/Y.

Is the NEDO PRIMUS 3 H2N a dual-slope laser?

Yes. The NEDO PRIMUS 3 H2N supports slope settings of up to ±15% on both the X and Y axes. It can be used for flat-plane, single-slope and dual-slope grading applications.

What is the working range of the laser system?

The NEDO PRIMUS 3 H2N can provide a working diameter of up to 800 meters when used with CANAMEK machine receivers under suitable conditions. Actual working range may vary according to line of sight, atmospheric conditions, transmitter setup and field layout.

What does the PM400-CAN Power Mast do?

The Power Mast raises or lowers the machine-mounted laser receiver without repeated manual repositioning. It provides a 1,000 mm stroke, digital measurement and stated accuracy of ±1 mm for controlled elevation changes, cut-and-fill offsets and surveying operations.

Which machines are compatible with this package?

The system can be configured for tractors, agricultural scrapers, grading blades, box blades, graders and other machines with a compatible hydraulic blade or elevation-control cylinder. The machine’s electrical system, hydraulic circuit, valve type, fittings and mounting arrangement must be verified before ordering.

Are the hydraulic valve and hoses included?

Yes. The package includes a hydraulic valve, quick-connect valve block and hoses. The appropriate valve configuration, relief-valve option, hose fittings and lengths must be selected to match the machine’s hydraulic system.

Can the system be operated in automatic and manual modes?

Yes. The CANAMEK control system supports automatic, manual and survey operating modes. Automatic mode controls blade elevation through the hydraulic valve, while manual mode allows direct operator control. Survey mode can be used for elevation and grade checking.

Is the package suitable for outdoor agricultural conditions?

The NEDO PRIMUS 3 has an IP67 protection rating, the MD205-CAN receiver is rated IP68 and the CP210-CAN control box is rated IP66. The system cables and connectors are designed to resist water, dust, oil, low temperatures and mechanical stress when properly installed.

Does the system require installation and calibration?

Yes. The Power Mast, receiver, control box, hydraulic valve, cables and hoses must be correctly mounted and connected. The transmitter reference, slope axes, hydraulic direction, blade speed and accuracy settings should be calibrated and tested before production grading begins.
