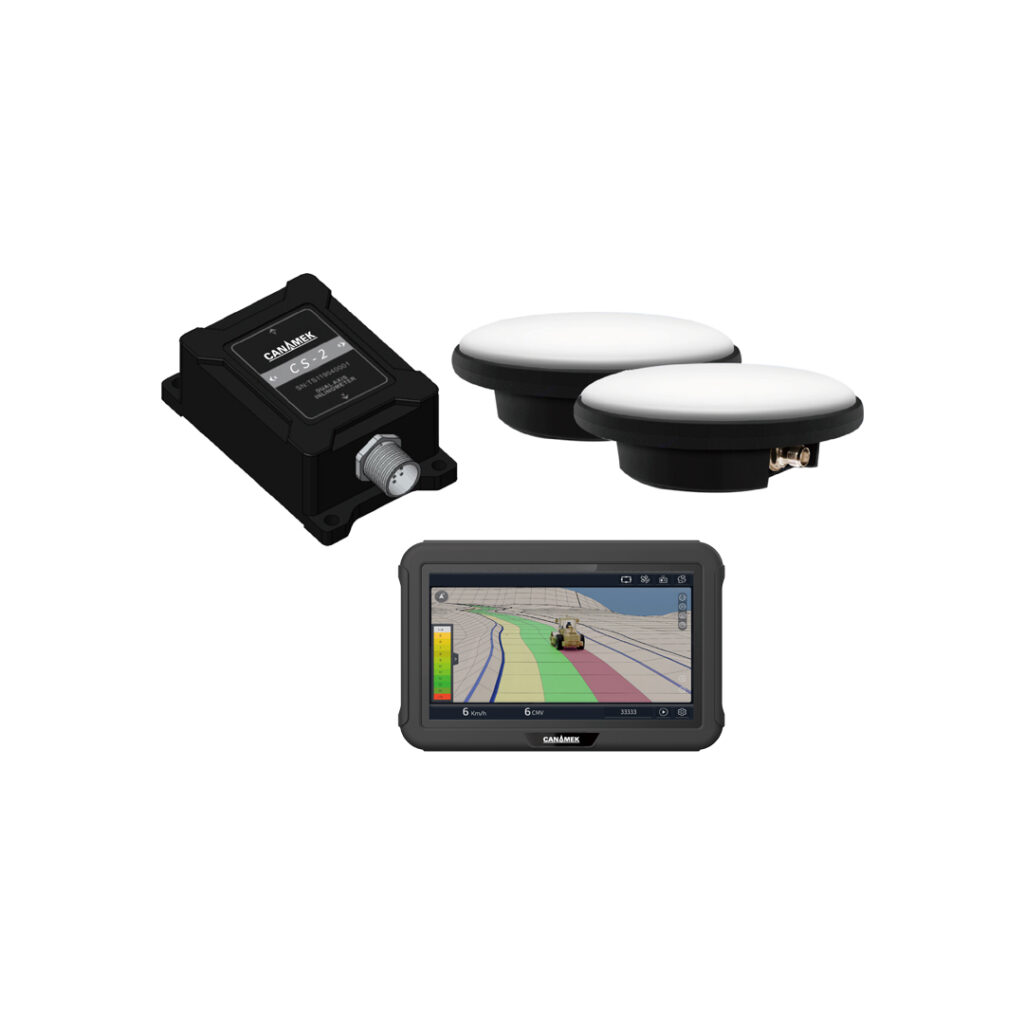

El CANAMEK COMP-Mizer is an advanced GNSS intelligent compaction system designed to improve the accuracy, consistency, and traceability of road roller operations. By integrating high-precision multi-constellation GNSS positioning, vibration-based compaction sensing, non-contact temperature measurement, and a rugged touchscreen control terminal, the system enables operators and project managers to monitor the complete compaction process in real time.
During operation, CANAMEK COMP-Mizer digitally records the roller’s travel trajectory, operating speed, number of passes, vibration status, compaction value, and surface or material temperature. This information is displayed graphically and numerically on the in-cab terminal, enabling operators to identify insufficiently compacted areas, overlapping passes, temperature variations, and other conditions that may affect construction quality.
The system supports RTK positioning with horizontal accuracy of 8 mm + 1 ppm and vertical accuracy of 15 mm + 1 ppm. Its multi-constellation tracking engine supports BDS, GPS, GLONASS, Galileo, and QZSS, while the rugged GNSS antenna also supports IRNSS, SBAS, and L-band signals.
CANAMEK COMP-Mizer can synchronize field information with a digital construction management platform through two-way data transmission. This enables remote progress visualization, multi-site management, quality-control documentation, and the preparation of customized compaction reports. Support for global coordinate libraries, network differential corrections, coordinate transformation parameters, and calibration file import and export simplifies deployment across different projects.

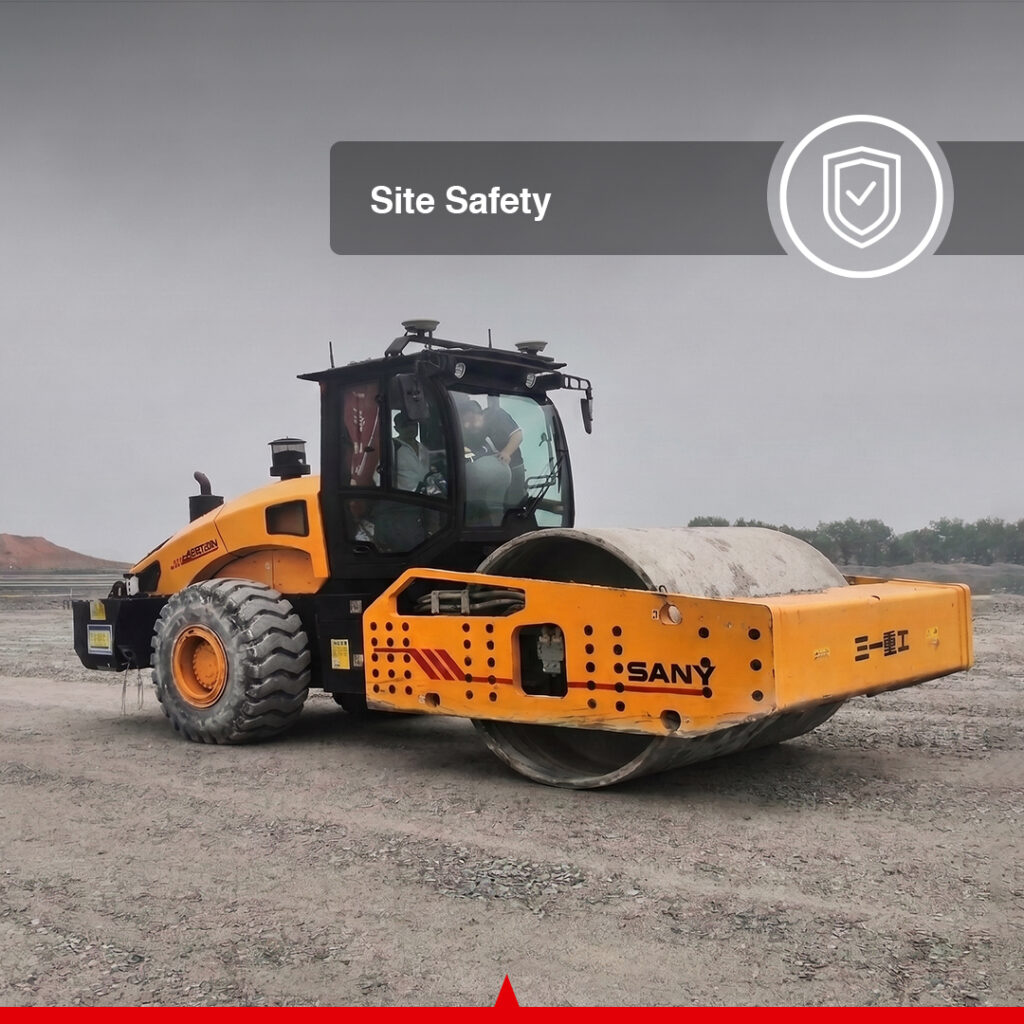

Horizontal guidance lines, navigation functions, audible alerts, electronic geofencing, and danger-zone warnings help operators maintain consistent coverage while improving site safety. The system is suitable for single-drum rollers, tandem rollers, pneumatic or rubber-wheel rollers, and impact roller applications.
CANAMEK COMP-Mizer is a GNSS intelligent compaction system for road rollers. It combines high-precision positioning, vibration-based compaction measurement, temperature monitoring, operator guidance, and digital construction data management.
The system monitors and records the roller’s travel trajectory, operating speed, number of passes, vibration status, compaction value, surface or material temperature, and overall completion status.
In RTK mode, the system provides horizontal positioning accuracy of 8 mm + 1 ppm and vertical positioning accuracy of 15 mm + 1 ppm. Standalone accuracy is 1.5 m horizontally and 2.5 m vertically.

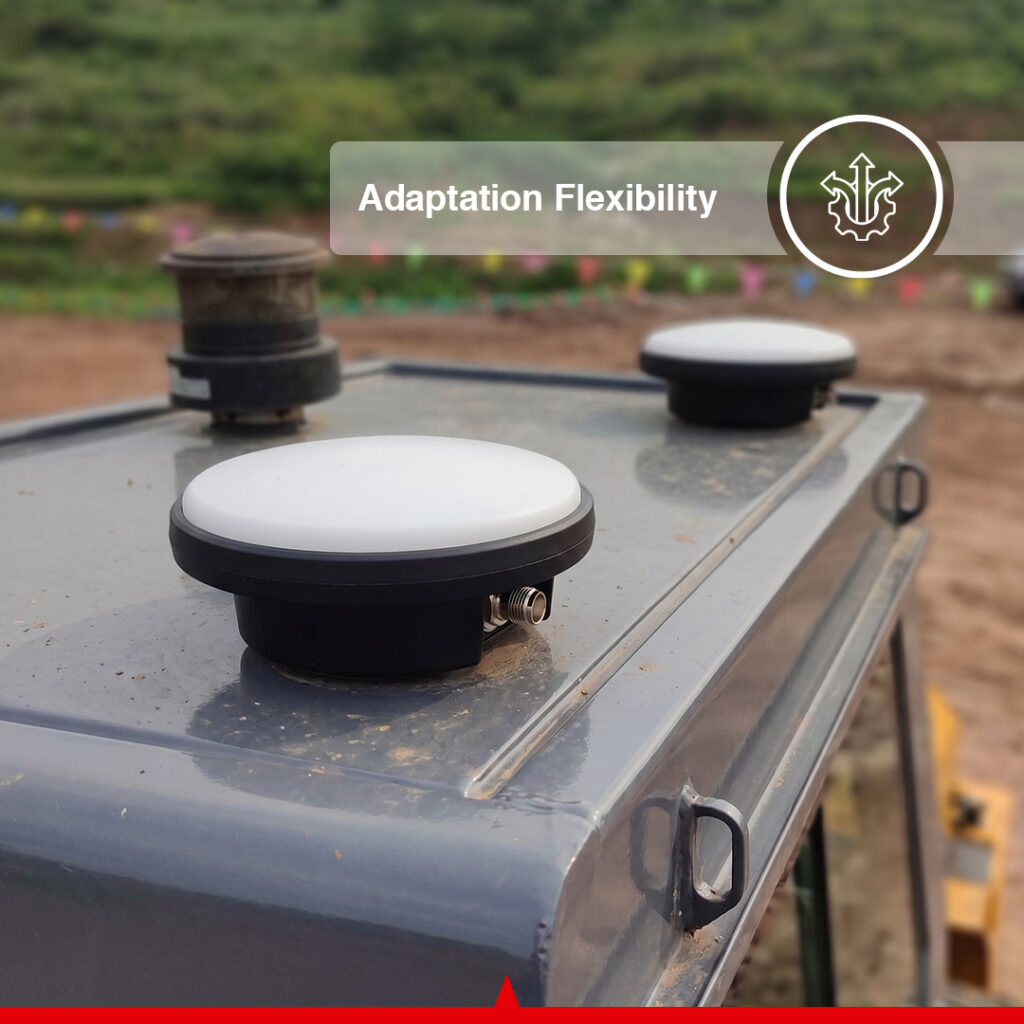

The positioning engine supports BDS, GPS, GLONASS, Galileo, and QZSS. The rugged antenna also supports IRNSS, SBAS, and L-band signals.
Yes. The system can be adapted to single-drum rollers, tandem or double-drum rollers, pneumatic or rubber-wheel rollers, and impact roller applications.
Yes. The MT-2 sensor measures temperatures from 0°C to 300°C, while the CS-3 sensor measures vibration with a peak range of ±50 g and outputs the VCV compaction metric.
Yes. Field data can be synchronized through two-way communication with a digital construction management platform, supporting remote progress visualization, multi-site management, and customized reports.
The control terminal supports Wi-Fi, Ethernet, Bluetooth, serial communication, CAN, and optional 4G/LTE with dual SIM. The GNSS receiver also supports network differential corrections and 410-470 MHz radio communication.
Yes. The display terminal is IP65 rated, operates from -20°C to +70°C, and complies with MIL-STD-810 vibration and ISO 16750 shock standards. The GNSS antenna provides IP69K protection.
CANAMEK COMP-Mizer graphically displays pass coverage, compaction values, temperature, speed, and vibration data. Guidance lines and real-time warnings help operators identify missed or inconsistent areas before the rolling operation is completed.
| Parameter | Especificación |
|---|---|
| Product Name | CANAMEK COMP-Mizer |
| Product Type | GNSS intelligent road roller compaction and quality-management system |
| Primary Measurements | Roller passes, travel speed, trajectory, vibration status, compaction value, and surface or material temperature |
| Positioning Technology | Multi-constellation GNSS with RTK and network differential support |
| Display Method | Real-time graphical and numerical visualization |
| Data Recording | Real-time recording of layered filling and compaction operations |
| Platform Integration | Two-way data transmission to a digital construction management platform |
| Reporting | Supports customized construction and compaction reports |
| Project Management | Multi-project and multi-site management with rapid site switching |
| Coordinate Support | Global coordinate library, RTCM transformation parameters, and coordinate conversion file import/export |
| Operator Assistance | Horizontal guidance line, navigation, status display, audible prompts, and danger warnings |
| Safety Functions | Electronic geofencing and danger-avoidance zones |
| Compatible Machines | Single-drum rollers, tandem rollers, pneumatic or rubber-wheel rollers, and impact rollers |

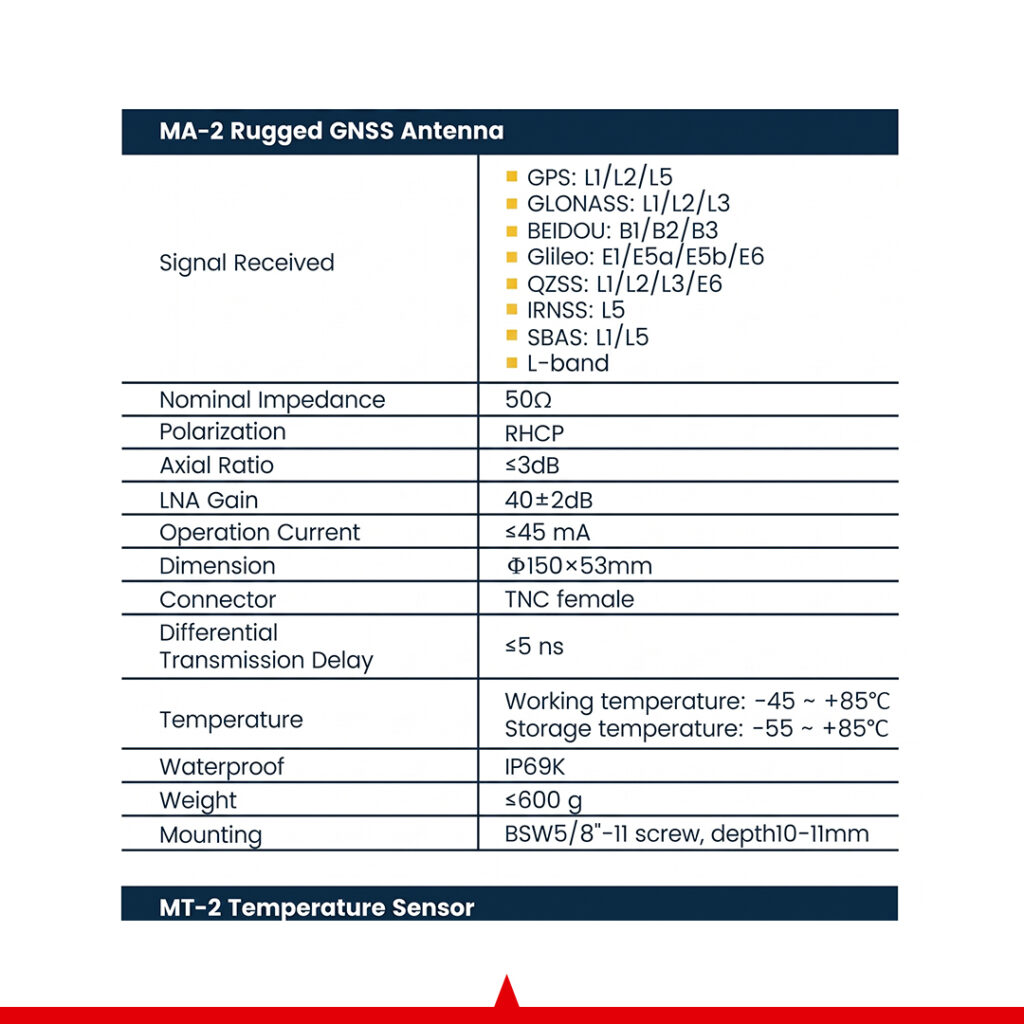

| Parameter | Especificación |
|---|---|
| Supported GPS Signals | L1, L2, L5 |
| Supported GLONASS Signals | L1, L2, L3 |
| Supported BeiDou Signals | B1, B2, B3 |
| Supported Galileo Signals | E1, E5a, E5b, E6 |
| Supported QZSS Signals | L1, L2, L3, E6 |
| Supported IRNSS Signals | L5 |
| Supported SBAS Signals | L1, L5 |
| Additional Signal Support | L-band |
| Nominal Impedance | 50 Ω |
| Polarización | RHCP |
| Axial Ratio | ≤3 dB |
| LNA Gain | 40 ± 2 dB |
| Corriente de operación | ≤45 mA |
| Dimensiones | Ø150 × 53 mm |
| Connector | TNC female |
| Differential Transmission Delay | ≤5 ns |
| Temperatura de operación | -45°C to +85°C |
| Temperatura de almacenamiento | -55°C to +85°C |
| Grado de protección | IP69K |
| Weight | ≤600 g |
| Mounting | BSW 5/8"-11 screw, 10-11 mm depth |

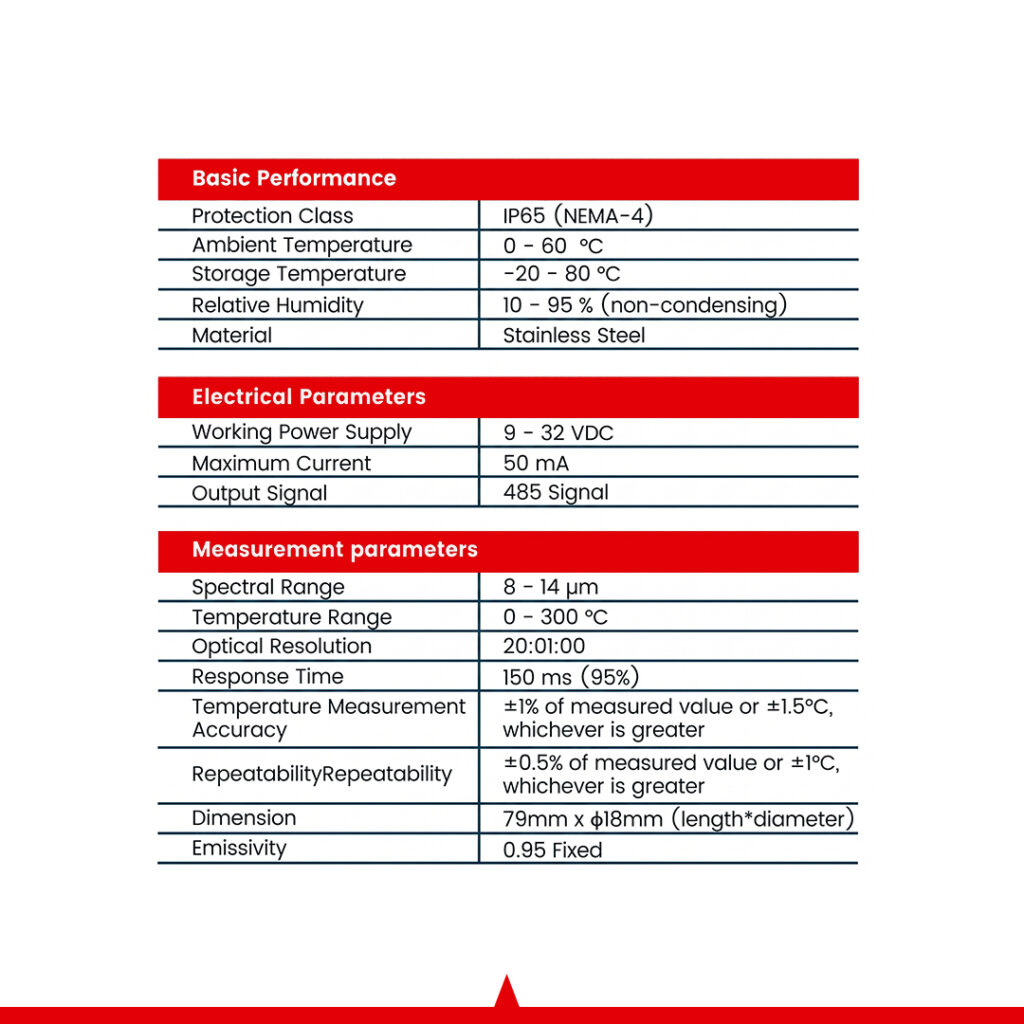

| Category | Parameter | Especificación |
|---|---|---|
| Basic Performance | Protection Class | IP65, NEMA 4 |
| Basic Performance | Ambient Temperature | 0°C to +60°C |
| Basic Performance | Temperatura de almacenamiento | -20°C to +80°C |
| Basic Performance | Humedad relativa | 10-95%, non-condensing |
| Basic Performance | Material | Stainless steel |
| Electrical | Working Power Supply | 9-32 VDC |
| Electrical | Maximum Current | 50 mA |
| Electrical | Output Signal | RS-485 signal |
| Measurement | Spectral Range | 8-14 μm |
| Measurement | Temperature Range | 0°C to +300°C |
| Measurement | Optical Resolution | 20:1 |
| Measurement | Response Time | 150 ms at 95% response |
| Measurement | Temperature Accuracy | ±1% of measured value or ±1.5°C, whichever is greater |
| Measurement | Repeatability | ±0.5% of measured value or ±1°C, whichever is greater |
| Mechanical | Dimensiones | 79 × Ø18 mm, length × diameter |
| Measurement | Emissivity | Fixed at 0.95 |

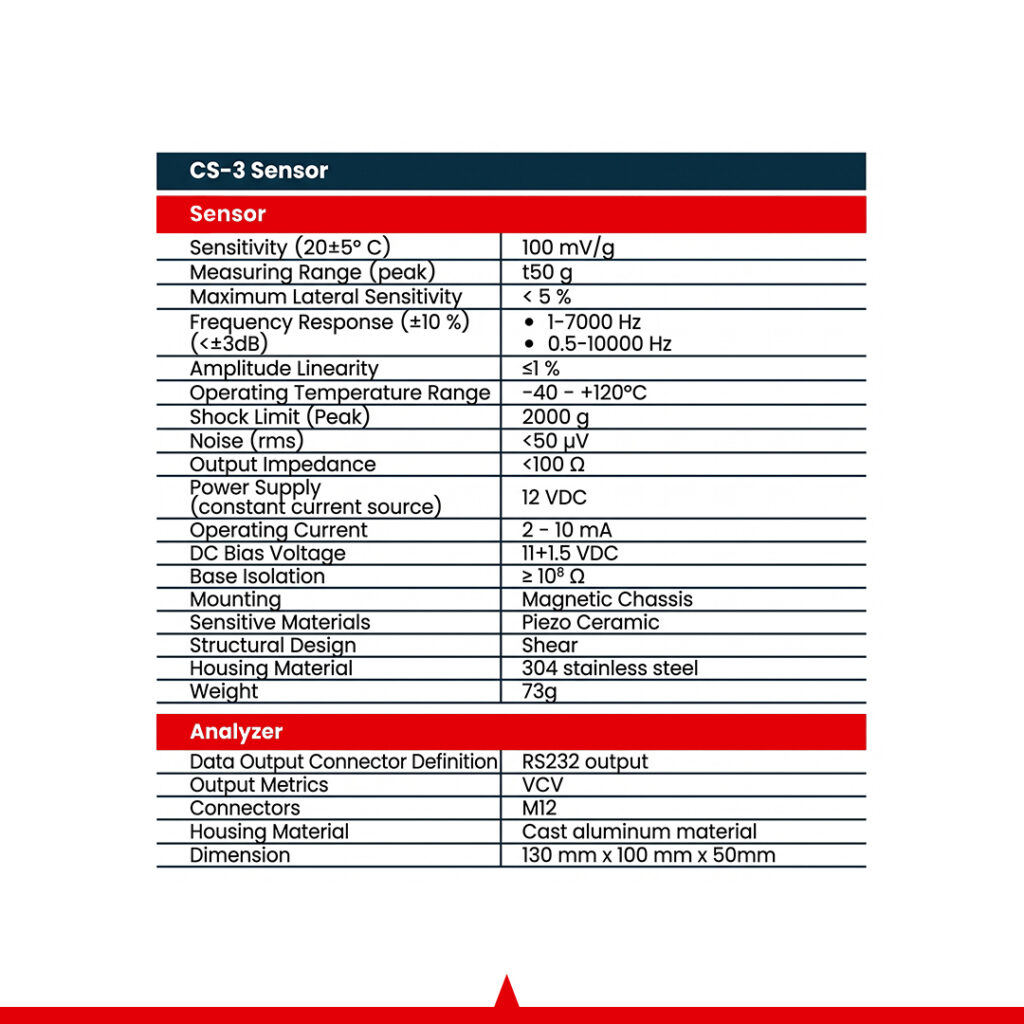

| Category | Parameter | Especificación |
|---|---|---|
| Sensor | Sensitivity at 20 ± 5°C | 100 mV/g |
| Sensor | Measuring Range, Peak | ±50 g |
| Sensor | Maximum Lateral Sensitivity | Less than 5% |
| Sensor | Frequency Response at ±10% | 1-7,000 Hz |
| Sensor | Frequency Response at ±3 dB | 0.5-10,000 Hz |
| Sensor | Amplitude Linearity | ≤1% |
| Sensor | Temperatura de operación | -40°C to +120°C |
| Sensor | Shock Limit, Peak | 2,000 g |
| Sensor | Noise, RMS | Less than 50 μV |
| Sensor | Output Impedance | Less than 100 Ω |
| Sensor | Power Supply | 12 VDC constant-current source |
| Sensor | Corriente de operación | 2-10 mA |
| Sensor | DC Bias Voltage | 11 ± 1.5 VDC |
| Sensor | Base Isolation | ≥10⁸ Ω |
| Sensor | Mounting | Magnetic chassis |
| Sensor | Sensitive Material | Piezoelectric ceramic |
| Sensor | Structural Design | Shear |
| Sensor | Housing Material | 304 stainless steel |
| Sensor | Weight | 73 g |
| Analyzer | Data Output | RS-232 |
| Analyzer | Output Metric | VCV |
| Analyzer | Connector | M12 |
| Analyzer | Housing Material | Cast aluminum |
| Analyzer | Dimensiones | 130 × 100 × 50 mm |
| Category | Parameter | Especificación |
|---|---|---|
| Processing | GPU | 8 cores with OpenGL ES 3.1 support |
| Processing | Operating System | Android 9.0 |
| Memoria | RAM | 2 GB; optional 4 GB |
| Storage | Almacenamiento interno | 16 GB ROM; optional 64 GB |
| Storage | Expandable Storage | TF card support up to 256 GB |
| Visualizar | Screen | 10.1-inch TFT LCD |
| Visualizar | Resolución | 1024 × 600 |
| Visualizar | Brightness | 750 cd/m² |
| Visualizar | Touch Panel | Capacitive, five-finger touch |
| Communications | Wi-Fi | 2.4/5.8 GHz, IEEE 802.11 a/b/g/n/ac |
| Communications | Wi-Fi Hotspot | Supported |
| Communications | Ethernet and 4G | Simultaneous online operation supported |
| Communications | Bluetooth | BT 2.1 + EDR, 3.0, 4.1 LE, and 4.2 BLE |
| Communications | Cellular | 4G/LTE; dual SIM optional |
| Communications | Integrated GNSS | GPS, BDS, and GLONASS |
| Communications | Positioning Board | Optional centimeter-level positioning board |
| Communications | Inertial Module | Optional |
| Audio | Microphone | Optional built-in microphone |
| Audio | Speaker | Built-in |
| I/O | RS-232 | 2 ports |
| I/O | RS-485 | 1 port |
| I/O | CAN | 250K/500K CAN, 1 or 2 channels; supports J1939, CANopen, and ISO 15765 |
| I/O | Digital Input/Output | 2 digital inputs and 2 digital outputs |
| I/O | USB | 1 × USB 2.0 |
| I/O | Camera Inputs | 4 × 720p or 2 × 1080p AHD camera inputs |
| I/O | External Power Outputs | 2 × 12 VDC |
| I/O | Ethernet | 1 port |
| Power | Input | 9-36 VDC |
| Power | Ignition Detection | Supported |
| Environmental | Water and Dust Protection | IP65 |
| Environmental | Vibration Standard | MIL-STD-810 |
| Environmental | Shock Standard | ISO 16750 |
| Environmental | Humidity Resistance | 95%, non-condensing |
| Environmental | Temperatura de operación | -20°C to +70°C |
| Environmental | Temperatura de almacenamiento | -40°C to +85°C |
| Mechanical | Dimensiones | 281 × 181 × 42 mm |
| Mechanical | Weight | 1.5 kg |
| Controls | Function Buttons | 1 power button and 2 customizable function buttons |
| Connectors | Conector principal | Industrial-grade waterproof connector |
| Connectors | SMA | 2 female connectors for GNSS and 4G |
| Connectors | TNC | 2 female GNSS connectors |
| Parameter | Especificación |
|---|---|
| Number of Channels | 1,408 channels based on NebulasIV |
| Initialization Time | Less than 5 seconds, typical |
| BeiDou Tracking | B1I, B2I, B3I, B1C, B2a, B2b |
| GPS Tracking | L1 C/A, L1C, L2P(Y), L2C, L5 |
| GLONASS Tracking | L1, L2 |
| Galileo Tracking | E1, E5a, E5b, E6 |
| QZSS Tracking | L1, L2, L5, L6 |
| Initialization Reliability | Greater than 99.9% |
| Differential Formats | RTCM 3.3, 3.2, 3.1, and 3.0 |
| Data Formats | NMEA 0183 and Unicore |
| Observation Data Update Rate | 20 Hz |
| Positioning Data Update Rate | 20 Hz |
| Orientation Precision, RMS | 0.2°/1 m |
| Timing Accuracy, RMS | 10 ns |
| Velocity Accuracy, RMS | 0.03 m/s |
| RTK Horizontal Accuracy, RMS | 8 mm + 1 ppm |
| RTK Vertical Accuracy, RMS | 15 mm + 1 ppm |
| Standalone Horizontal Accuracy | 1.5 m |
| Standalone Vertical Accuracy | 2.5 m |
| Code Observation Accuracy | 10 cm for the specified BDS, GPS, GLONASS, and Galileo signals |
| Carrier-Phase Observation Accuracy | 1 mm for the specified BDS, GPS, GLONASS, and Galileo signals |
| Cold-Start Time to First Fix | Less than 10 seconds |
| Recapture Time | Less than 1 second |
| Radio Frequency Range | 410-470 MHz |
| Radio Air Baud Rate | 19,200 or 9,600 |
| Supported Radio Protocols | TRIMTALK, TRIMMK3, TRANSEOT, SOUTH, and SATEL |

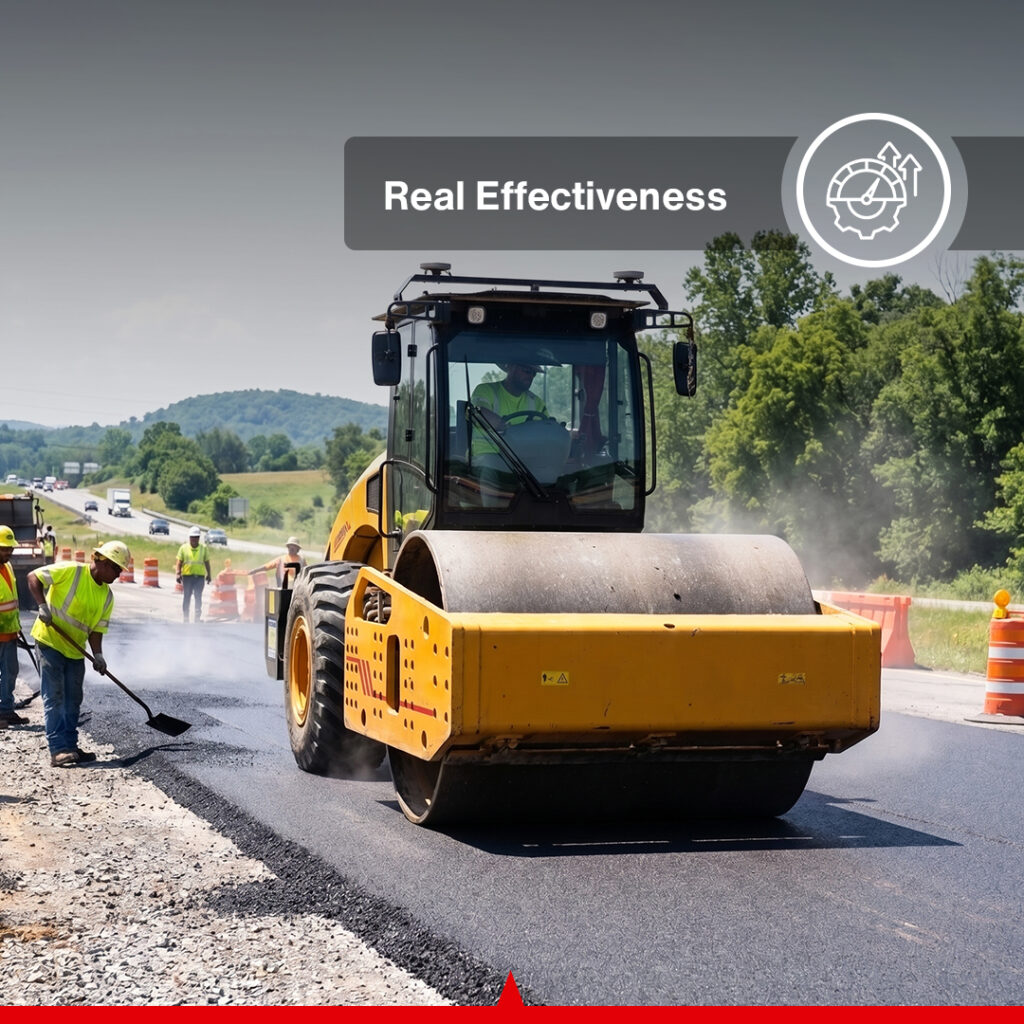

CANAMEK COMP-Mizer enables contractors to monitor roller coverage, travel speed, compaction values, vibration, and temperature during highway and road construction. Real-time guidance helps operators maintain consistent coverage and reduces the risk of missed or excessively compacted areas.
The integrated non-contact temperature sensor measures temperatures from 0°C to 300°C, allowing operators to monitor material temperature during rolling. Combining temperature information with pass count and compaction measurements supports more consistent asphalt compaction.
The system can document layered subgrade and base-course compaction by recording the roller trajectory, number of passes, and measured compaction values. This information supports inspection, quality assurance, and project acceptance processes.
For large-scale layered earth-and-rock filling, CANAMEK COMP-Mizer provides digital records of each rolling operation. It is suitable for dams, embankments, industrial platforms, and other projects requiring controlled layered compaction.
The system can be used during railway subgrade and embankment construction to improve compaction uniformity and provide traceable data for quality-control documentation.
Centimeter-level positioning, multi-layer data recording, and multi-site management make the system suitable for dam foundations, embankments, levees, and other large earthwork projects.
CANAMEK COMP-Mizer can support compaction operations for port access roads, container yards, reclaimed land, harbor facilities, and heavy-duty pavement areas.
Project managers can manage multiple projects and sites, remotely review field progress, and use synchronized data to prepare customized reports. This improves visibility across distributed construction operations.

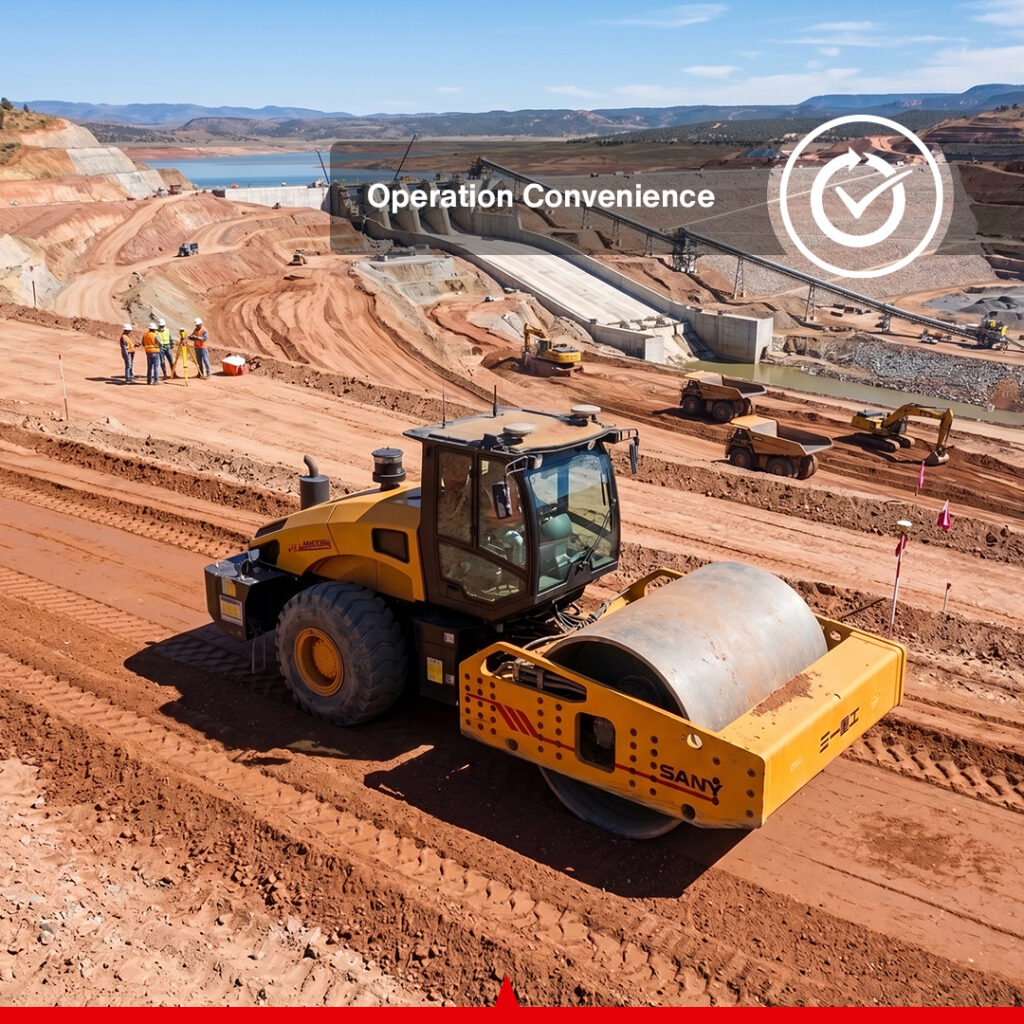

Horizontal guidance, navigation, global coordinate support, and electronic geofencing reduce dependence on physical stakes and manual marking. Operators can follow digital boundaries and guidance lines directly from the in-cab display.
Recorded pass counts, positioning data, temperature measurements, and compaction values provide a traceable digital record for inspection, project documentation, and construction quality management.
